Ad v ance – Mallory Ignition Mallory 4-STAGE RETARD CONTROL 678 User Manual
Page 4
4
www.mrgasket.com
MALLORY IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP
10601 MEMPHIS AVE. #12, CLEVELAND, OH 44144
216.688.8300
FAX 216.688.8306
FORM 1520
(REV. B) 09/03
Made in U.S.A.
Printed in U.S.A.

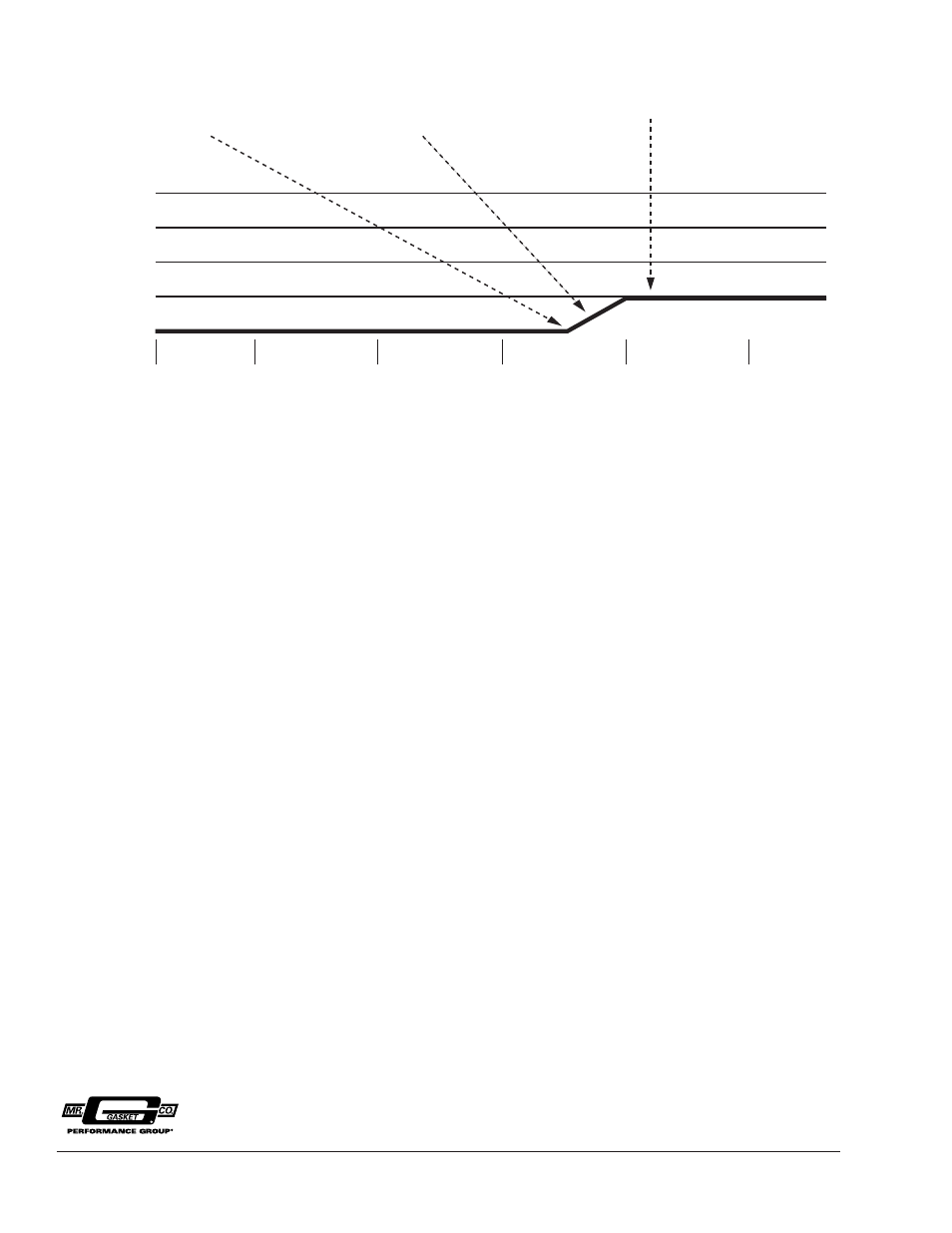

EXAMPLE 6: High Speed Advance Curve
(Modes 8 and 9).
CUT-IN (Mode 9)
This is the RPM where the timing
starts to advance. This example
shows a cut-in of 7.0 (7000 RPM).
SLOPE (Mode 8)
This is how much the timing advances for
every 1000 RPM. This example shows a
slope of 2.0 (2 degrees per 1000 RPM).
MAXIMUM ADVANCE (Mode A)
This example shows a maximum of 2
degrees advance.
8
6
4
2
0
AD
V
ANCE
0
4000
6000
2000
10k
8000
