Mallory Ignition Mallory 4-STAGE RETARD CONTROL 678 User Manual
Page 3
3
MALLORY IGNITION
www.mrgasket.com

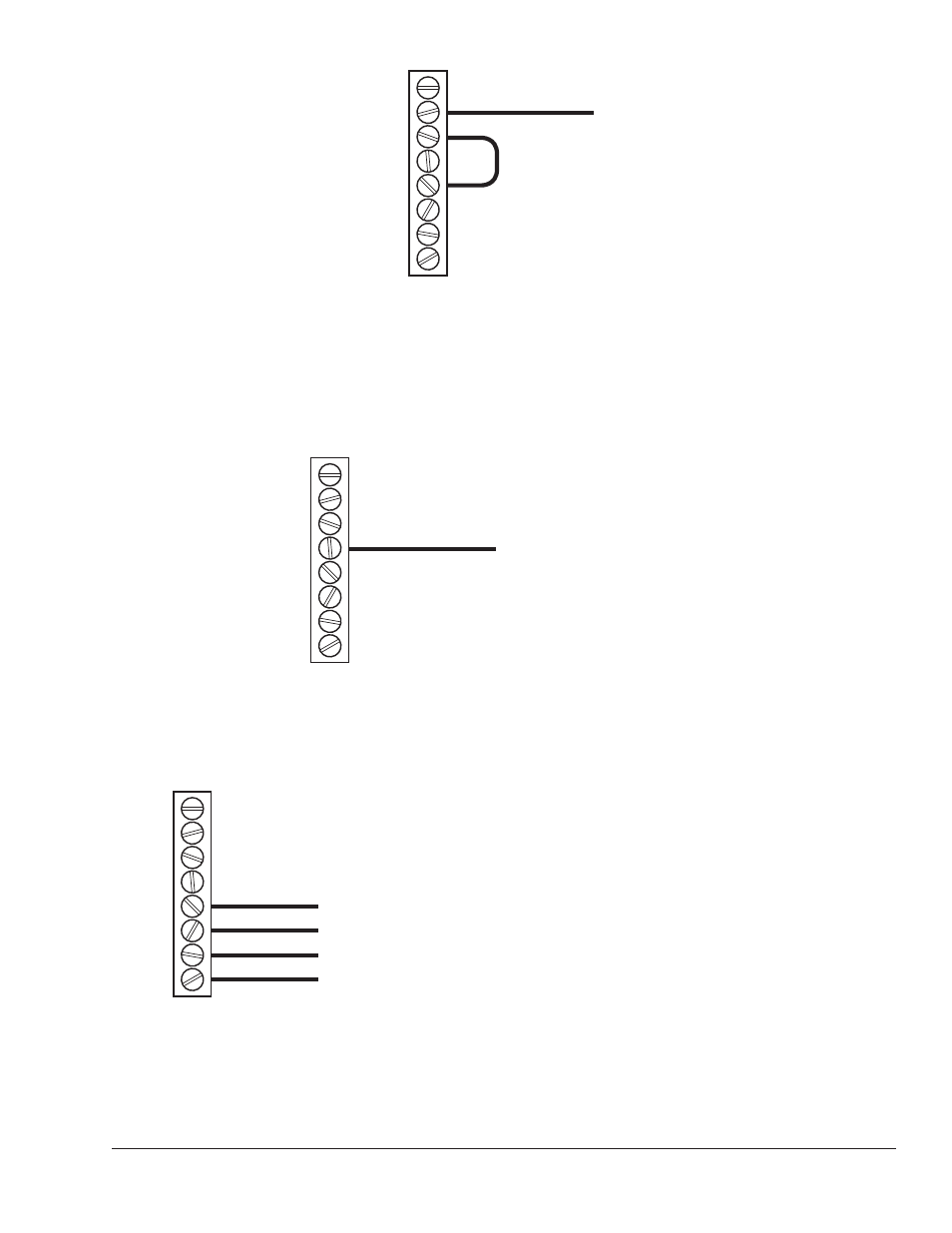

EXAMPLE 3: Using the RPM switch to activate
a retard stage at a particular RPM.
EXAMPLE 4: Staging RPM Limiter (Mode 2).
EXAMPLE 5: Using the high-speed timing retard
function with a 3-stage nitrous system.
NC
N
NO
RPM2
RET1
RET2
RET3
RET4
To +12 Volts
NC
N
NO
RPM2
RET1
RET2
RET3
RET4
To clutch pedal or transbrake switch that
supplies +12 volts when active.
To nitrous stage 2 (+12 volts when active, overrides RET1)
To nitrous stage 1 (+12 volts when active)
To nitrous stage 3 (+12 volts when active, overrides RET1, RET2)
To nitrous stage 4 (+12 volts when active, overrides RET1, RET2, RET3)
NC
N
NO
RPM2
RET1
RET2
RET3
RET4
