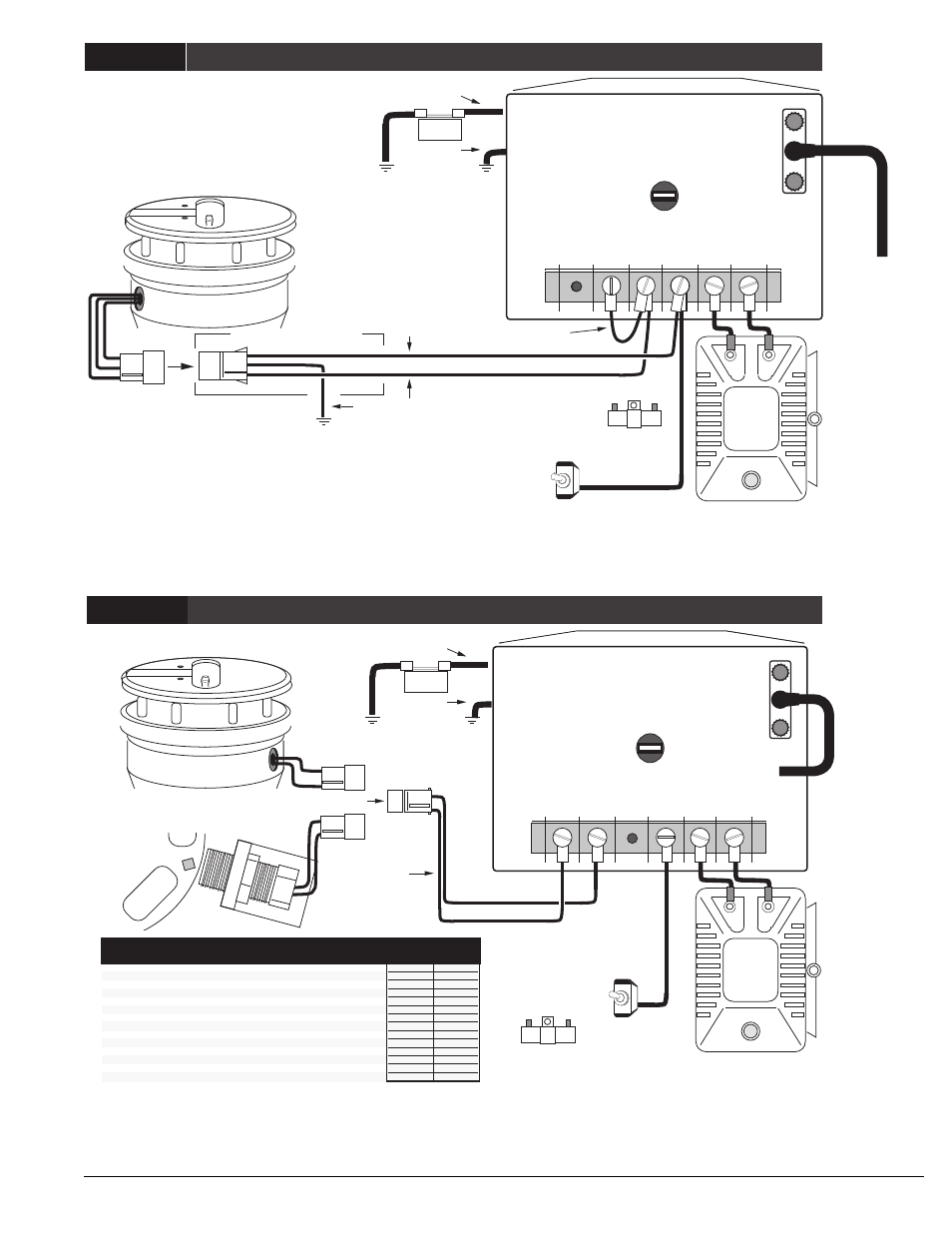

HYFIRE ® VII C PRO CD
IGNITION CONTROL
MAGNETIC PICKUP POINTS +12V COIL
(REAR PANEL)
TACH
JUMPER
WIRE
12V / IGNITION
SWITCH
ENGINE OR
CHASSIS GROUND
BROWN
RED
IGNITION
MODULE
FEMALE
CONNECTOR
GREEN
DISTRIBUTOR WIRE HARNESS
PART NO. 29349
ENGINE OR
CHASSIS
GROUND
ENGINE OR
CHASSIS
GROUND
HEAVY BLACK
(REAR
PANEL)
HEAVY RED
+
-
MALLOR
Y
PR
OMASTER®
COIL
P
AR
T NO
. 28880
(-) (+)
12V/BATTERY
HOOKUP HOOKUP T TO A MALLOR O A MALLORY UNILITE® IGNITION, Y UNILITE® IGNITION, MA MAGNETIC BREAKERLESS IGNITION OR ELECTR GNETIC BREAKERLESS IGNITION OR ELECTRONIC ONIC
AD ADV VANCE IGNITION (THREE ANCE IGNITION (THREE WIRE: WIRE: RED RED,, BR BRO OWN, WN, GREEN) GREEN)
Figure 2 Figure 2
YOU MUST USE Mallory
PROMASTER® Coil Part No.
28880 with this ignition system
YOU MUST USE suppression type
spark plug wire (carbon core, spiral
core) to help prevent false
triggering and premature ignition
or accessory failures. DO NOT USE
solid core (copper core, stainless
steel core) spark plug wire .
IGNITION BALLAST RESISTOR
AN IGNITION BALLAST RESISTOR IS NOT
REQUIRED FOR PROPER OPERATION OF THE
HYFIRE
® VIIC. IF ONE IS ALREADY INSTALLED,
DO NOT REMOVE IT. IF A BALLAST RESISTOR
IS NOT INSTALLED, DO NOT ADD ONE.
TO HYFIRE ® VIIC
IGNITION CONTROL
TO HYFIRE ® VIIC
IGNITION CONTROL
12V / IGNITION
SWITCH
+
-
MALLOR
Y
PR
OMASTER®
COIL
P
AR
T NO
. 28880
MAGNETIC PICKUP DISTRIBUTOR OR CRANK TRIGGER IGNITION
MA MAG+ G+
MALLORY BILLET COMPETITION DISTRIBUTOR SERIES NOS. 81 AND 84 ORANGE PURPLE
MALLORY C0MP 9000® SERIES NOS. 96-99 ORANGE PURPLE
MALLORY CRANK TRIGGER OR WIRE HARNESS PART NO. 29787 PURPLE GREEN
MALLORY DISTRIBUTOR WIRE HARNESS PART NO. 29788 ORANGE PURPLE
MALLORY HARNESS PART NO. 29040 RED BLACK
MSD™ CRANK TRIGGER OR WIRE HARNESS PART NOS. 8859 OR 8860 PURPLE GREEN
MSD™ CRANK TRIGGER (OLD STYLE) ORANGE BLACK
MSD™ DISTRIBUTOR ORANGE PURPLE
MOROSO™ CRANK TRIGGER BLACK WHITE
MOROSO™ DISTRIBUTOR ORANGE PURPLE
ACCEL® CRANK TRIGGER BLACK WHITE
CHRYSLER ELECTRONIC DISTRIBUTOR (NON-COMPUTER) ORANGE BLACK
FORD DURASPARK DISTRIBUTOR (NON-COMPUTER) ORANGE PURPLE
GM/DELCO HEI DISTRIBUTOR (NON-COMPUTER) WHITE GREEN
HOOKUP HOOKUP T TO A MA O A MAGNETIC PICKUP DISTRIB GNETIC PICKUP DISTRIBUT UTOR OR CRANK OR OR CRANK TRIGGER TRIGGER Figure 3 Figure 3
MA MAG– G–
MA MAGNETIC PICKUP DISTRIB GNETIC PICKUP DISTRIBUT UTOR OR OR OR
CRANK CRANK TRIGGER TRIGGER WIRE COLORS WIRE COLORS
YOU MUST USE Mallory
PROMASTER® Coil Part
N o . 2 8 8 8 0 w i t h t h i s
ignition system
TWIST WIRES
TOGETHER TO
REDUCE EMI
IGNITION BALLAST RESISTOR
AN IGNITION BALLAST RESISTOR IS
NOT REQUIRED FOR PROPER
OPERATION OF THE HYFIRE
® VIIC.
IF ONE IS ALREADY INSTALLED, DO
NOT REMOVE IT. IF A BALLAST
RESISTOR IS NOT INSTALLED, DO
NOT ADD ONE.
ENGINE OR
CHASSIS
GROUND
ENGINE OR
CHASSIS
GROUND
HEAVY BLACK
(REAR
PANEL)
HEAVY RED
(-) (+)
12V/BATTERY
– + – +
HYFIRE ® VII C PRO CD
IGNITION CONTROL
MAGNETIC PICKUP POINTS +12V COIL
(REAR PANEL)
TACH
NOTE: The Ignition
Control MUST be
connected for the
ignition to work.
NOTE: The Ignition
Control MUST be
connected for the
ignition to work.
