2/ Secure and connect the blue heated pump inlet hose to the heated resin day tank.
3/ Connect the recirculation black hose and sample valve with fitting to the heated Day tank
Top recirculation fitting.
4/ Route and connect the outlet hose with MPG and electronic pressure sensor to resin
injection point.
Pre heating system .
It is recommended that the machine fluid system is preheated to near working
temperature prior to filling with heated resin. Proceed therefore to recirculate hot
water throughout the machine hot water temperature control fluid section for 5
minutes.
Once preheated, commence to prime the resin fluid sections by operating ( push in)
the fascia recirculation push button. Note at any time the red pump stop button can
be operated to cancel this command.
It is important to run the machine as slow as possible to begin with to prevent pump
cavitation. A pump speed regulator setting of between 1 and 2 bar should be
sufficient
It is highly recommended that the single component resin is recirculated for at least
20 minutes to be sure the entire resin fluid section is thermally soaked and is all up to
temperature (circa 80C)
During this initial priming stage it is important to pour a small amount of single
component resin in to the pump top seal cup to act as a pump shaft lubricant.

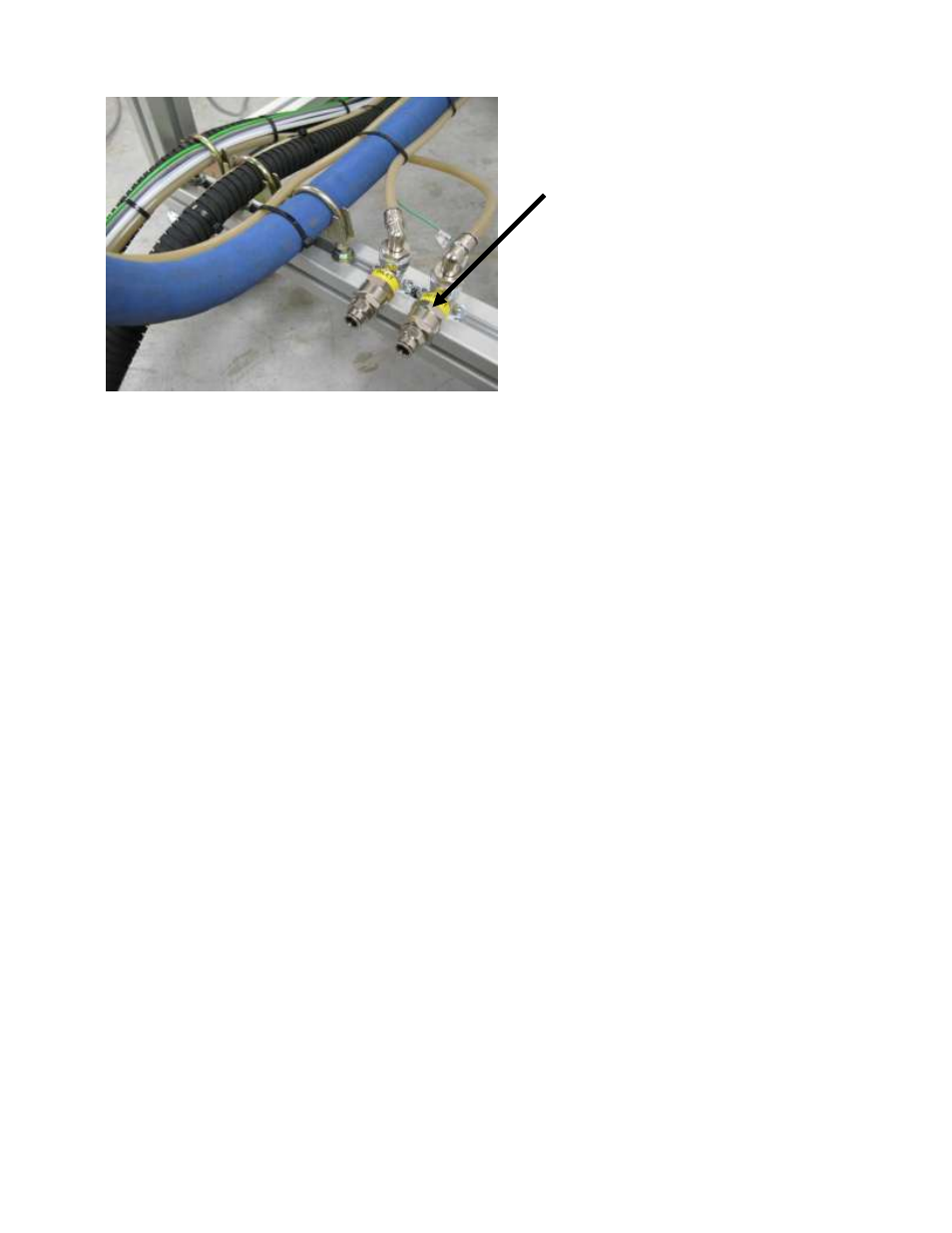

Hot water flow and return 10mm push
fittings
NOTE It is important that the flow
polarity is observed
