Magnum Venus Plastech ThermoJect V6SC User Manual
Page 5
Patriot SSB Auto Instructions Issue 05 30/06//08
Page 5 of 17
3.0 Getting started
Air pressure to machine will now be indicated on LH instrument panel gauge and should
read at least 6.5 bar. Do not operate machine lower than 5.0 bar inlet air pressure.
Fluid sec\tion Connections
1/ connect 10 mm feed and return hot water supply to fittings on rear machine lower rail.

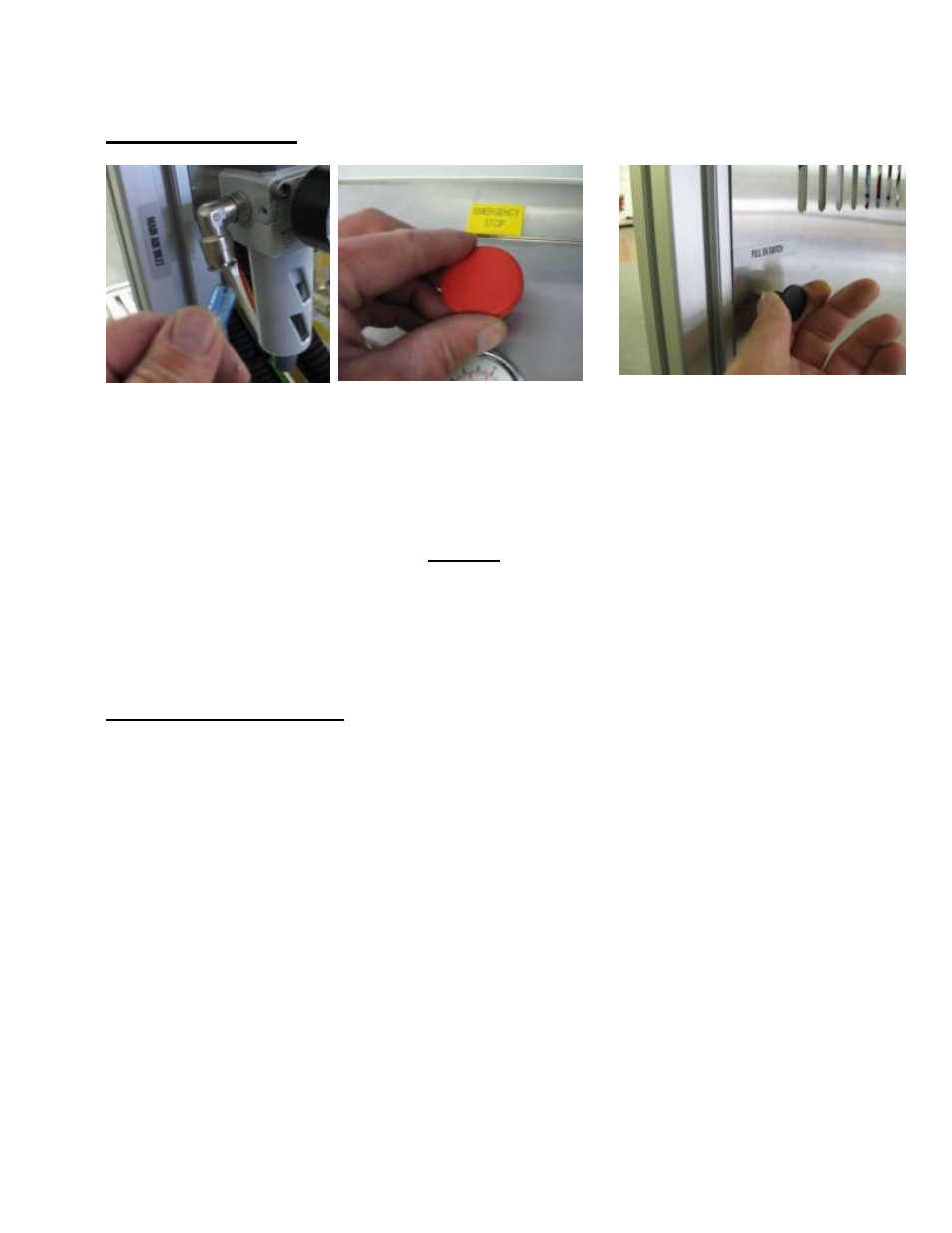

1 2 3
To switch Air supply ON to machine.
1. Connect 10mm air supply to Filter reg ( rear RH lower )
2. Release E stop - Turn counter clockwise to allow spring up action
3. Pull reset out at rear ( this will stay out until shop air loss or E stop Operated)
