Sponsler , Inc. Model T575N Temperature Compensated Totalizer/Printer

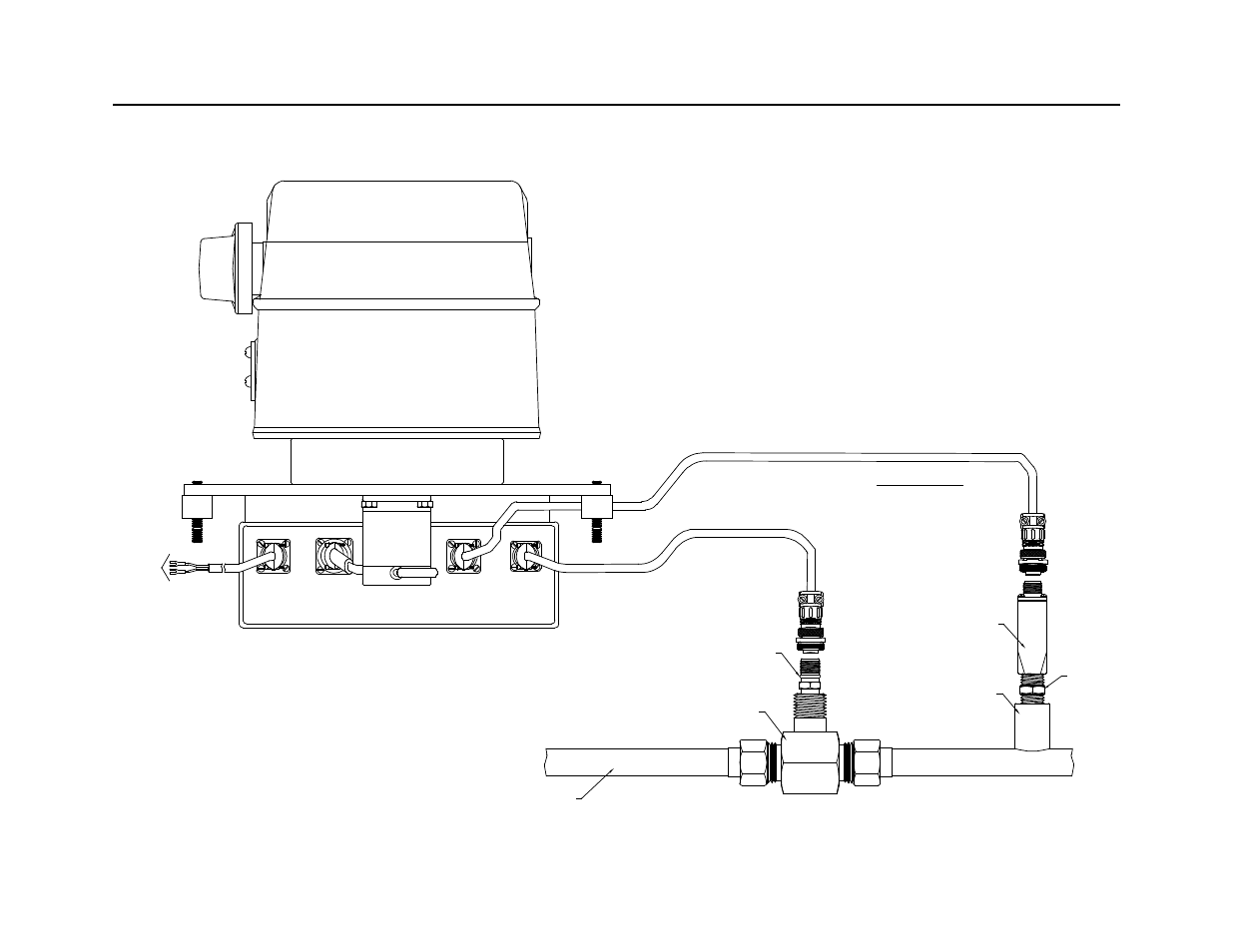

FIGURE 4:
POWER MOTOR
CON 3 CON 4
POWER
SUPPLY
PROBE NUT
PROBE SIGNAL
CON 1 CON 2
UPSTREAM DOWNSTREAM
FLOWMETER
TEMPERATURE
PROBE
PROBE
COUPLING
PICKUP COIL
TRANSITION PIPING
INSTALLING THE PROBE
1. WRAP TEFLON TAPE AROUND THREAD
THAT GOES INTO THE COUPLING.
2. SCREW PROBE INTO COUPLING USING
THE PROBE NUT. ‘DO NOT USE THE
PROBE HOUSING’.
11
