Specifications and dimensions, Specifications dimensions – Liquid Controls Differential Pressure Transducer User Manual
Page 5
5
sPecIfIcatIons and dIMensIons
Materials of Construction
Body
• Stainless steel (316L)
Wetted Materials
• Stainless steel (316L), Viton
®
seals
Applicable Products
• Class 2: Jet Fuel
Pressure Rating
Differential measurement range
•
0 to 43.5 PSID (0 to 3 bar) for rated accuracy
[60.0 PSID (4 bar) overpressure limit]
Line pressure range
• 0 to 150 PSI (0 to 10.3 bar)
Operating Temperature Range
• -40 to 176 °F (-40 to 80 °C)
Accuracy
• ±0.2% of full scale
• ±0.088 PSID from -4 to 104 ºF (-20 to 40 ºC)
Power
• 10 to 28 VDC, <4 mA
Communication Protocol
• RS485
Register Compatibility
LectroCount LCR-II
• SR214 operating software
• ST250 ticket software
LectroCount LCR 600
• SR601 operating software
• ST601 ticket software
Environmental Rating
• IP67 (similar to NEMA 4X)
Safety
• Designed to meet Class I, Division 2 Groups C and D
requirements

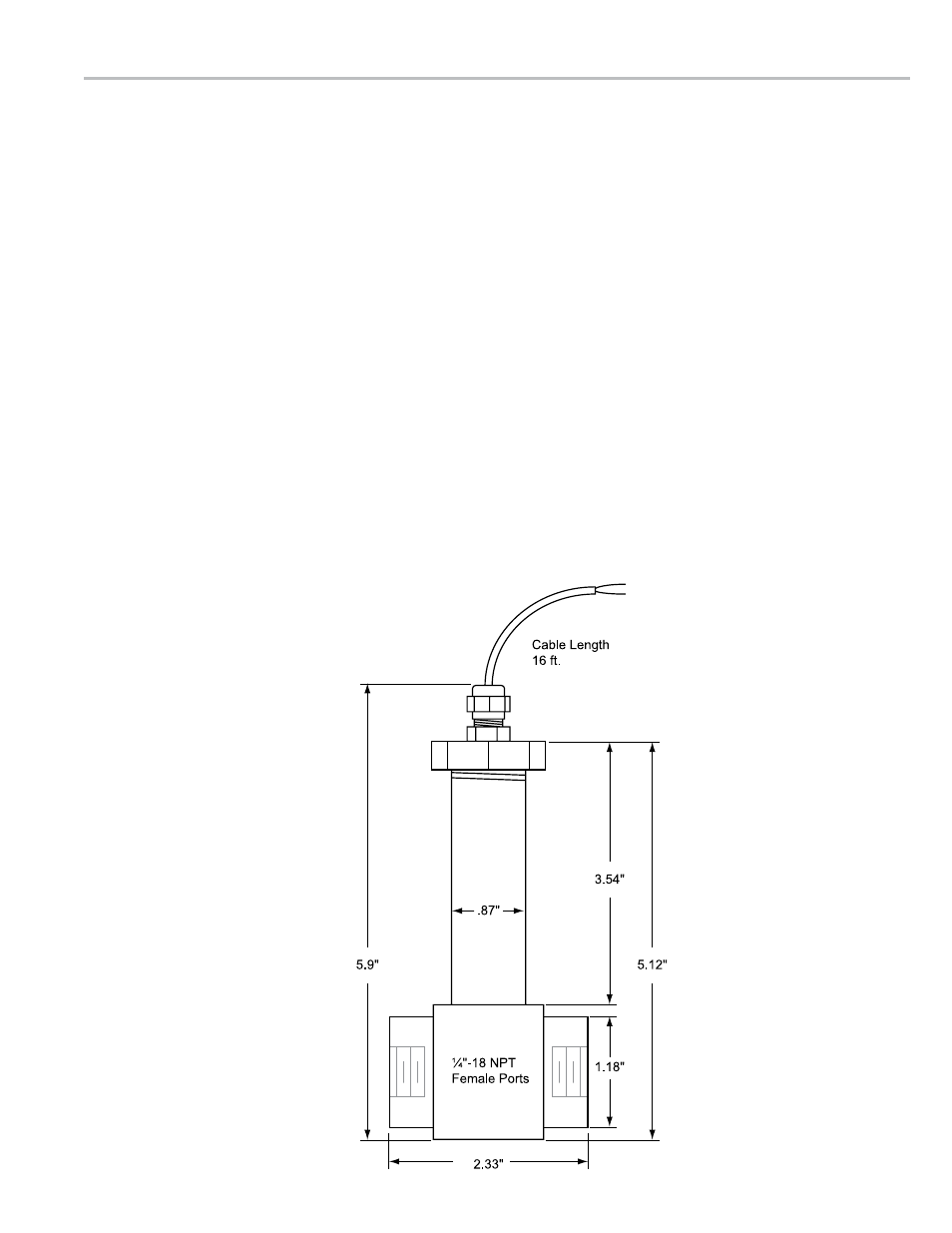

Specifications
dimensions
