PIO-24.LPCI User Manual

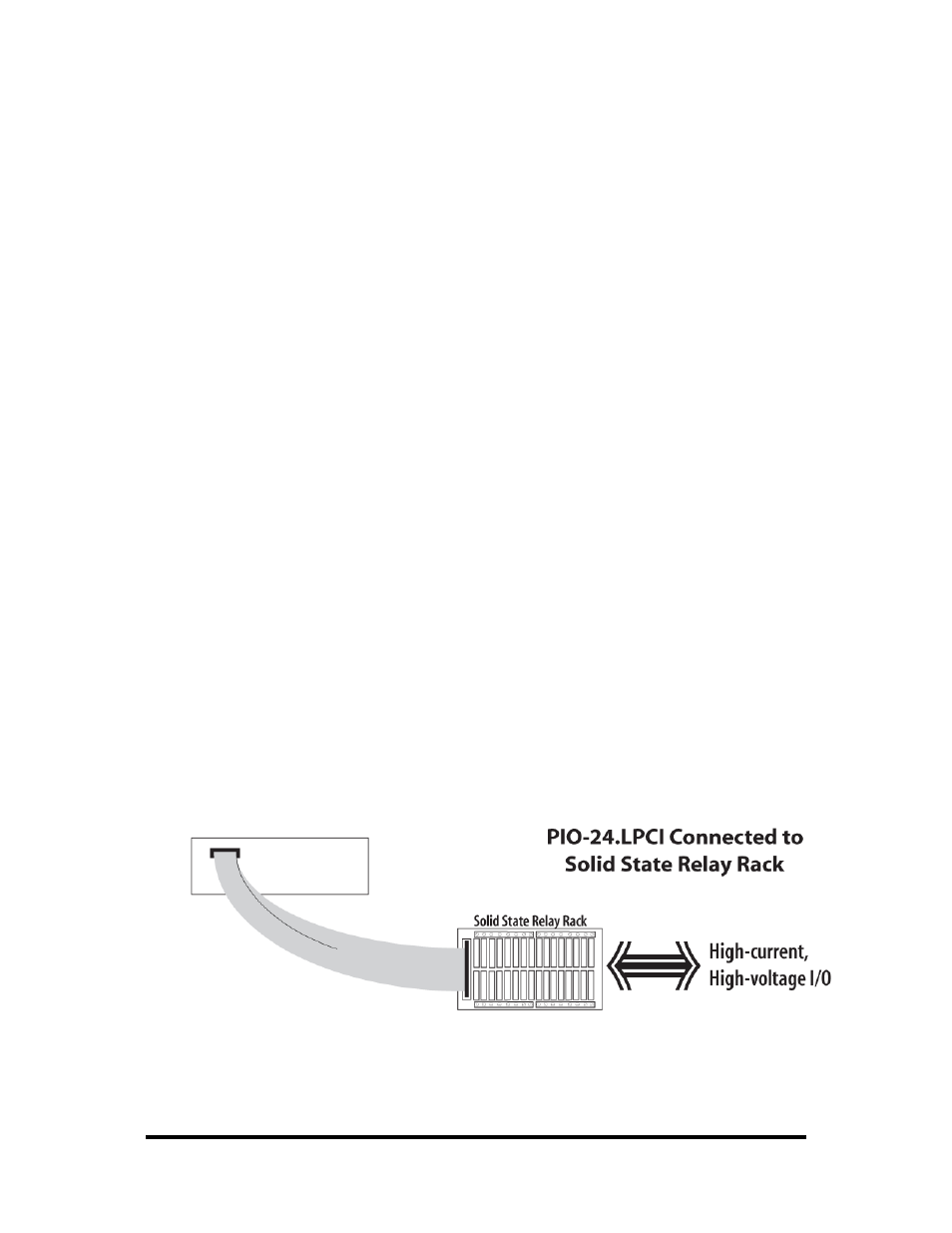

For high-current, high-voltage applications:
IDC 50 to (2) IDC 26 Pin 40" Ribbon Cable (Part Number CA315)
−
Connects to the two 26-pin header connectors on the 8018 and brings
them out to a single 50-pin IDC connector, which is compatible with
industry-standard relay racks.
Solid-State Relay Racks:
•
Quad six position relay rack (Part Number PB24HQ)
−
Relay rack can accept up to six QSSRs for a total of 24 channels.
Features a 50-pin header connector for easy interface via 50-
conductor ribbon cables.
•
Quad four position relay rack (Part Number PB16HQ)
−
Relay rack can accept up to four QSSRs for a total of 16 channels.
Features a 50-pin header connector for easy interface via 50-
conductor ribbon cables.
Quad Solid-State Relay Modules:
•
AC Input (Part Number IA5Q) - Provides 4 channels of discrete I/O
interface to monitor AC inputs up to 140V @ 10mA.
•
DC Input (Part Number IB5Q) - Provides 4 channels of discrete I/O
interface to monitor DC inputs from 3.3V to 32V.
•
AC Output (Part Number OA5Q) - Provides 4 channels of discrete I/O
interface to control AC outputs up to 140V @ 3A.
•
DC Output (Part Number OB5Q) - Provides 4 channels of discrete I/O
interface to control DC outputs up to 60V @ 3A.
Simulation/debug module (Part Number TA01)
−
Module simulates the operation and load characteristics of a standard
24-channel relay rack. An LED corresponding to each port bit
illuminates to indicate state. Eight position DIP-switches are used to
generate input status changes.
