- 2 - PIO-24.LPCI User Manual
Before You Get Started
What’s Included
The PIO-24.LPCI is shipped with the following items. If any of these items is
missing or damaged please contact Sealevel for replacement.
PIO-24.LPCI Adapter
IDC 50 to (2) IDC 26 Pin 40" Ribbon Cable (Part Number CA315)
Sealevel SeaI/O Software CD
Optional Items
Depending upon your application, you are likely to find one or more of the
following items useful for interfacing the PIO-24.LPCI to real-world signals. All
items can be purchased from our website (http://www.sealevel.com) or by calling
(864) 843-4343.
For TTL applications:
IDC 50 to (2) IDC 26 Pin 40" Ribbon Cable (Part Number CA315)
− Connects to the two 26-pin header connectors on the 8018 and brings
them out to a single 50-pin IDC connector, which is compatible with
industry-standard relay racks.

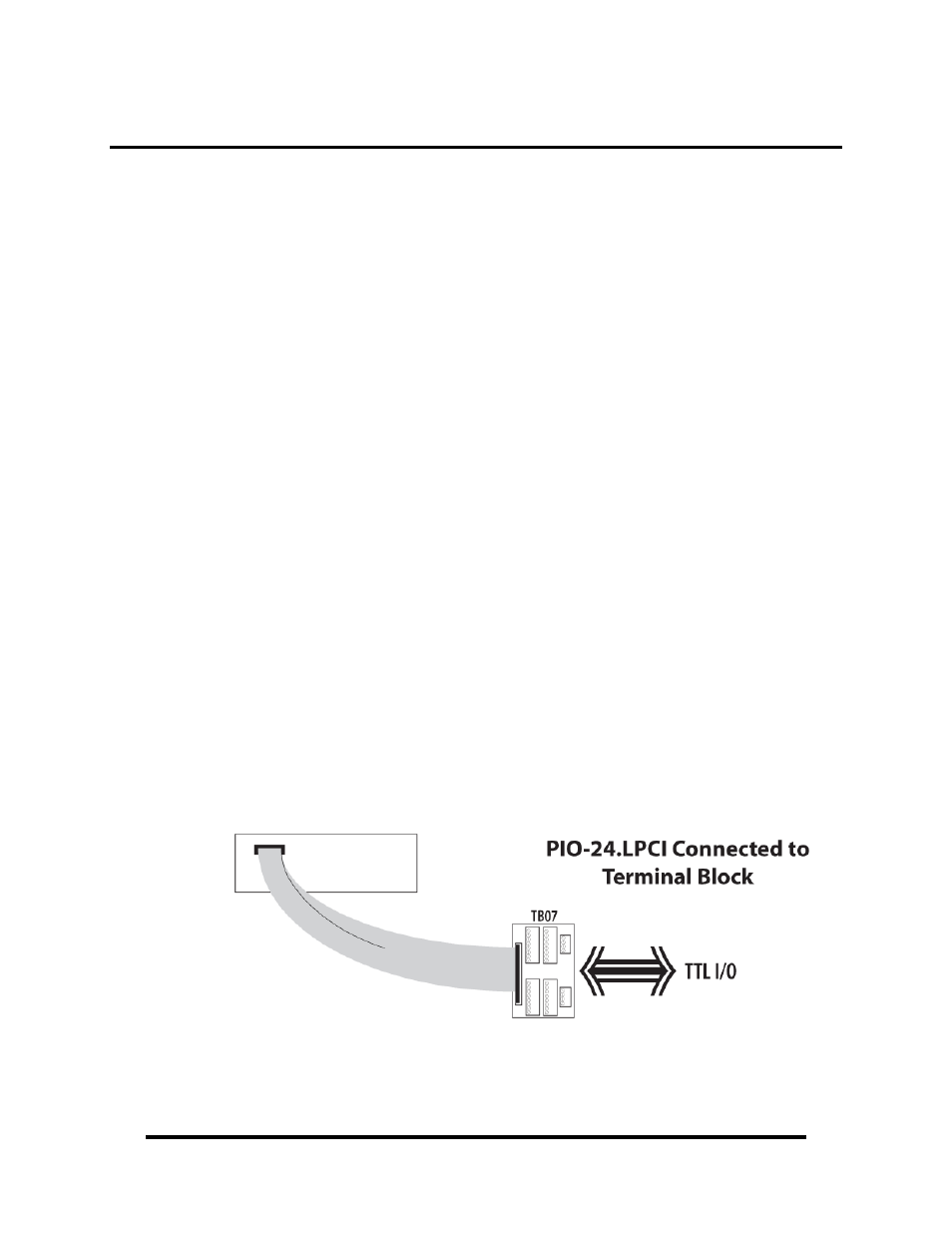

Terminal Block - (Part Number TB07)
− The TB07 allows you to break out 24 digital signals, +5 volts, and
ground to screw terminals for easy field connection of switches,
discrete solid state relays, sensors, etc.
Simulation/debug module (Part Number TA01)
− Module allows monitoring status of output pins and controlling state
of input pins. An LED corresponding to each port bit illuminates to
indicate state. Eight position DIP-switches are used to generate input
status changes.
