Power-Bus Power-Bus
Expandable Power-Bus system Conventional supply
Feature/highlights

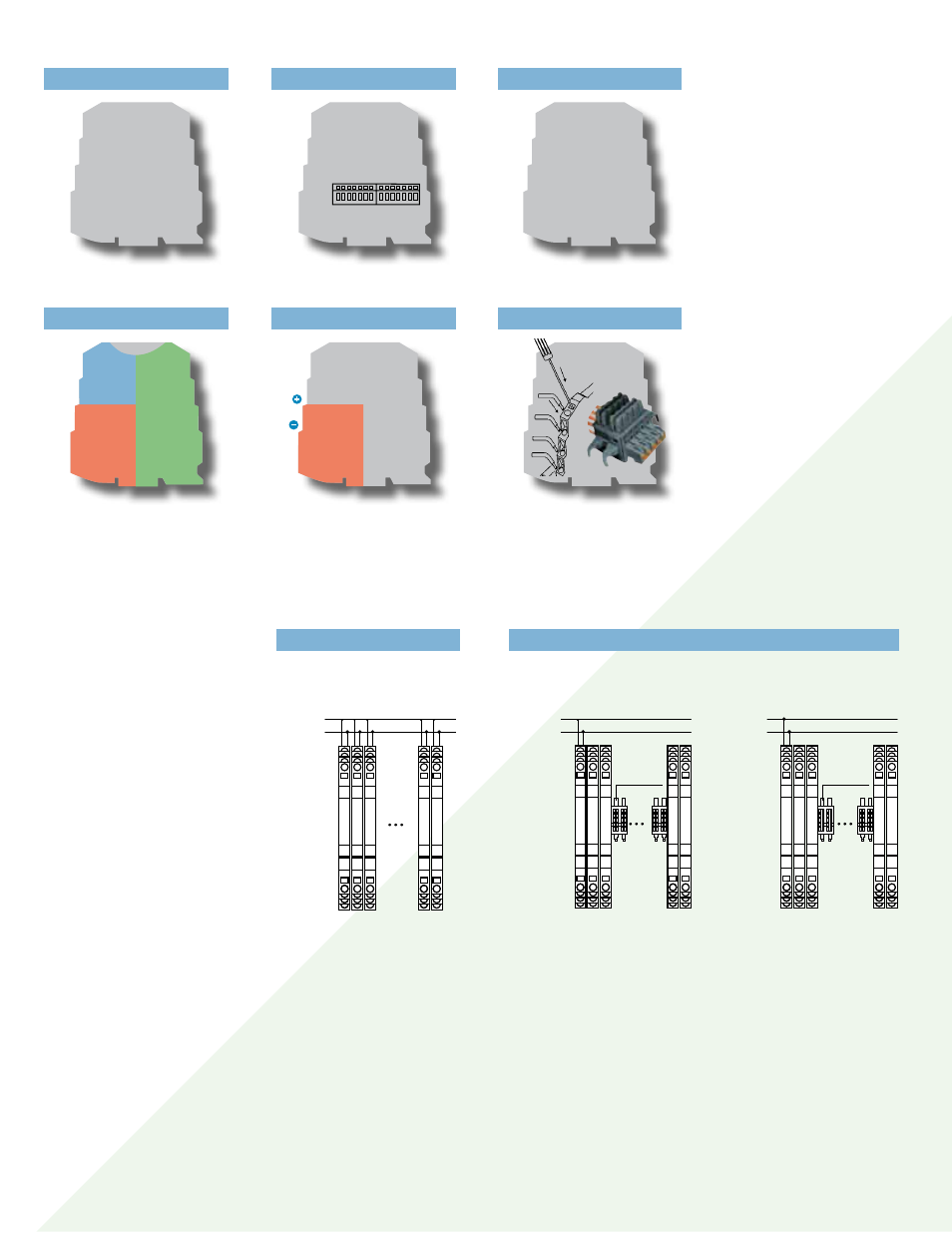

Power supply techniques
The DSCP6x series of signal conditioners
can be powered in three different ways.
First, the 24VDC power supply can
be connected directly to each signal
conditioner. Second, power can be
connected to one signal conditioner
and, using the expandable Power-Bus
connector, be distributed to a maximum
of 16 adjacent modules. Third, using
the DSCP70 Power Supply Connection
Module and the expandable Power-Bus
connector, power is distributed to a
maximum of 75 modules. See diagrams
to the right.
Distributed supply with two-slot
Power-Bus connector (up to 16
modules) Power supply on spring cage
terminals Distributed supply with DSCP70
module and Power-Bus system
(up to 75 modules)
©2010 Dataforth Corporation, All Rights Reserved ISO9001:2008-Registered QMS
Dataforth Corporation
3331 E. Hemisphere Loop
Tucson, AZ 85706 USA
Toll Free: 800-444-7644
Tel: 520-741-1404
Fax: 520-741-0762
Email: [email protected]
Accuracy
• 0.1% precision class
• Resolution 14-bit
Configuration
• Setup via Dip-switches
Power supply
• Connect to the spring cage
terminal block or use expandable
Power-Bus connectors and
DSCP70
Isolation
• Digital optocoupler
• 3-way isolation 1.5kVAC
(50 or 60Hz, 1 min)
• Digital decoupling of input signal
• Protection circuit against output
overcurrent
Connections
• Cage clamp connectors
• Expandable Power-Bus connector
on DIN rail guide
Dimensions
• Small dimensions
• 6.2mm width
0.1%
ON
OFF
SW1 SW2
6.2mm
19.2 to 30
VDC
1.5kV
Output
Power
Supply
Input
19.2 to 30VDC
0
19.2 to 30VDC
0
19.2 to 30VDC
0
