SensorLex ™ 8B Isolated Analog Signal Conditioning Products 8B
SCMXCA006-01, -02, -07
Interface Cables
Description
SCMXCA006-XX

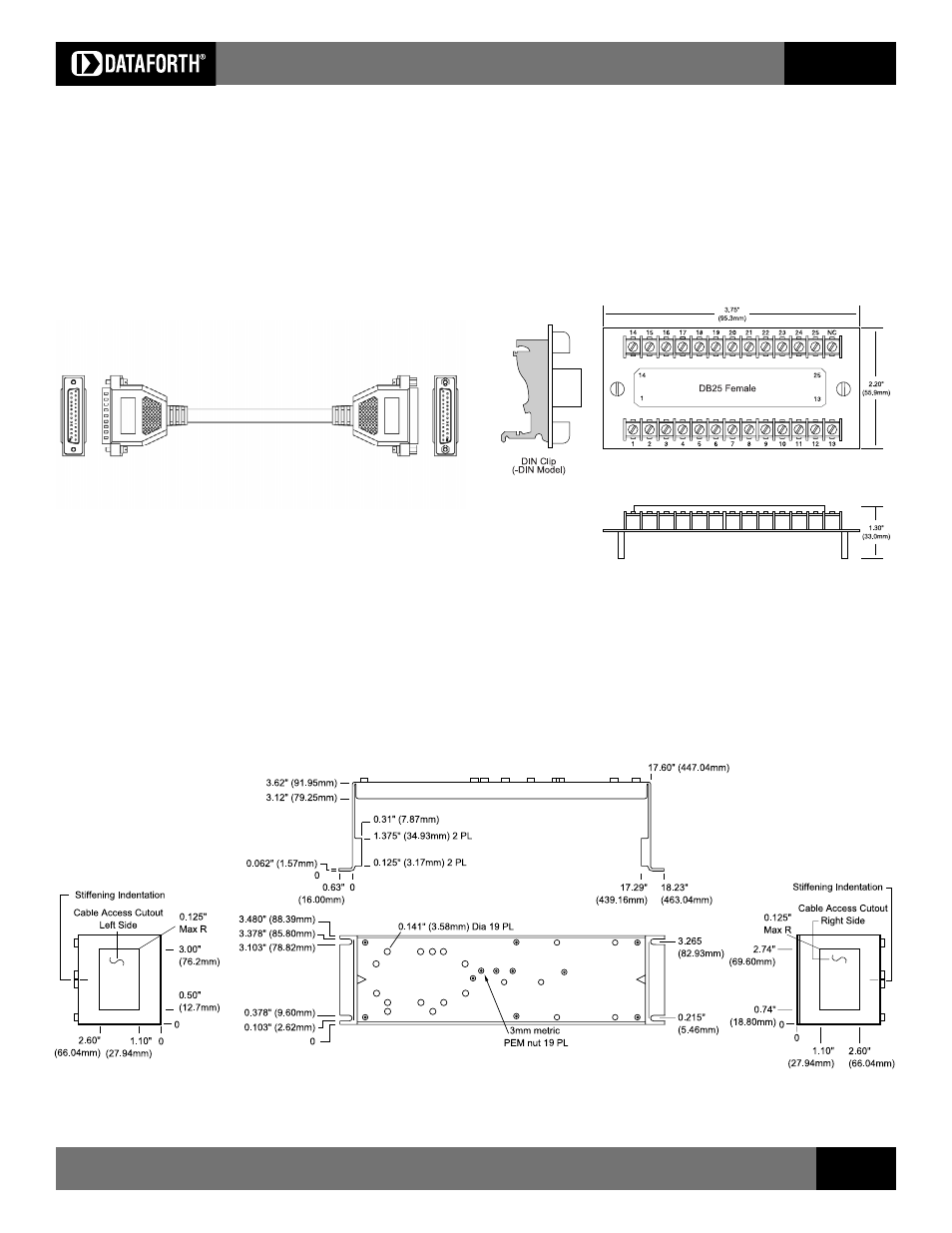

System interface cable for the 8BP04/08/16 backpanels. This is a DB25
Male/Female cable assembly. It can be ordered lengths of 1M, 2M, and 7M
(Figure 10).
Figure 10: SCMXCA006-XX System Interface Cable
SCMXRK-002
19 Inch Metal Mounting Rack
8BXIF (-DIN)
Universal Interface Board
Figure 12: SCMXRK-002 Analog Rack Dimensions
Figure 11: 8BXIF Universal Interface Board Dimensions
Description
The SCMXRK-002 is a 19-inch metal rack for mounting the 8BP04/08/16
backpanels and the 8BXIF interface board (See Figure 12 for dimensions).
Description
The SCMXIF is a universal interface board which converts a DB25 cable input
to 25 screw terminals for discrete wire. It can be mounted on
the back of the SCMXRK-002 mounting rack (8BXIF) or on a DIN rail
(8BXIF-DIN). Required mounting hardware is included. Use
SCMXCA006-XX cable (See Figure 11 for dimensions).
Male DB-25 Female DB-25
