Railway Computers

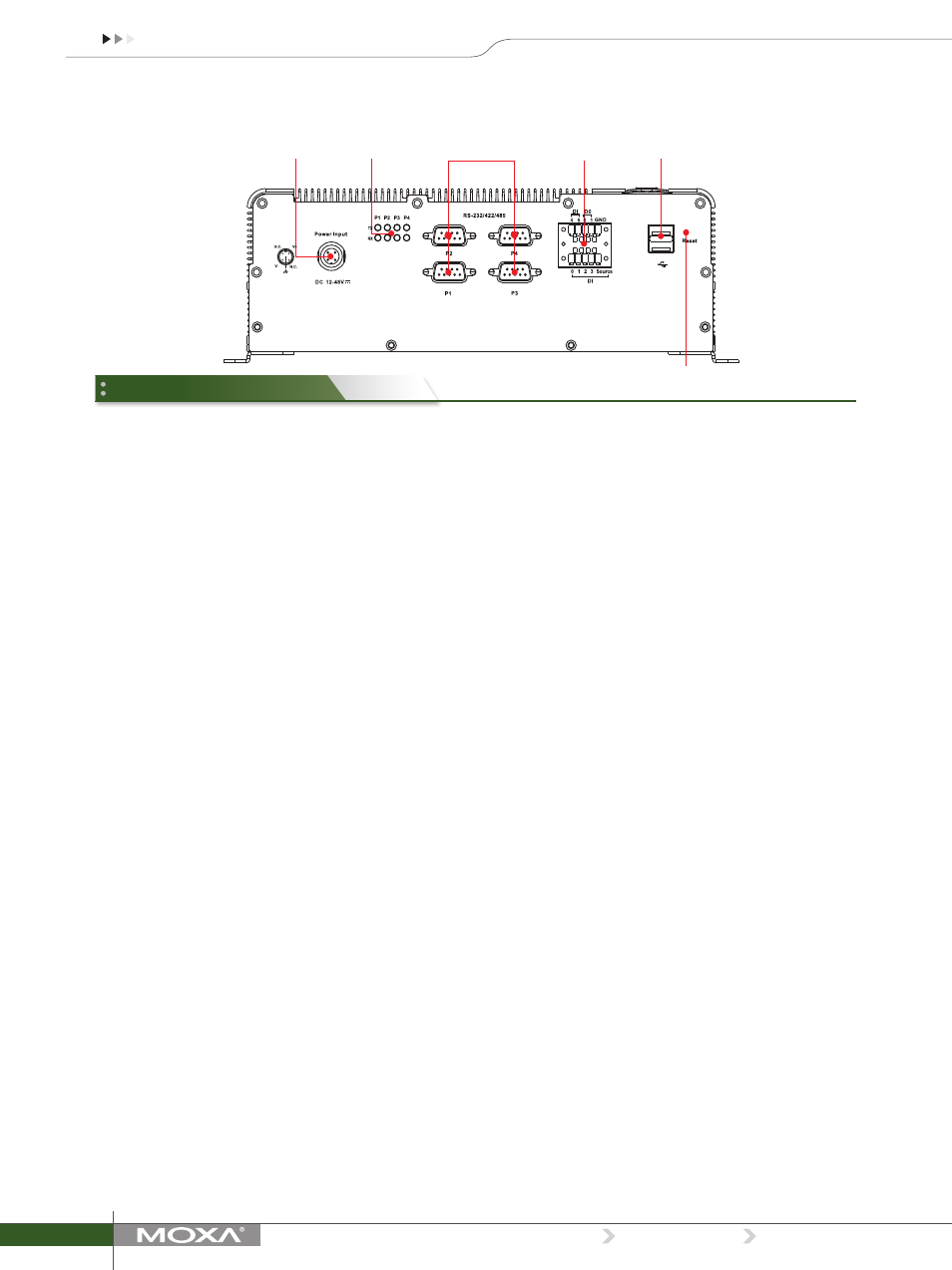

Rear View
Hardware Specifications
Computer
CPU: Intel Atom N270 1.6 GHz processor
OS (pre-installed): Linux or Windows Embedded Standard 2009
System Chipset: Intel 945GSE + ICH7-M
BIOS: 8 Mbit Flash BIOS, PLCC type, ACPI function supported
FSB: 533 MHz
System Memory: 2 GB capacity, 1 GB pre-installed: 1 slot of 2 GB
DDR2-533 200 pin SO-DIMM SDRAM
USB: 3 USB 2.0 compliant hosts; 2 with type A connectors supporting
system bootup, 1 with M12 connector
Storage
Built-in: 2 GB onboard industrial DOM to store OS
Storage Expansion: CompactFlash socket for CF card expansion,
supporting CF Type-I/II
HDD Support:
HDD: 2 SATA-II connectors for storage expansion
Removable Trays: Support for 2 additional connectors for storage
expansion with hot-swappable function
Other Peripherals
KB/MS: 1 PS/2 interface supporting standard PS/2 keyboard and
mouse through Y-type cable
Audio: Line-in, line-out interface
Display
Graphics Controller: Intel Gen 3.5 Integrated Graphics Engine, 250
MHz core render clock and 200 MHz core display clock at 1.05-V core
voltage
VGA Interface: DB15 female connector, up to 2048 x 1536 resolution
DVI Interface: DVI-I connector (chrontel CH7307 SDVO to DVI
transmitter), up to 1600 x 1200 resolution
Ethernet Interface
LAN: 2 auto-sensing 10/100/1000 Mbps ports (M12)
Serial Interface
Serial Standards: 4 software-selectable RS-232/422/485 ports* (DB9
male)
*COM1’s pin 9 signal can be set by jumper as N/C (default), +5 V, or +12 V
ESD Protection: 4 KV for all signals
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Digital Input
Input Channels: 6, source type
Input Voltage: 0 to 30 VDC at 25 Hz
Digital Input Levels for Dry Contacts:
• Logic level 0: Close to GND
• Logic level 1: Open
Digital Input Levels for Wet Contacts:
• Logic level 0: +3 V max.
• Logic level 1: +10 V to +30 V (Source to DI)
Isolation: 3 KV optical isolation
Digital Output
Output Channels: 2, sink type
Output Current: Max. 200 mA per channel
On-state Voltage: 24 VDC nominal, open collector to 30 VDC
Connector Type: 10-pin screw terminal block (6 DI points, 2 DO
points, DI Source, GND)
Isolation: 3 KV optical isolation
LEDs
System: Power x 1, Storage x 1, Programmable x 2 on the removable
trays
LAN: 100M/Link x 2, 1000M/Link x 2
Serial: TX x 4, RX x 4
Physical Characteristics
Housing: Aluminum
Weight: 4 kg
Dimensions:
Without ears: 154 x 250 x 86 mm (6.06 x 9.84 x 3.39 in)
With ears: 154 x 275 x 92 mm (6.06 x 10.83 x 3.62 in)
Mounting: DIN rail, wall, VESA
Environmental Limits
Operating Temperature: (without HDD installed)
Standard models: -25 to 60°C (-13 to 140°F)
Wide temp. models: -40 to 70°C (-40 to 158°F)
Storage Temperature: (without HDD installed)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-vibration: EN 50155 standard
Anti-shock: EN 50155 standard
Conformal Coating: Available on request
Standards and Certifications
Safety: UL 60950-1, CSA C22.2 No. 60950-1-07, EN 60950-1
EMC: EN 55022 Class A, EN 61000-3-2 Class D, EN 61000-3-3, EN
55024, FCC Part 15 Subpart B Class A
Rail Traffic: EN 50155, EN 50121-2-3, EN 50121-4, IEC 61373
Green Product: RoHS, CRoHS, WEEE
Reliability
Automatic Reboot Trigger: Built-in WDT (watchdog timer) supporting
1-255 level time interval system reset, software programmable
Warranty
Warranty Period: 3 years
Details: See www.moxa.com/warranty
USB 2.0
Host x 2 (type A)
Serial Port x 4
(RS-232/422/485,
DB9 male)
Power Input
(M12)
Serial LED
(Tx/Rx x 4)
DI x 6
DO x 2
Reset Button
