Controlled Products Systems Group SPX-5501 - Manual (Page 19)

*
EXP-2000
Remote Unit
8 to 16 VDC In
Ground
RLY2 N.O.
RLY2 Com
RLY2 N.C.
RLY1 N.O.
RLY1 Com
RLY1 N.C.
RS232 Out
RS232 In
Ground
Aux In
N/C
N/C
485(+)
485(-)
+5 VDC Out
RLY4 Input (5V)
RLY3 Input (5V)
LED Output
D1/Data Input
D0/Clock Input
DC
Power
Supply

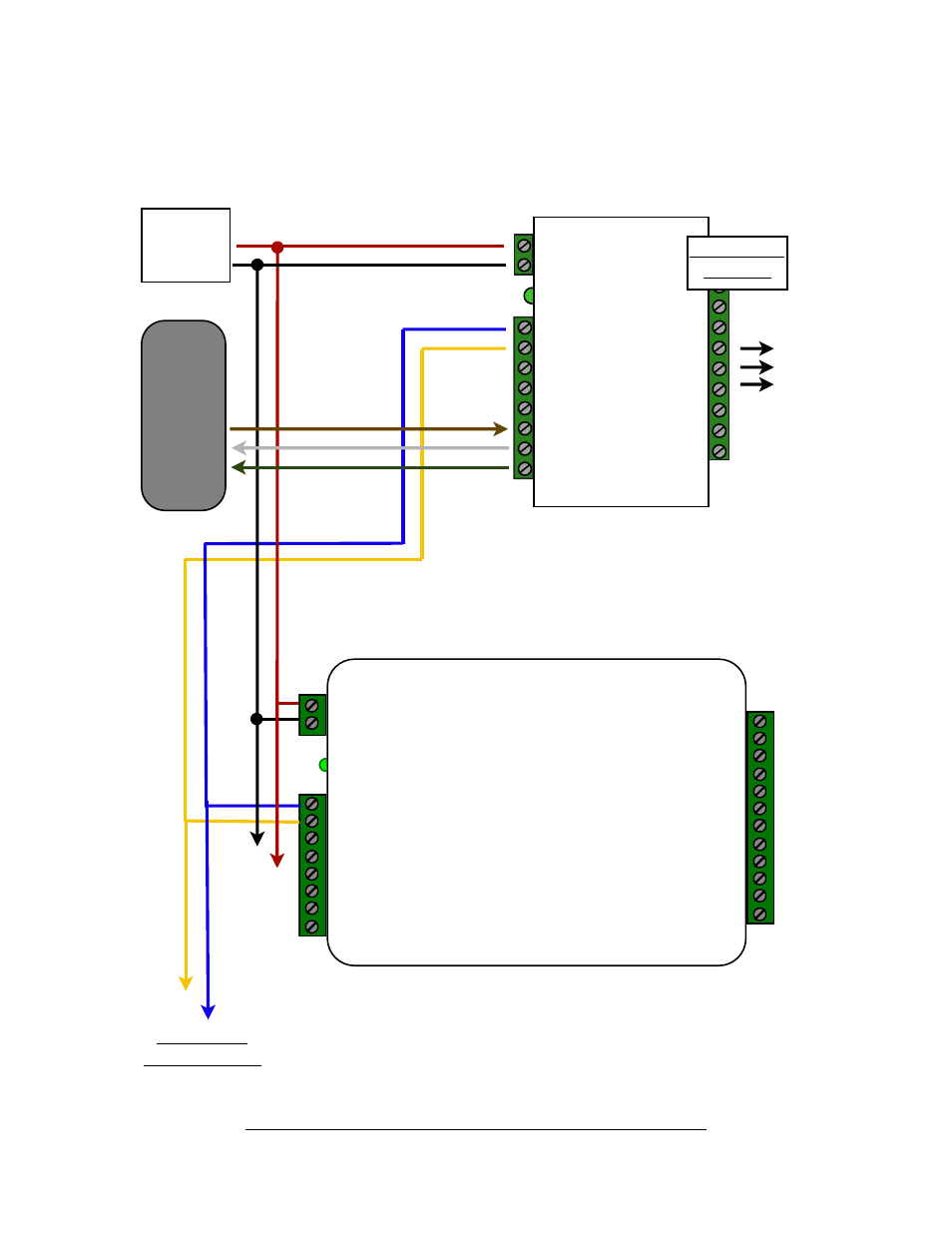

Cypress Suprex Series - Wiegand Expansion Module
Reader/Door “Remote” interface
Additional
EXP Modules
Card
Reader
EXP (+)
EXP (-)
LED Out
D1/Data In
D0/Clock In
8 to 16 VDC In
Ground SPX-XXXX
Remote
R1 N.O.
R1 Com
R1 N.C.
Door
Strike
Output
See EXP-2000 Manual for further setup instructions
