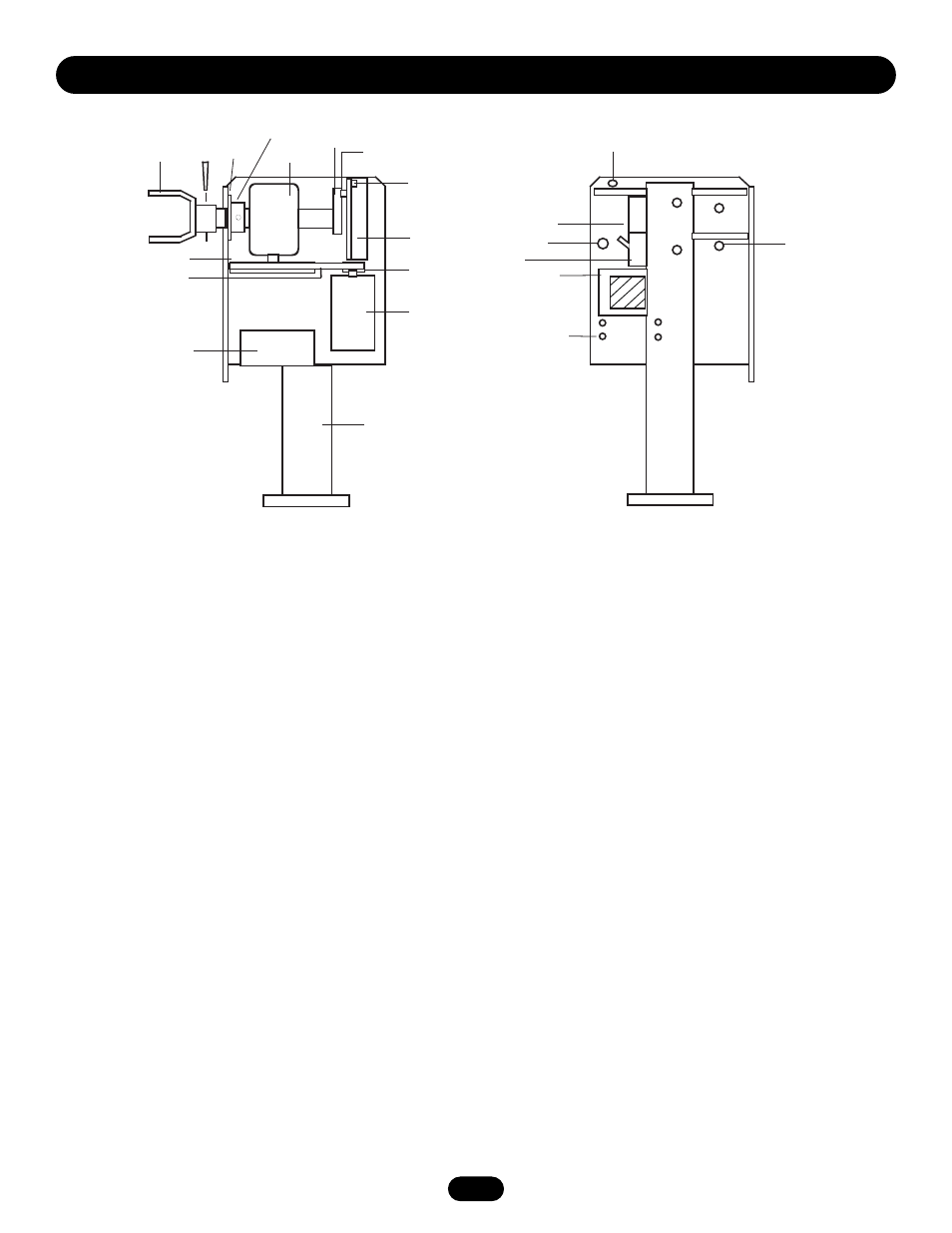

PART NUMBERS AND DESCRIPTIONS
ITEM PART NUMBER DESCRIPTION
1 MA001 Controller
2 MA002 Removable Connector
3 MA003 DC Motor - 24 Vdc
4 MBAT 12Vdc 7AH Battery
2 required
5 MA005 Gear Reducer 60:1
6 MA006 Aluminum Chassis
7 MA007 Drive Belt
8 MA008 Reducer Pulley
9 MA009 Motor Pulley
10 MA010 Gate Arm Bracket
11 MA011 Magnet
12 MA012 Cam Arm
13 MA013 Shear Pin
ITEM PART NUMBER DESCRIPTION
14 MA014 Bolt and Nut (4) Motor
15 MA015 Transformer
16 MA016 120 Vac Duplex Outlet
(120 Vac Only)
17 MA017 Bolt and Nut (4) Reducer
19 MA019 On/Off Switch
* MA020 Unit Cover for Mega Arm
(Not Tower)
* MA021 Nylon Arm Nuts (2)
* MA022 Arm Bolts (2)
* MA023 Gate Arm - 12'
* 73A3 Filter Module
* 74-31243 Surge Suppressor
20 MA036 Collar
21 MA037 Nylon Washer
( * ) parts not shown
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17 18
18
19
20
21
M E G A A R M U L P A R T S L I S T
PARTS SHIPPED
ITEM QTY
MEGA ARM Operator 1
Controller 1
Unit Cover 1
Installation and Service Manual 1
Arm Bolts with Washers 2
Nylon Nuts 10
7AH Batteries 2
MEGA ARM TOWER UNIQUE PARTS LIST
ITEM PART NUMBER DESCRIPTION
* MA020T Unit Cover for Mega Arm Tower
* MA020D Unit Door for Mega Arm Tower
NOTE: Mega Arm Tower not shown
MEGA ARM OPTIONS PARTS LIST
ITEM PART NUMBER DESCRIPTION
* 71-TRAP Trap option
* 71-SPRINT Sprint option
* 71-TRAPSP Sprint Trap option
19
