T R A P I N S T R U C T I O N S

INSTALL THE K1 AUXILIARY RELAY AND CONNECTOR AT MEGA
ARM CONNECTED TO THE ACCESS DEVICE

1. Press the relay into the K1 location ensuring the pins are

properly aligned.

2. Press the connector into the J1 connector pins.

INSTALL THE K1 AUXILIARY RELAY AND CONNECTOR AT THE
SECOND

1. Press the relay into the K1 location ensuring the pins are

properly aligned.

2. Press the connector into the J1 connector pins.

WIRE THE CONNECTIONS BETWEEN THE OPERATORS

1. Connect the Normally open output (NO) of the K1 relay on the

trap unit to the OPEN input (J5 - term#2) of the second unit.

2. Connect the common output (C) of the K1 relay of the trap

unit to the common of the second unit (J5 - term#12).

3. Connect the Normally open output (NO) of the K1 relay on the

second unit to the INTERLOCK input of the trap unit
(J5 - term#8).

4. Connect the common output (C) (J5 - term#12) of the second

unit to the common of the trap unit (J5 - term#12).

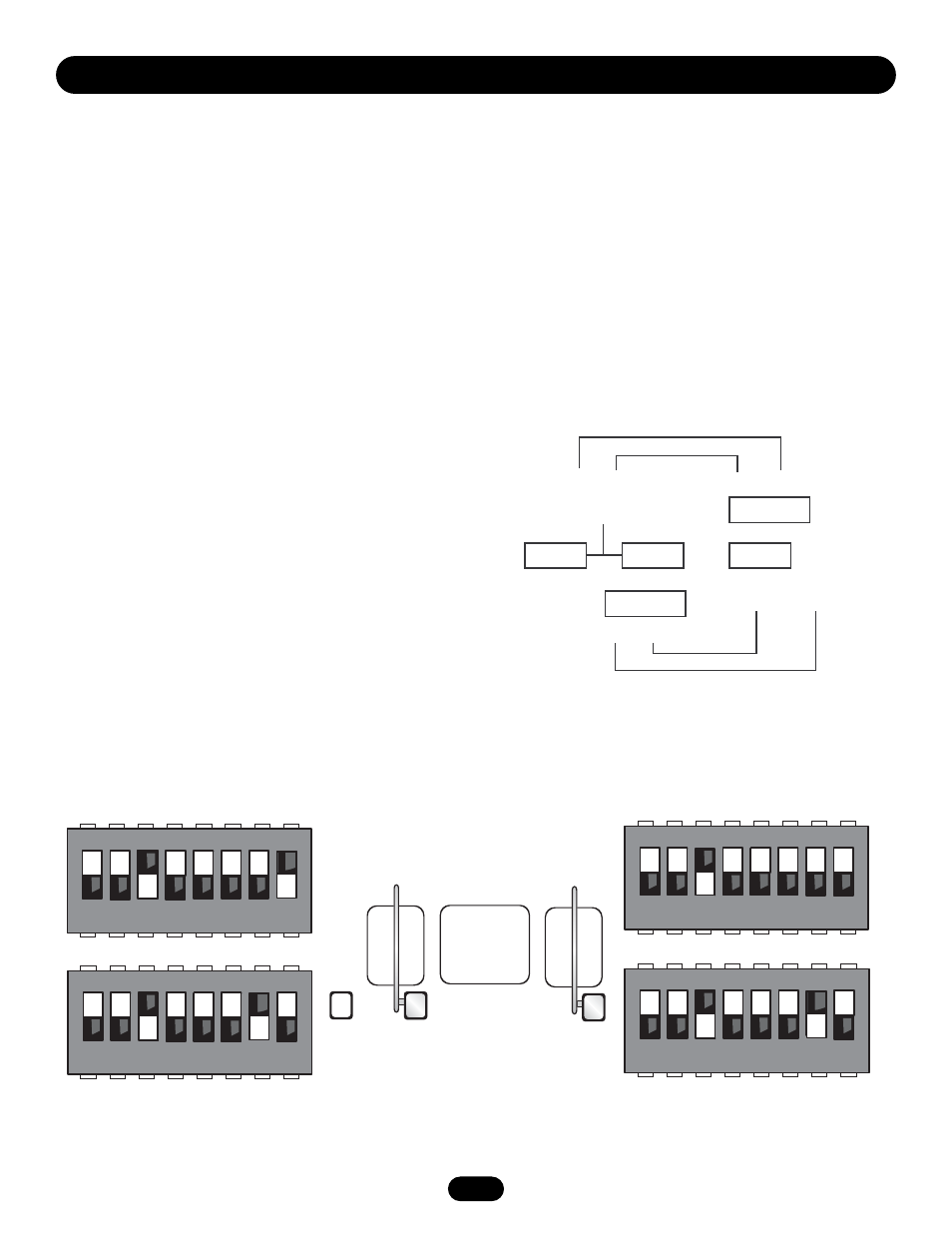

SET THE DIP SWITCHES AT THE TRAP OPERATOR

1. Set switch bank S1 to 00100001 where 1 is up and 0 is

down.

2. Set switch bank S2 to 00100010 where 1 is up and 0 is

down.

SET THE DIP SWITCHES AT THE SECOND OPERATOR

1. Set switch bank S1 to 00100000 where 1 is up and 0 is

down.

2. Set switch bank S2 to 00100010 where 1 is up and 0 is

down.

S1

1

ON

2 3 4 5 6 7 8

1

ON

2 3 4 5 6 7 8

Close
Loop

S2

OFF

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

OFF

OFF

1

ON

2 3 4 5 6 7 8

1

ON

2 3 4 5 6 7 8

S1

S2

OFF

OFF

ON

ON

ON

ON

ON

ON

OFF

OFF

ON

ON

ON

ON

ON

ON

16

RECONNECT THE POWER AND TEST

1. Reconnect the DC power by replacing the neutral (Black) wire

to the battery terminal.

2. Reconnect the AC Power to the operator.

3. To test, activate the following sequence of inputs:

a. Open the trap gate using the access device.

b. When the trap gate is open, activate the close loop on the

trap operator. The trap gate will close and the second gate
should open.

c. When the second gate is open, activate the close loop on

the second operator. The second gate should close.

C NC NO DC

C

Interlock

S1-6 OFF
S1-8 OFF

K1

MA

MA

TES

OPEN

Trap

C NC NO DC

S1-6 OFF
S1-8 ON

Opener

Common

TRAP SET UP

Mega ARM Operator

Trap Operator

TRAP CONFIGURATION

Must use trap kit. See Mega Arm Options Parts List

Mega Arm

Mega Arm Trap

Close
Loop

Close Loop Trap

Close
Loop
Trap

Card Reader
Tele-entry
Radio Control
