I N S T A L L T H E R E C E I V E R
NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of
this receiver and/or transmitter are prohibited, except for changing the code setting or replacing
the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.

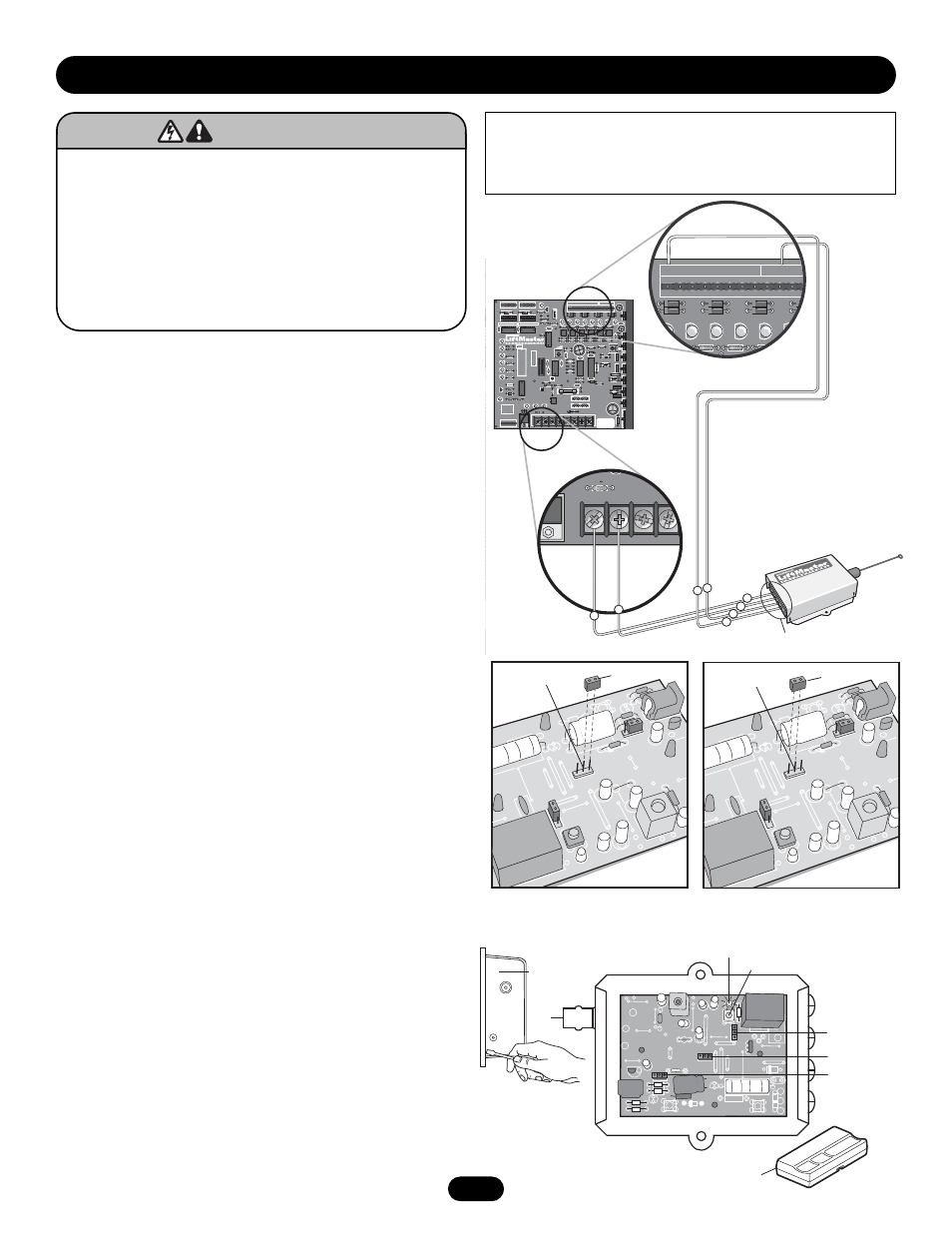

WIRING THE RECEIVER
Contacts 1 and 2 on the receiver terminal strip are for power. The
power terminals are unpolarized. Connect terminals 1 and 2 to
the accessory power terminals on the J4 terminal strip at the
bottom of the logic board (Figure 1).
Contacts 3 and 4 on the receiver terminal strip are for a common
and a relay. Connect terminals 3 and 4 to terminals 1 and 10 on
the J5 terminal strip at the top of the logic board.
NOTE: Auxiliary Pin 4 can be used for push to open/push to close
functionality.
SET SECURITY MODE
The Universal Receiver can be used with up to 15 rolling code
remotes or passwords in HIGH security mode. Alternately, it can
be used with up to 31 of any type remote in NORMAL security
mode, including any combination of rolling code, billion code
(390Mhz only), or dip switch remotes.
The jumper must be set at the HIGH position for the receiver to
operate in HIGH security mode. It must be set at NORMAL
position to operate at the NORMAL mode (Figure 2).
When changing from NORMAL to HIGH security mode, any
previous remote codes must be erased. Repeat Steps 2 and 3 in
the Programming Section below to reprogram the receiver for
each remote control in use.
The receiver is factory set at HIGH.
PROGRAMMING THE REMOTE TO THE RECEIVER
STEP 1: Pry open the front panel of receiver case with a coin or
a screwdriver. Re-connect power to opener (Figure 3).
STEP 2: Press and release the “learn” button on the receiver.
The learn indicator light will glow steadily for 30 seconds.
STEP 3: Within 30 seconds, press and hold the button on the
hand-held remote that you wish to operate your gate.
The opener will now operate when the push button on either the
receiver or the remote control is pressed.
Repeat Steps 2 and 3 for each remote control that will be used to
operate the gate.
TO ERASE ALL REMOTE CONTROL CODES
Press and hold the “learn” button on the receiver panel until the
indicator light turns off (about 6 seconds). All remote codes are
now erased. Then follow the steps above to reprogram each
remote control.
