10

MODE SELECTIONS - SWITCH PACK S1 (5-8)

SWITCH 5: ON -Will allow J5 input #4 to operate as a pulse
open/pulse close function.

SWITCH 6: ON -Will fire relay if gate is pushed UP from closed
limit, used with clutch option. Also

ANTI TAIL-GATE ALARM, if tailgating is detected by close loop,
K1 relay will fire. When using clutch option, turning on S1-6 &
S2-7, gate will close by timer whenever forced up.

SWITCH 7: Used to enable arm to work in reverse direction,
see page 9.

SWITCH 8: Off will make K1 relay activate during open cycle
(use with buzzers, counters, etc.). On will pulse K1 relay when
OPEN LIMIT (OLS) is reached (activates a swing or slide gate
its lane).

See also page 18, RELAY OUTPUT-K1

FAST RUN TIMER - SWITCH PACK S1 (1-4)

The fast run timer sets the time that the operator runs at full
speed. The slow start ramp time is fixed. The slow stop ramp
time is fixed but can be overrun by the fast run time if not
adjusted properly. When adjusting make sure the slow stop ramp
completes before the close limit. With all switches off, the default
fast run time is 1.5 seconds. Changing settings will adjust fast
run timer by 1/8 second increments. (Example: #2 on equals .25
seconds, #4 on equals 1 second. #2 and #4 on equals 1.25
seconds, etc.)

CLOSE TIMER - SWITCH PACK S2 (1-5)

NOTE: Default setting is off.

On the MEGA ARM the switches 1-5 on S2 are for the closing
time delay to select the period of time that the gate stays open
after the obstruction sensor has reversed and re-opened the arm
or if the S2-7 timer to close is turned on. The default will keep
the gate up for 4 seconds to allow the vehicle to be moved from
the gate arm path. Changing settings 1 - 5 will increase or
decrease this hold open time. The default of 3 ON and 1, 2, 4, 5
OFF
will provide a 4 second close time delay.

MODE SELECTIONS - SWITCH PACK S2 (6-8)

SWITCH 6 - INPUT MEMORY: Activates multiple vehicle
memory at auxiliary input terminal #4 on J5.

SWITCH 7 - AUTO CLOSE TIMER: Default is OFF. On will close
gate by timer when all inputs are cleared. Time is set by using
S2 1-5 switches. (WARNING: Special care should be used to
avoid arm from closing on cars. Use safety loops, stop loops,
photo beams and a long enough time delay.)

NOTE: Can be used with multiple vehicle memory buffer to allow
gate to close and reset count memory to zero. When using clutch
option, turning on S1-6 & S2-7, gate will close by timer
whenever forced up.

SWITCH 8 - AUTO OPEN ON POWER FAILURE: When switch
number 8 is in the ON position, the operator will automatically
open the gate approximately 15 seconds after the loss of
power. Once power is restored the operator will resume normal
operation after the first car passes closing loop or if close timer
S2-7 in turned on (it is recommended to allow the gate to close
by loop, not by timer).

1 - -

2 - -

4 - -

8 - - 16

1

ON

2 3 4 5 6 7 8

OFF

ON

OFF

OFF OFF OFF

OFF OFF

24VAC XFMR

ACC+

HBEAT BAT

LO

AC

POWER

PWR

C NC NO

Aux Relay

R2

R11

D1

Q1

DC

1

1

K1

D11 D12

R13

D14

U19

J4

F3

F4

F1

F2

1A DC

IRD1

R63

J1

ACC– BAT–

BAT– MOV

BAT+ MOTOR

MOTOR

AUX LIMITS

1

J2

J3

J5

M/S

JP2

S3

1

Q2

T2

1 2 3 4 5 6 7 8 9 1Ø 11 12

T1

OPEN 1

D15

C7

X2

C19

D7

OLS

R1

U1

C2

C3

C4

C1

U4

R12

S1

D6

OPEN

D5

BRAKE

D4

CLOSE

D3

CLS

D2

IRD

OPEN 2

D16

R3

Ø

OPEN 3

D17

AUX 4

D1

8

SAFETY 5

D19

CLOSE 6

D22

BACK 7

D23

SHADOW 8

D24

OPEN

CLOSE

MANUAL

R1Ø

R9

R38

R15

R37

C8

C2Ø

C12
U12

U1Ø

+

R8

R7

R6

R5 U2

U3

CPU

U5

U6

U7

X1

R4

R3

D8

T4
T3

T6
T5

T8
T7

C15

C2

D27

Q6

Q5

F5

C22

C1
8

U1
8

1 2 3 4 5 6 7 8

S2

1 2 3 4 5 6 7 8

D1Ø

R14

R18

R21

R24

R36

R42

R47

R53

R35

R41

R46

R5Ø

R61

C16

R17

R16

D29

Q4

D2
8

D26

C6

D25 –

B2

+

U8

U9

U16

U11

U13

U14

U15

D9

R23

R22

R26

R25

R19

B1

R2Ø

C5

+

+

R34

R33

R4Ø

R39

R45

R44

R58

DX3

R49

R48

R43

R51

WARNING FOR
CONTINUOUS
PROTECTION
AGAINST FIRE
REPLACE ONLY
WITH THE SAME
TYPE AND RATING
OF FUSE

R43

R6Ø

R59

D21

D2Ø

R62

DX1

TR

DX4

R57

R56

C13

DX2

R55

1 - - - - 2 - - - - 4 - -- - -8

1

ON

2 3 4 5 6 7 8

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

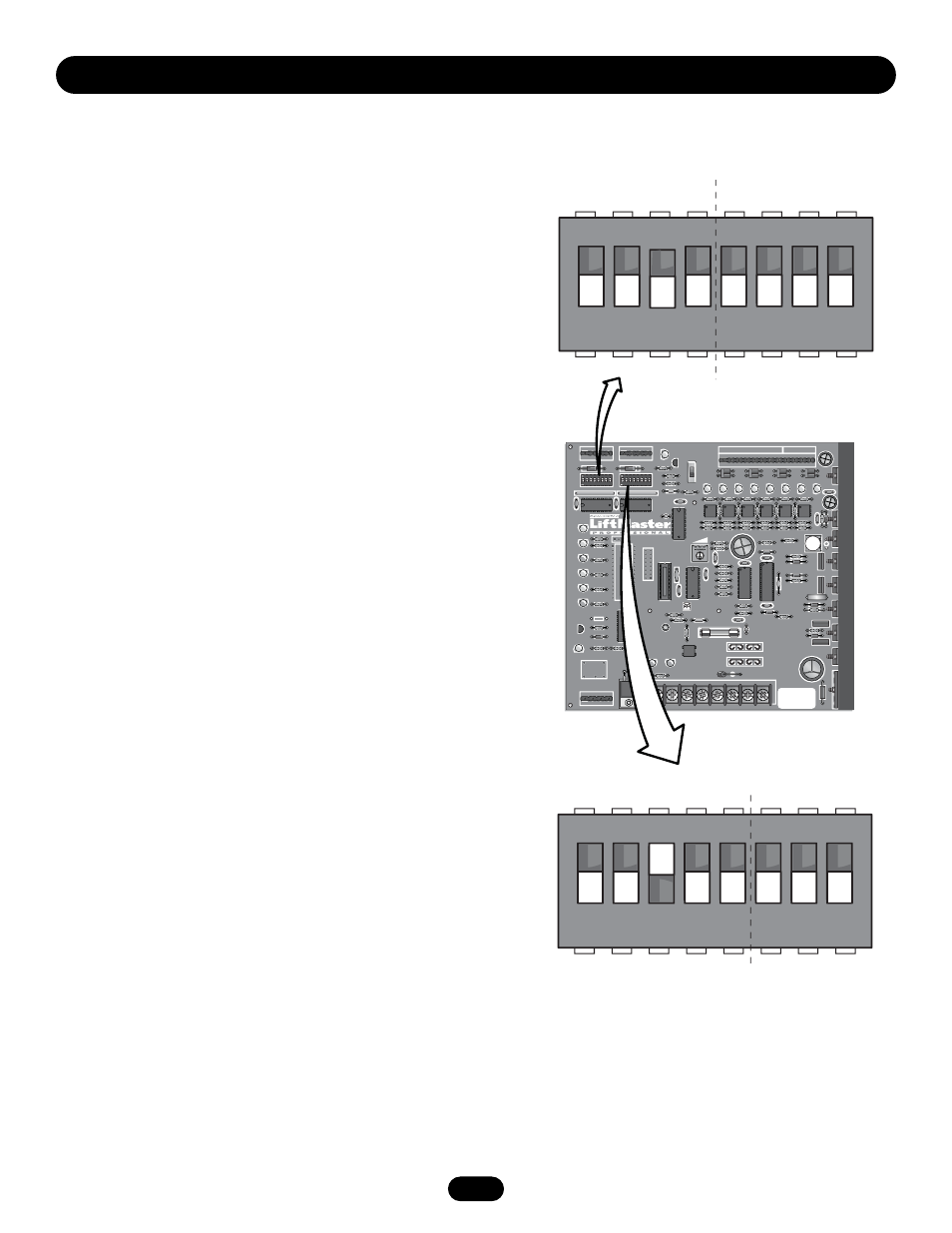

T I M E R S A N D M O D E S E L E C T I O N S S 1 & S 2

Shows
Default
Settings

Shows
Default
Settings

Fast Run Timer 1-4

Close Timer 1-5

Mode Selection 6-8

Switch in

OFF position

S1

1/8ths Seconds

Seconds

S2
