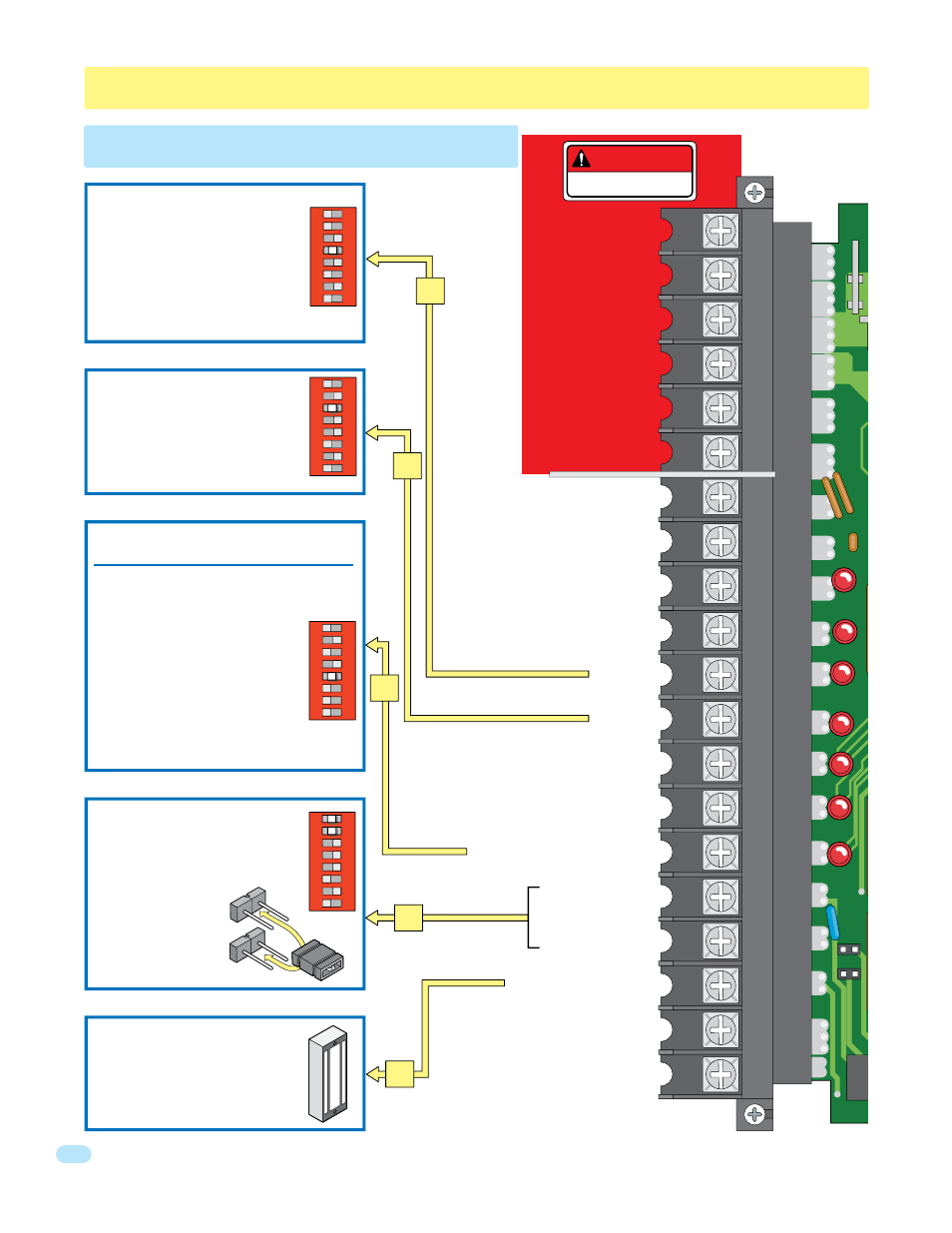

5.1 Main Terminal Description
Low Voltage Common
Low Voltage Common
24 VDC Maglock Power
Dry Relay Contact
Dry Relay Contact
CLOSE - DoorKing 3-Button station ONLY
Open - DoorKing 3-Button station ONLY
Standard Reverse or Shadow
Full Open
Full Open
24 VAC - 250 ma. max.
12 VAC - 150 ma. max.
Pulse 1 - Primary Operator
Pulse 2 - Secondary Operator
Not Used
Motor
Motor
Circuit Board Power
Power - Neutral
Power - Neutral
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
NC
NO
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
DANGER
HIGH VOLTAGE!
SECTION 5 - CIRCUIT BOARD WIRING
•
lf SW 1, switch 3 is ON, functions as a
normal full open input (Normal setting).
•
lf SW 1, switch 3 is OFF, input to
terminal #4 becomes the output from the
EXIT loop detector plugged into the EXIT
loop port. (Used for specialized functions).
SW 1
1
ON
2
3
4
5
6
7
8
12
SW 1
1
ON
2
3
4
5
6
7
8
•
When gate is closed, input will open gate.
•
When gate is open and auto close timer
SW 1, switch 4 is turned ON, input will
re-set and hold timer.
•
When gate is open and auto close timer
SW 1, switch 4 is turned OFF, input will
close gate.
•
When gate is closing, input will reverse gate.
11
This input ONLY functions when gate is fully
opened or in the closing cycle.
•
When gate is closing: SW 2, switch 5 is OFF, an
input to terminal #15 (e.g.: photo beam gets
obstructed) will reverse and open the gate.
Note: If the auto-close timer is ON, when
gate reaches the open position, timer will
not close the gate. Another input
command is needed to reset and close
the gate.
•
When gate is closing: SW 2, switch 5 is
ON, an input to terminal #15 (e.g.: photo
beam gets obstructed) has NO effect on the
gate operator (Set for Shadow input).
SW 2
1
ON
2
3
4
5
6
7
8
15
Operation of the circuit board dry relay
contact is dependent on setting of SW 1,
switches 1 and 2.
Relay contacts can be set for Normally
Open (NO) or
Normally Closed (NC)
operation.
Contact rating is
1 amp maximum
at 24-volts DC.
NC
NO
SW 1
1
ON
2
3
4
5
6
7
8
16
24-volt DC magnetic lock
power is provided constantly
except when the gate is
opening or open (Normally
Closed function). 1 Amp Max.
