Class of Operation Model 6003 - UL 325 Class I
Type of Gate Vehicular Swing Gates Only
Actuator Arm Voltage 24 VDC
Current 3 Amps
Motor RPM 1400
Maximum Thrust 300 daN
Max Gate Weight 300 Lbs.
Max Gate Length 10 Feet
Useful Rod Stroke 14 inches of travel
Cycles Per Hour 10 Per Hour with AC connected (Cycles will vary with battery power ONLY)
Speed 90° in approximately 15 seconds
Control Box Types • 115 VAC 60 Hz Single Phase Input Power - 24 VDC Output Power to Gate Operators
• 24 Volt Solar Input Power - 24 VDC Output Power to Gate Operators
6003 SPECIFICATIONS
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.

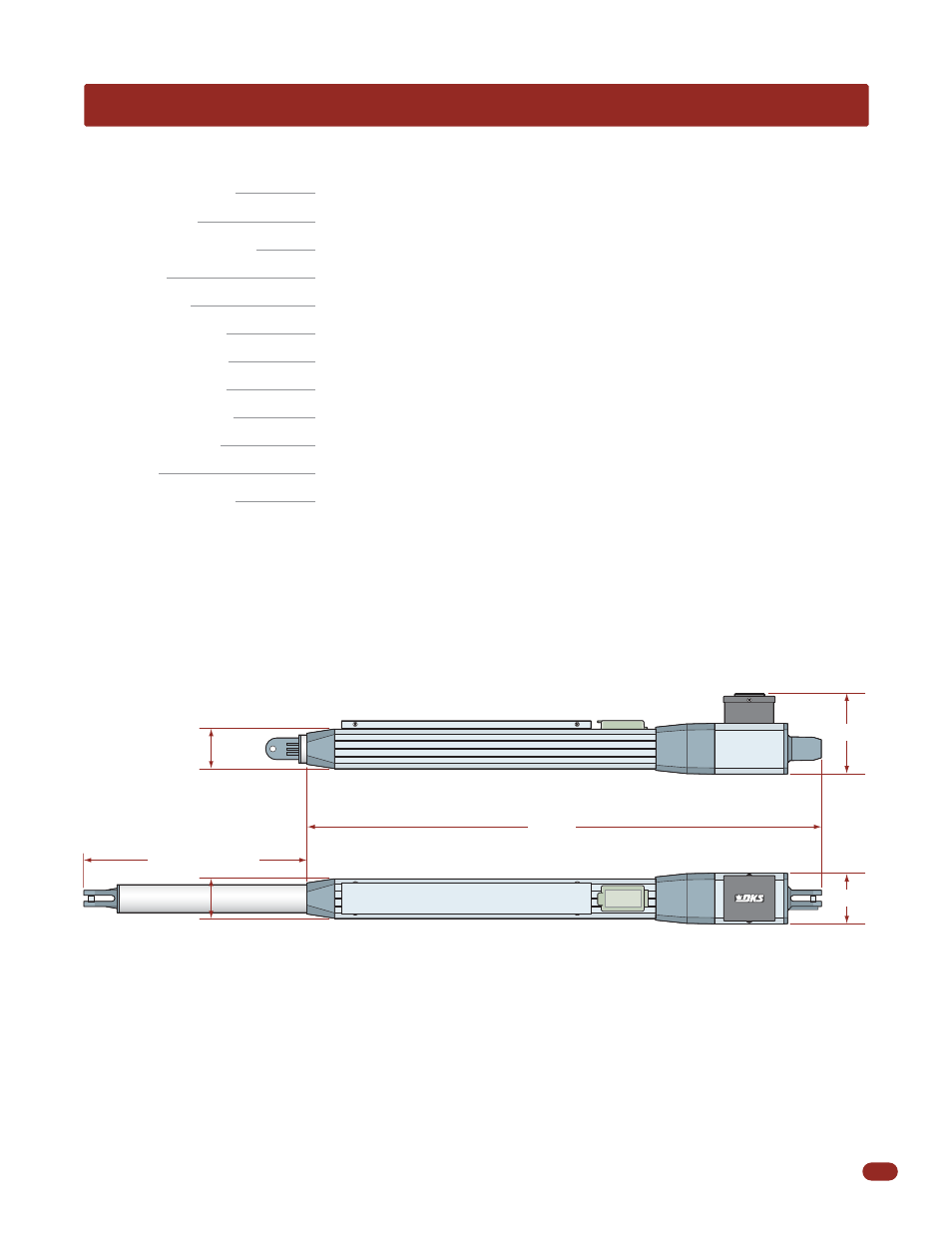

2.5”
Actuator Arm
Rod Extends 14”
32.5”
5”
3.25” 2.5”
