6003-065-Q-2-12 16
Potential
Hazard Area

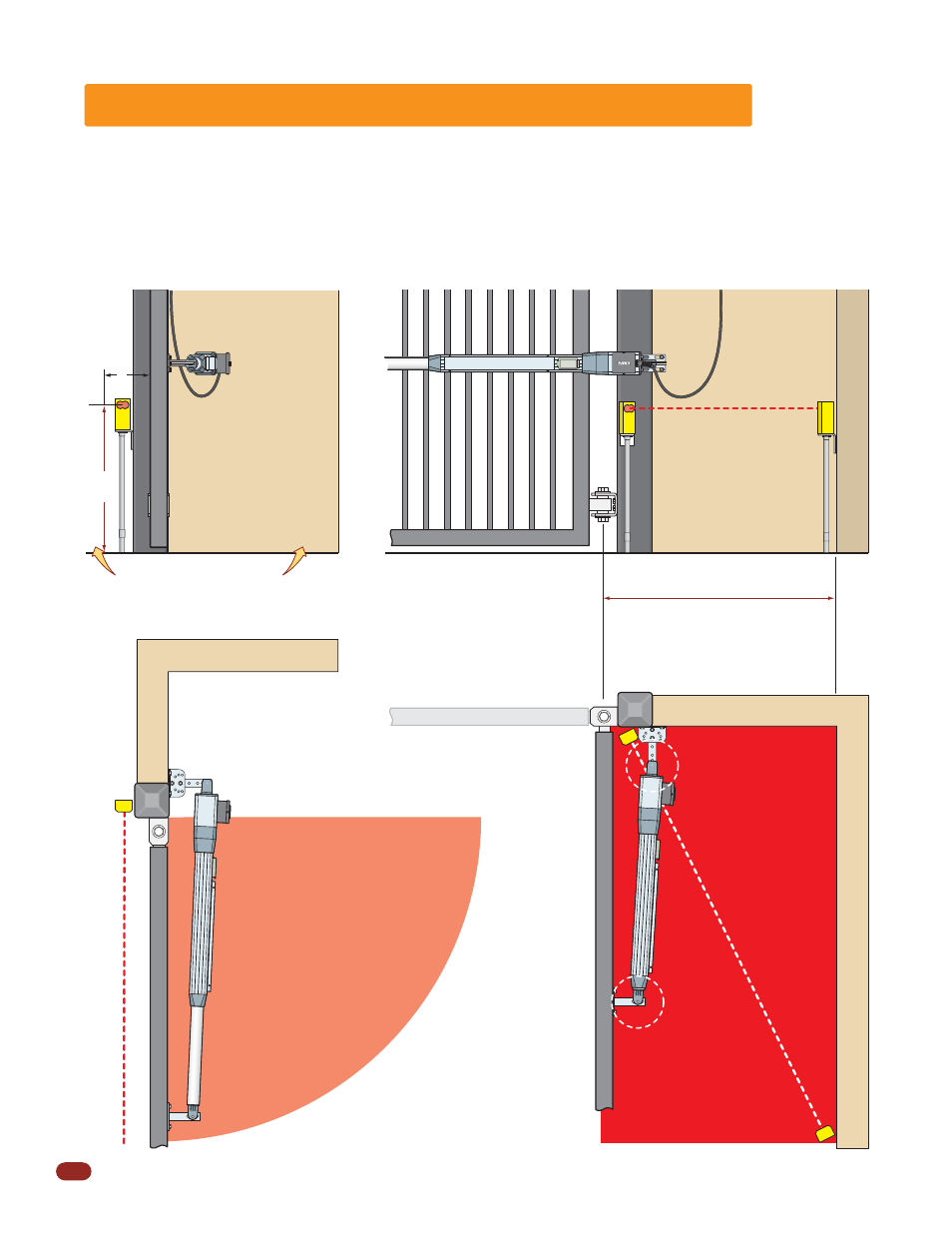

Photo Sensor Positions “Opening to the Inside”
Non-Secure Side
Outside Property
Secure Side
Inside Property
Closing-Direction
Side End View
or less
5”
Gate Frame Closed
Closing-Direction Photo Beam
21”
Typical
Opening-Direction
Side View
Wall
If this space is less than 16 inches,
secondary entrapment protection
is required in this area.
Gate Frame Closed
UL sensor mounted just
below actuator arm cable.
Opening-Direction
Photo Beam
Potential
Entrapment
Area
Top View
Top View
Secondary Entrapment Protection Device:
In addition to the inherent reversing sensor system, the Model 6003 has a 6-pin UL 325 terminal for the connection of photo sensors-Type B1
secondary entrapment protection device required by UL 325 standards (see 115 VAC or Solar control box wiring manual). Entrapment
protection devices must be installed to reduce the risk of injury. Install these devices where the risk of entrapment or a hazard exists while the
gate is moving. Specific installations will vary.
Potential
Pinch Point
Hazard Area
Potential
Pinch Point
Hazard Area
Gate Frame Closed
Gate Frame Open
Gate Frame Closed
Low V
o
ltage
