6003-065-Q-2-12 9
OPEN
CLOSE
INSTALLATION
Manual Key Release
Manually key release the actuator. Powered shaft can be
pulled out.
Powered Shaft
Prior to beginning
the installation of the
swing gate operator, we
suggest that you become familiar
with the instructions and illustrations
in this manual. This will help insure that
your installation is performed in an efficient and
professional manner compliant with UL 325 safety and
ASTM F2200 construction standards.
The proper installation of the vehicular slide gate operator is an
extremely important and integral part of the overall access control
system.
Check all local building ordinances and building codes prior to
installing this operator. Be sure your installation is in compliance with
local codes.

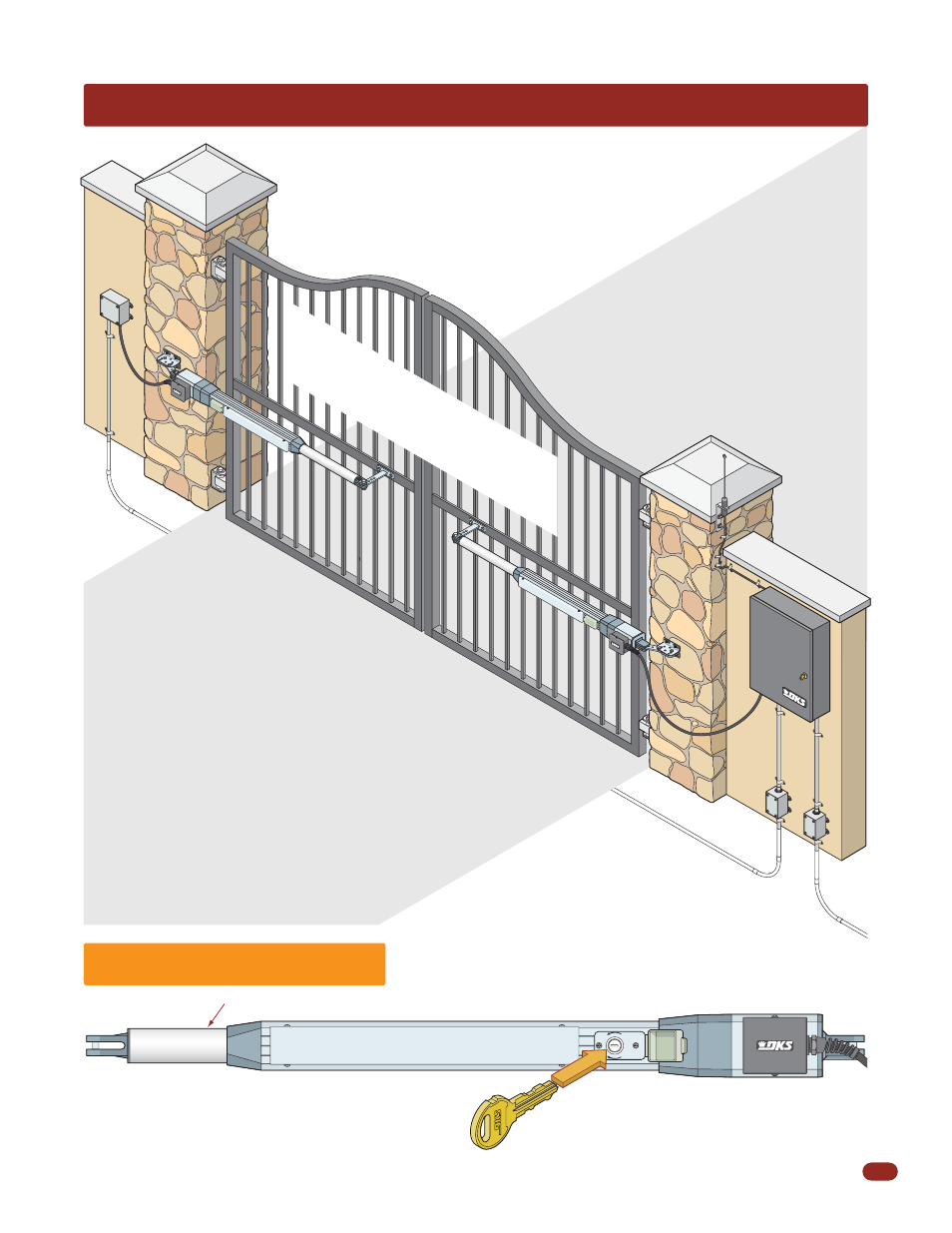

Sample Installation
115 V
AC Standard Control Box
Dual Gate Operators “Opening to the Inside”
Hinge Placement Note: It’s important to consider hinge placement on a pilaster or a thick wall
when installing the gate. Placing hinges close to the corner can eliminate a potential entrapment
area (See Swing Gate Requirements on page 7).
