Controlled Products Systems Group 109773 User Manual

Page 7

–

Led

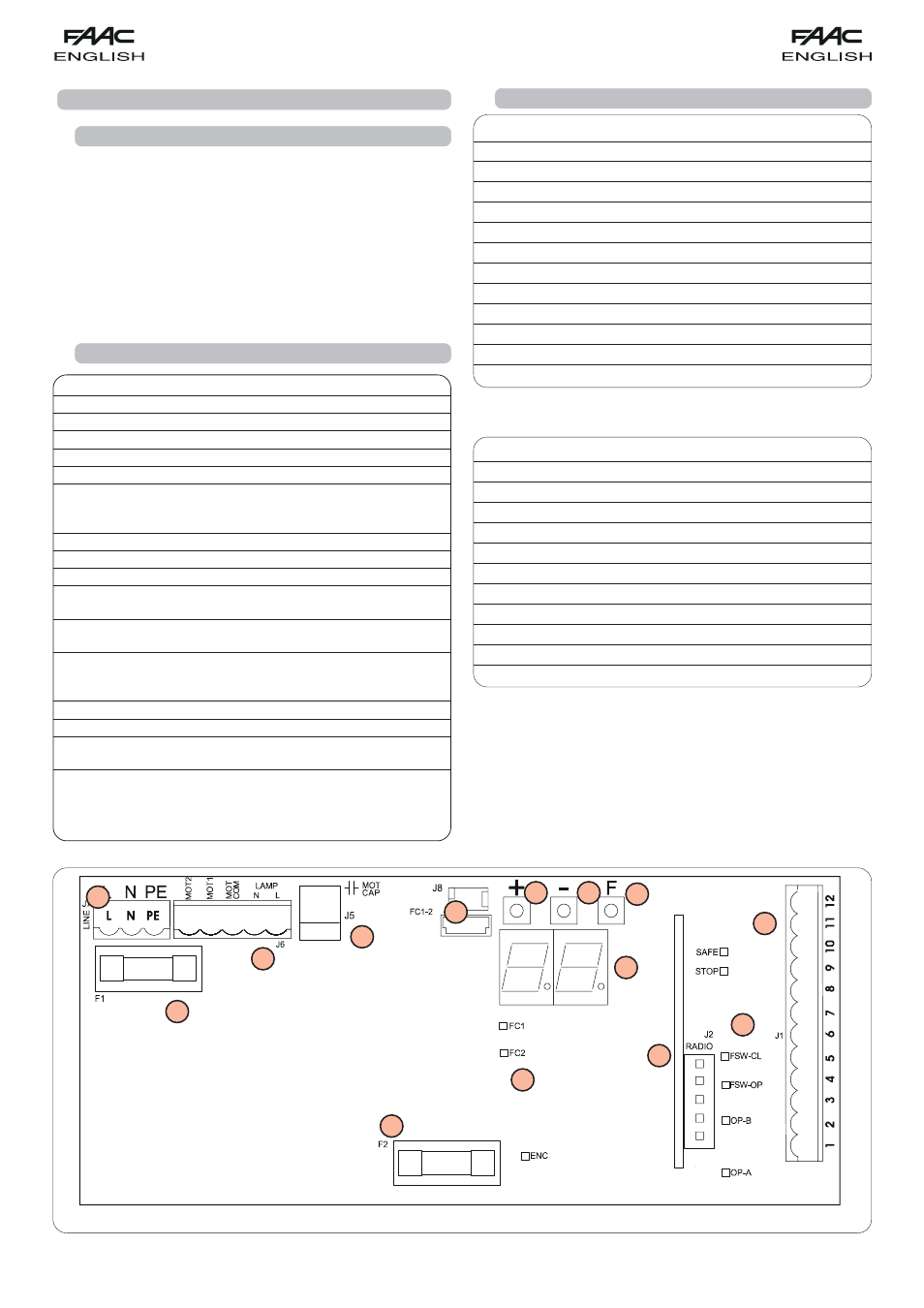

Fig. 22

SIGNALLING AND PROGRAMMING DISPLAY

Led INPUTS STATUS CONTROL LED

LOW VOLTAGE TERMINAL BOARD

CONNECTOR FOR DECODER/MINIDEC/RP RECEIVER

CONNECTOR FOR MOTOR STARTING CAPACITOR

MOTOR AND FLASHING LAMP CONNECTION TERMINAL BOARD

230 Vac POWER SUPPLY TERMINAL BOARD

DOUBLE CONNECTOR J8 - LIMIT-SWITCH QUICK FIT

MOTOR AND TRANSFORMER PRIMARY WINDING FUSE (F 5A)

LOW VOLTAGE AND ACCESSORIES FUSE (T 800mA)

"F" PROGRAMMING PUSH-BUTTON

–

"–" PROGRAMMING PUSH-BUTTON

"+" PROGRAMMING PUSH-BUTTON

OPEN A (total opening)

OPEN B (partial opening)

FSW-OP (opening safety devices)

FSW-CL (closing safety devices)

STOP

SAFE (“edge” safety devices)

- (negative for power supply to accessories)

+24V (supply to accessories)

FSW-TX (negative for emitting photocells - FAILSAFE)

W.L. (negative for indicator light)

J1 CONNECTOR

Power supply V~ (+6% -10%)

230

Absorbed power (W)

Motor max. load (W)

1000

Accessories max. load (A)

0,5

Operating ambient temperature

-20 °C +55 °C

Protection fuses

2 (see fig. 22 and par. 5.3)

Function logics: Automatic / “Stepped” automatic / Semi-automatic / Safety
devices / Semi-automatic B / Dead-man C / “Stepped” semi-automatic / Mixed B/C
logic

Work time

Programmable (from 0 to 4,1 min.)

Pause time

Programmable (from 0 to 4,1 min.)

Thrust force

Adjustable over 50 levels

Terminal board inputs: Open - Partial Open - Opening safety devices - Closing safety
devices - Stop - Edge - Power supply+Earth

On-connector inputs

Opening and closing limit-switch -

Motor capacitor

Terminal board outputs: Flashing lamp - Motor - 24 Vdc accessories power supply
- 24 Vdc indicator-light / Timed output / Electric lock command - 'traffic lights' - Fail
safe

Rapid connector

5-pin card connection for Minidec, Decoder or RP receivers

Programming

3 keys (+, -, F) and display, "basic" or "advanced" mode

Basic mode programmable functions: Function logic - Pause time - Thrust Force
- Opening-closing direction

Advanced mode programmable functions: Torque at initial thrust - Braking - Fail safe
- Pre-flashing - Indicator-light/Timed output/Electric lock or 'traffic lights' command -
Opening and closing safety devices logic - Encoder/ Anti-crushing sensitivity -
Decelerations - Partial opening time - Work time - Assistance request - Cycle counter

5.2.

TECHNICAL SPECIFICATIONS

5.1.

WARNINGS

Important: Before attempting any work on the control board
(connections, maintenance), always turn off power.

- Install, upstream of the system, a differential thermal breaker with

adequate tripping threshold.

- Connect the earth cable to the terminal on J7 connector of the board,

and to the bush on the operator (figs. 22 and 40).

- Always separate power cables from control and safety cables (push-

button, receiver, photocells, etc.). To avoid any electric noise, use
separate sheaths or a shielded cable (with earthed shield).

5. CONTROL BOARD 780D

5.3.

LAYOUT AND COMPONENTS
