The CCU-2 Channel Control Unit is used to control functions in a Land Mobile
Radio System such as:
Main / Standby System Selection
The CCU-2 module allows up to six independent consoles to control a common
function. It allows all the consoles to force the function to Main or Standby and
provides feedback to the consoles to indicate the state of the function. If one
console fails, the other may continue to control the system functions.
The CCU-2 module provides status indication of each function on the MCN
(Monitoring and Control Network), similar to a CIB module. It also allows the
function to be forced from a PC running the MCN Remote Comparator Display
(MCNRCD) software.
The CCU-2 module is an MCN GPIO-1208L General Purpose I/O Module with
special firmware.
J1
E1 A
E1 B
8
9
7
A
B
C
D
EF
0
12
3
4
5
6
8
9
7
A
B
C
D
EF
0
12
3
4
5
6
8
9
7
A
B
C
D
EF
0
12
3
4
5
6
1
2 3 4
ON
PWR
ACT
A
11 12
10
9
8
7
6
5
4
3
2
1
RESET
DC IN
OPTION
MODULE
GROUP
IN
OUT
NETWORK
SVC
ERR
B
1
2 3
4 5
6 7
8 9 10 11 12
Front View
Rear View
CA-80851-100

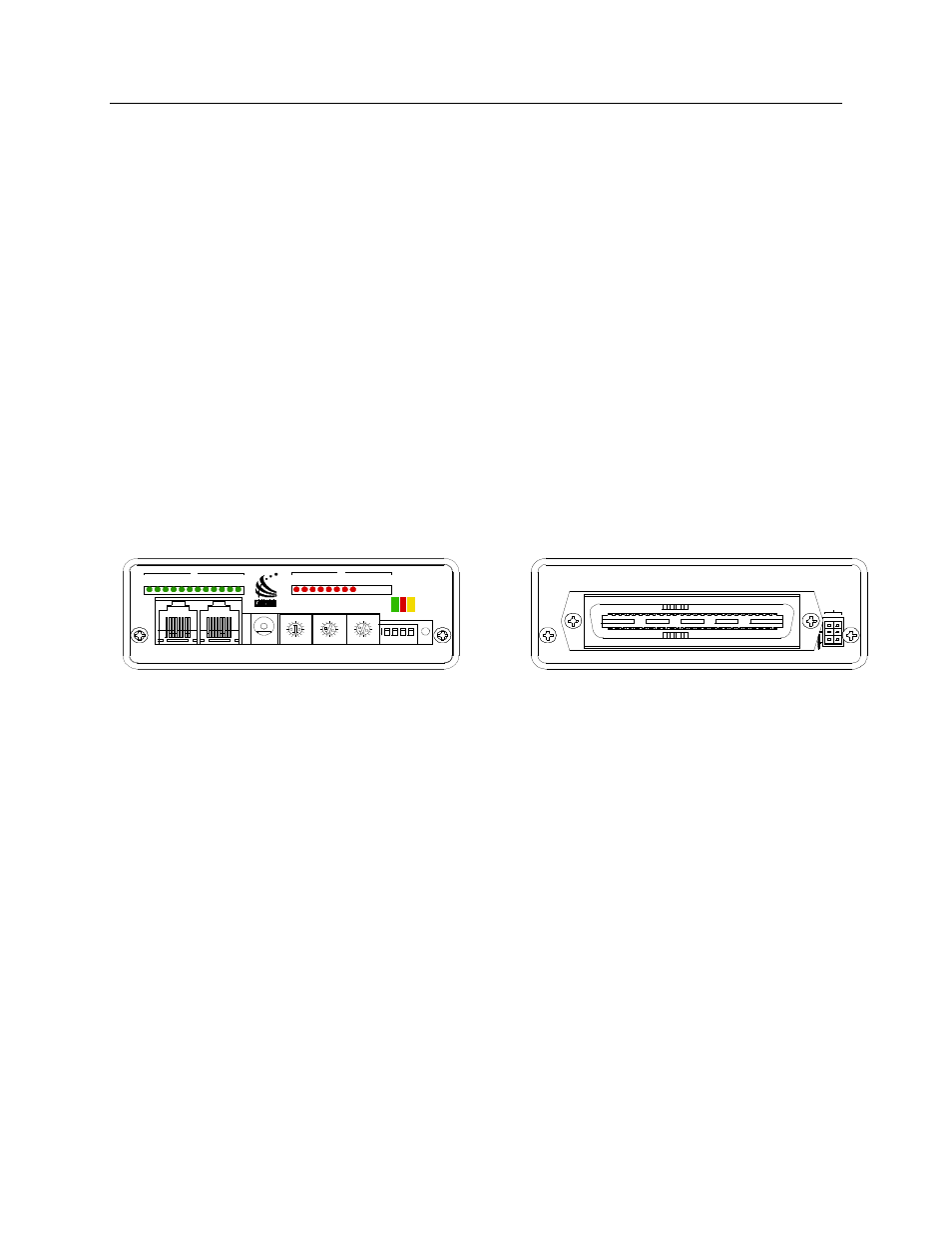

Figure 1 – CCU-2 Module
