CHIB Hardware Reference LEDs
CTI Products, Inc.
68-11662-100
8
6. LEDs
Net Act / Rst
Power Cons Link
Vote Hold 1 2 4 8 16 32 x x
IN OUT NETWORK
DC IN
OPTION A RESET SVC
1 2 3 4 5 6 7 8 ON
PRODUCTS, INC.

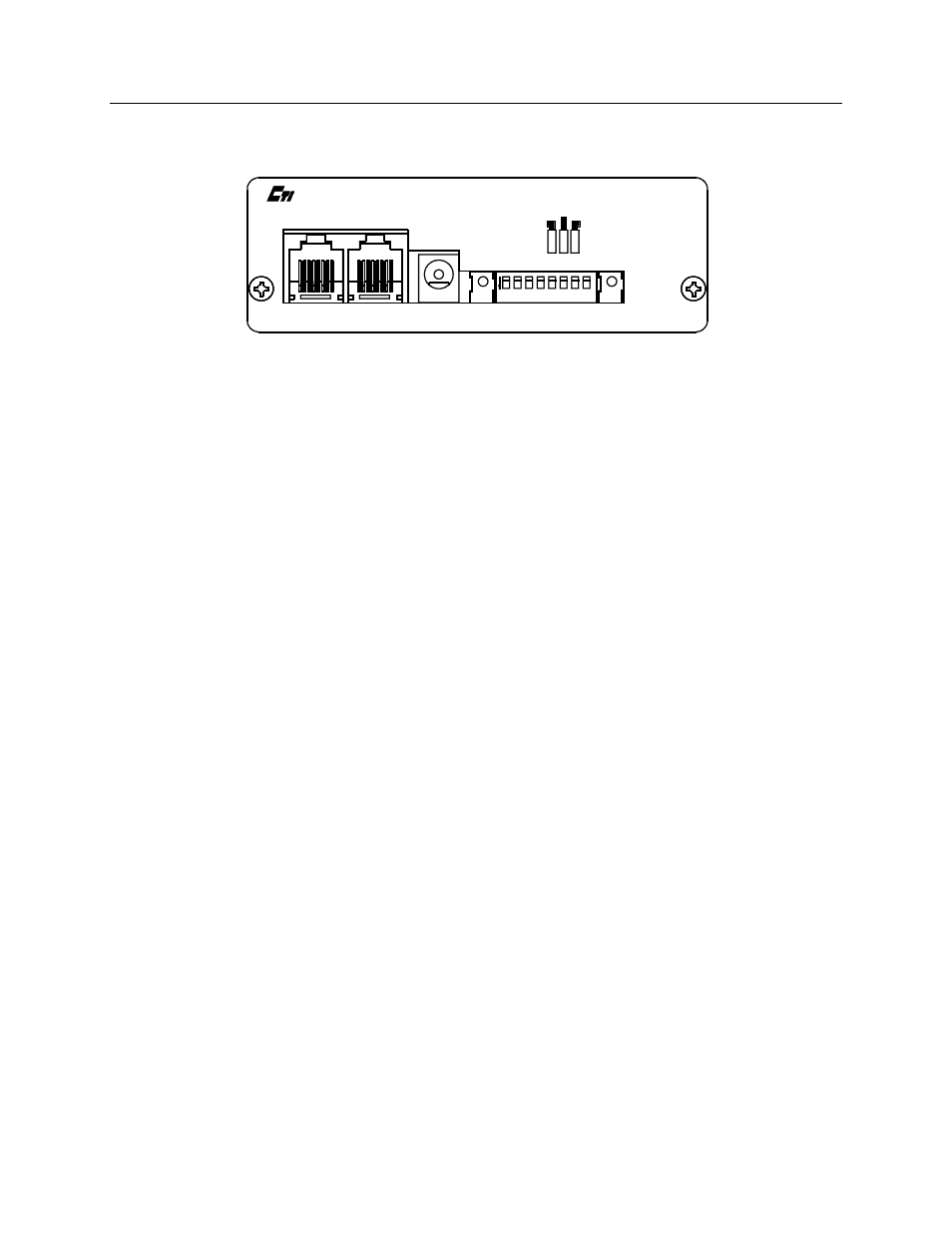

There are 3 front-panel LEDs:
Power LED (Green)
Lit when proper power is applied.
Blinks if the voltage is low.
Network Activity / Reset (Red)
This LED is active upon reset. It also blinks when traffic is received from the
AIB/CIB and when messages (button presses) are received from the console.
Console Link (Yellow)
This LED blinks rapidly during the first communications with the console, as the
console and CHIB module are synchronizing. It then stays on as long as the
console link is okay. If the link to the console drops, this LED goes out.
