9.2 Example 2 - PC Based Monitoring and Control
Figure 16 shows a system that provides local monitoring and control of up to 8
receivers utilizing a PC as the operator interface. CTI Product’s Remote
Comparator Display software running on the PC allows each receiver of the
comparator to be individually controlled.
COM 2
COM 1
CA-80019-100
CIB 1
COMPARATOR
HIB
T
P/S
IN
OUT IN
OUT
T
LOCAL PC

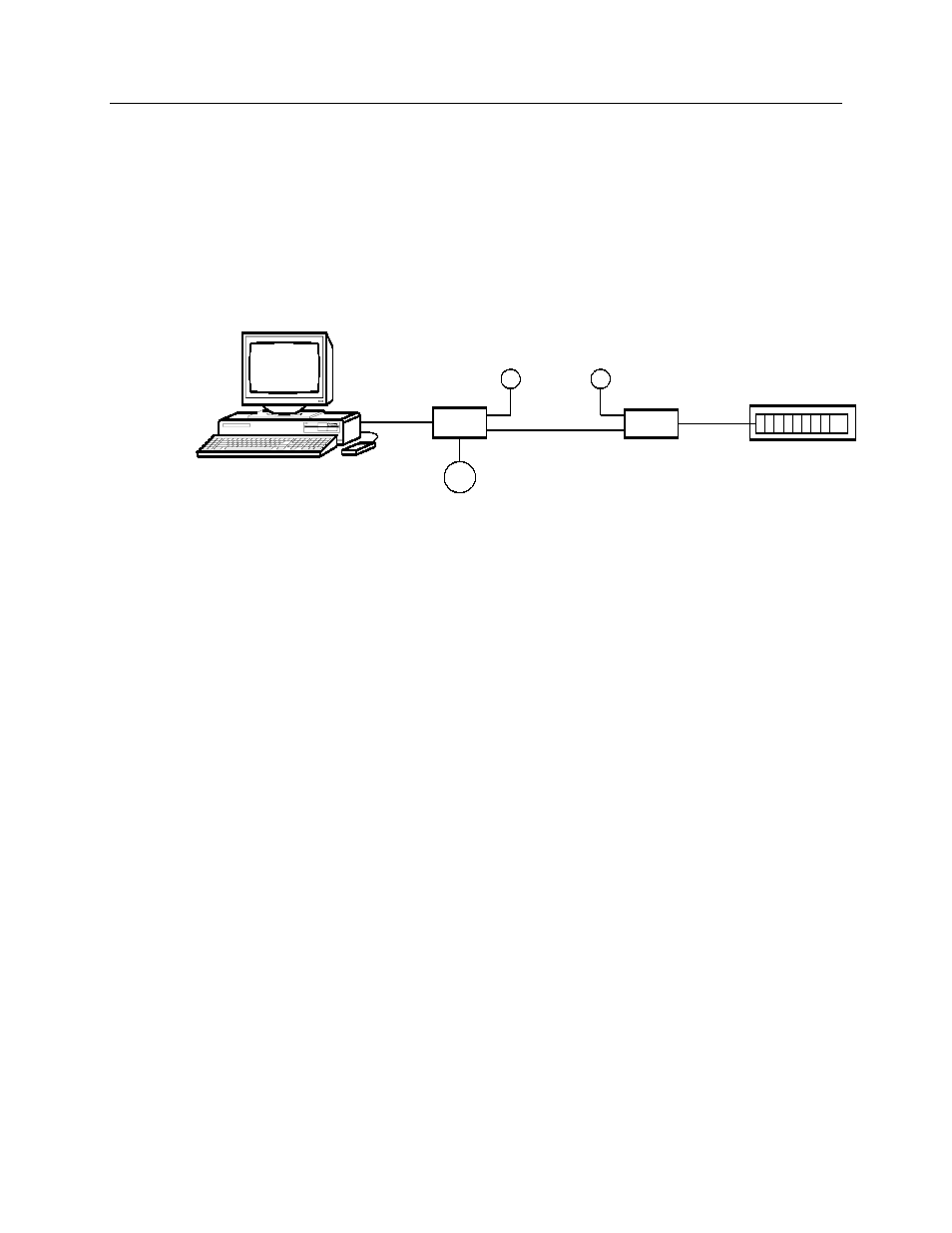

Figure 16 - 8 Receivers with PC Display
The Remote Comparator Display Software will also work with AIBs and ASTRO-
TAC™ Comparators with up to 8 receivers per comparator.
