9. System Examples
The following examples show how MCN modules are combined to form various
systems, as well as the capabilities of those systems.
9.1 Example 1 - 8 Receivers with a Console Display
Figure 15 shows an MCN system that provides monitoring and control of up to 8
receivers connected to a Motorola ASTRO-TAC™ Comparator. Only 8
receivers are supported because only one IIB module is in the system. To control
all 13 receivers of the comparator, you would simply add another IIB module to
the system and connect this IIB to the console. This additional IIB has to be
configured to operate with receivers 9 through 13.
CA-80016-100
IIB
CONSOLE
ELECTRONICS
COMPARATOR
ASTROTAC
AIB
OUT
P/S
IN
CONSOLE
IN
OUT
T
T

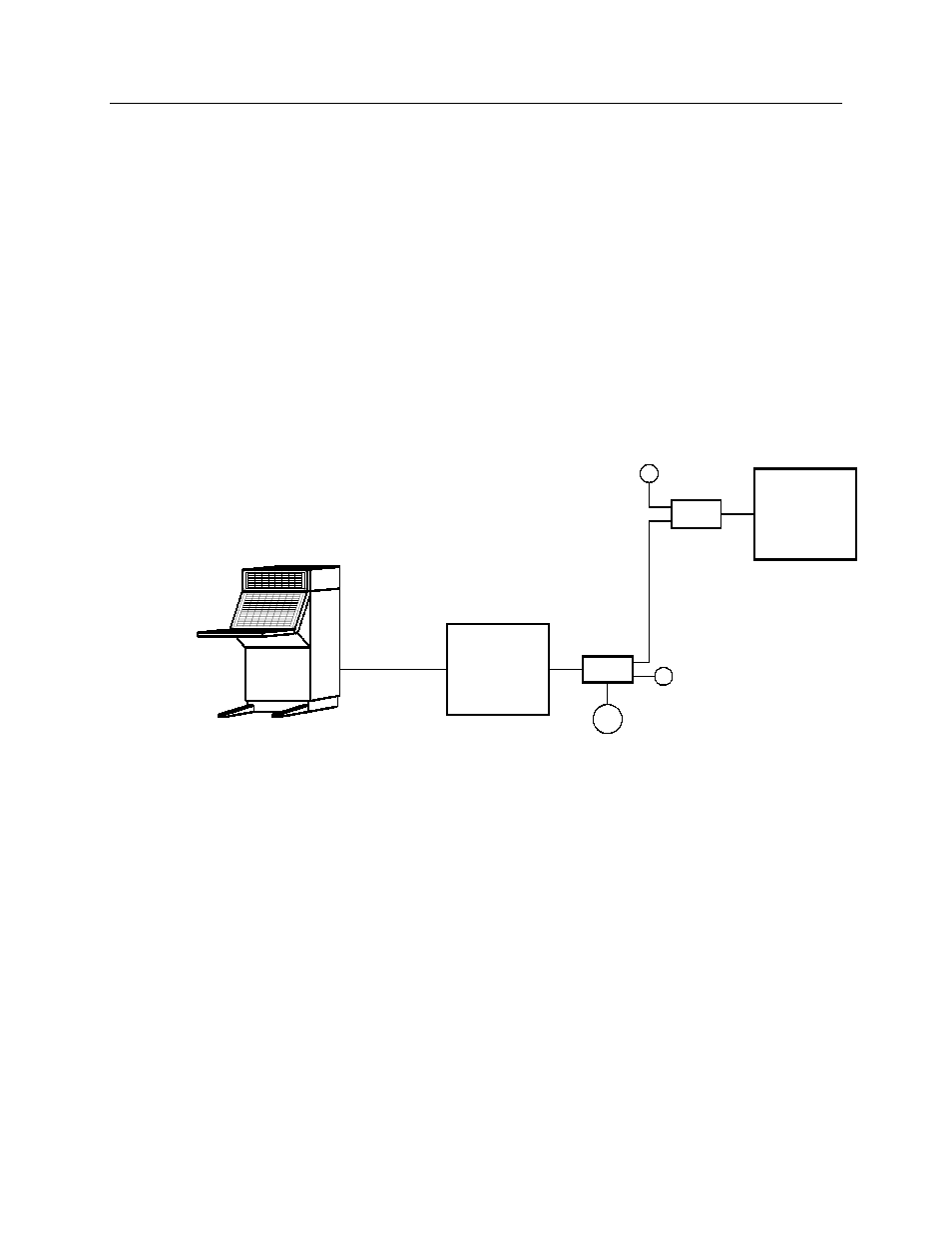

Figure 15 - 8 ASTRO-TAC™ Receivers with Console Display
