Configuring the CSC-7850 via the OSD MENU Screens
23
8.6 The Geometry Screen
Figure 14 and Table 10 define the Geometry screen, allowing the user
flexibility in positioning his projector relative to the screening surface.

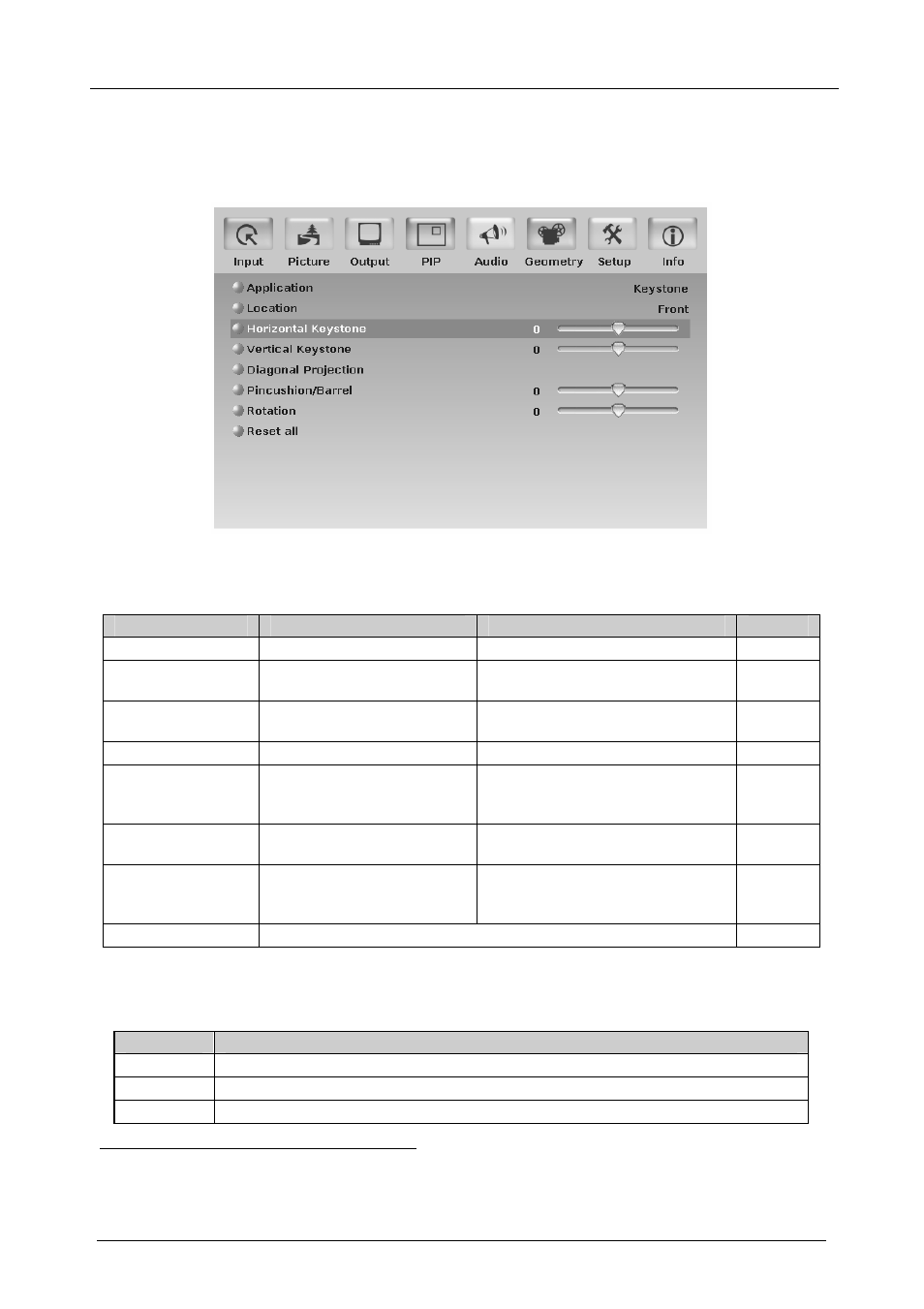

Figure 14: Geometry Screen
Table 10: Geometry Screen Functions
Setting Function Selection/Range Default
Application Select the output application Keystone, Anyplace or Rotation Keystone
Location Select the location of the
display
Front, Rear, Ceiling or Rear ceiling Front
Horizontal Keystone Adjust the horizontal keystone 1 -40 to 40 0
Vertical Keystone Adjust the vertical keystone 2 -30 to 30 0
Diagonal Projection move the location of each
corner of the display
separately
Top Left, Top Right, Bottom Left,
Bottom Right or Reset (to reset
diagonal projections settings)
Top Left
Pincushion/Barrel Adjust the pincushion or barrel
appearance of the screen
-20 to 20 0
Rotation Rotate the display by 180
degrees clockwise or
counterclockwise
-180 to 180 0
Reset all Resets the geometry values to their default value
Table 11 defines the settings available for each application:
Table 11: Available Settings for Each Application
Application Available Settings
Keystone Location, horizontal keystone, vertical keystone, pincushion/barrel and Reset all
Anyplace Location, Diagonal Projection and Reset all
Rotation Location, pincushion/barrel, Rotation and Reset all
1 If the projector is located at an angle to the left or right of the screen
2 If the projector is located at an angle above or below the screen
