Configuring the CSC-7850 via the OSD MENU Screens
17
8 Configuring the CSC-7850 via the OSD MENU Screens
The OSD superimposes a menu on the screen from which you can configure
and control each input signal on your CSC-7850, using the MENU, ENTER,
, , and OSD buttons on the front panel and the remote transmitter.
To use the OSD menus:
1.
Select the desired input signal.
2. Use the menu buttons as follows:
Press the MENU front panel OSD button or the MENU key on the
infra-red remote control transmitter (see Figure 7) to display the main
MENU screen 1 , which displays eight interactive icons (see Figure 8)
Press the MENU front panel OSD button or the MENU key on the
infra-red remote control transmitter to move to the previous level in the
OSD screen (Esc)
Press the UP or DOWN buttons to select menu icons and then press
ENTER
Use + and – buttons to increase and decrease the (numerical) rate
respectively

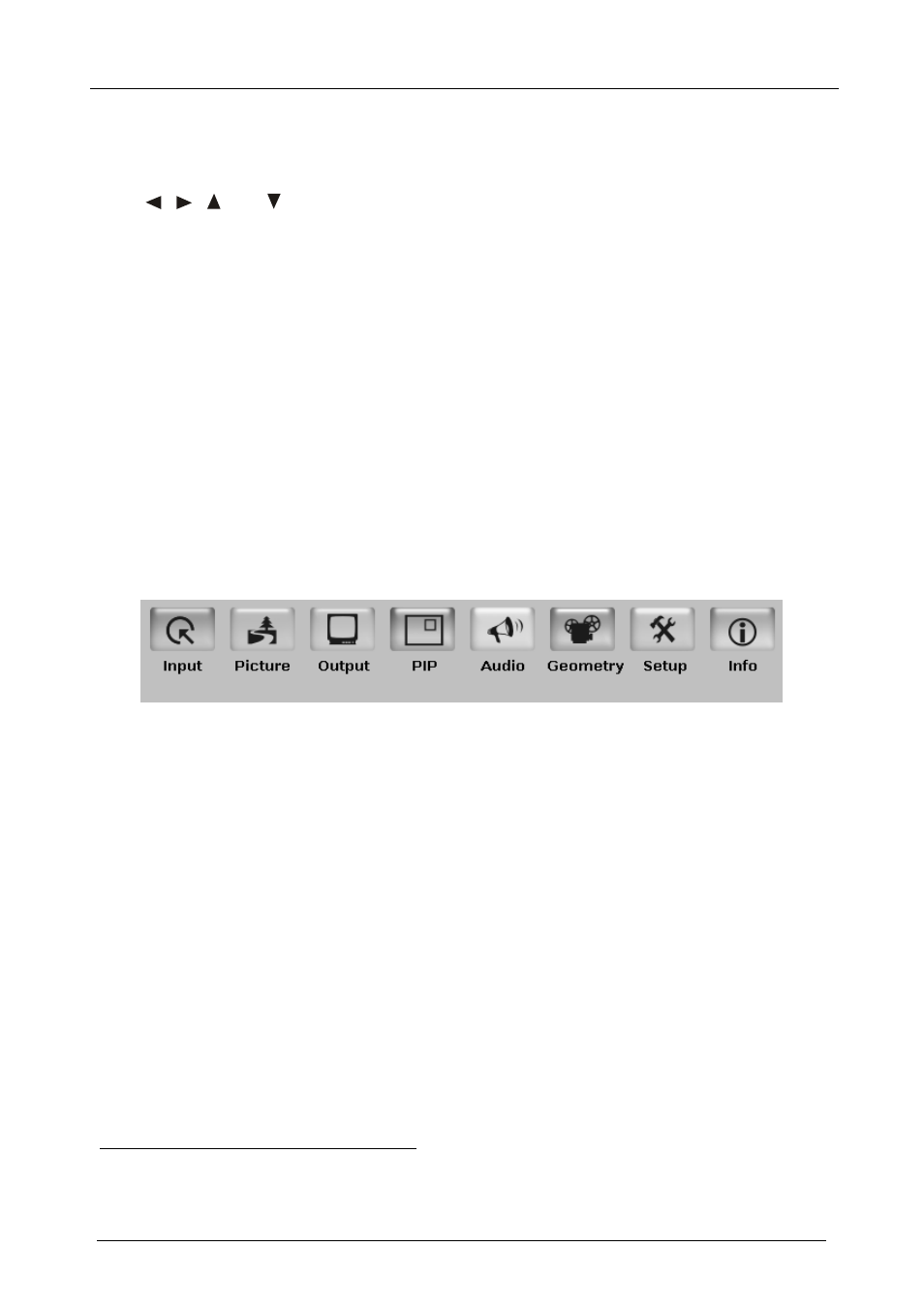

Figure 8: MENU Items
1 Each icon represents a Level 1 function. In addition to Level 1, the OSD structure includes Level 2 (a subset of level 1),
Level 3 (a subset of level 2), Level 4 (a subset of level 3) and a numerical range
