BDx-Series Installation
▪ Private IP Subscriber

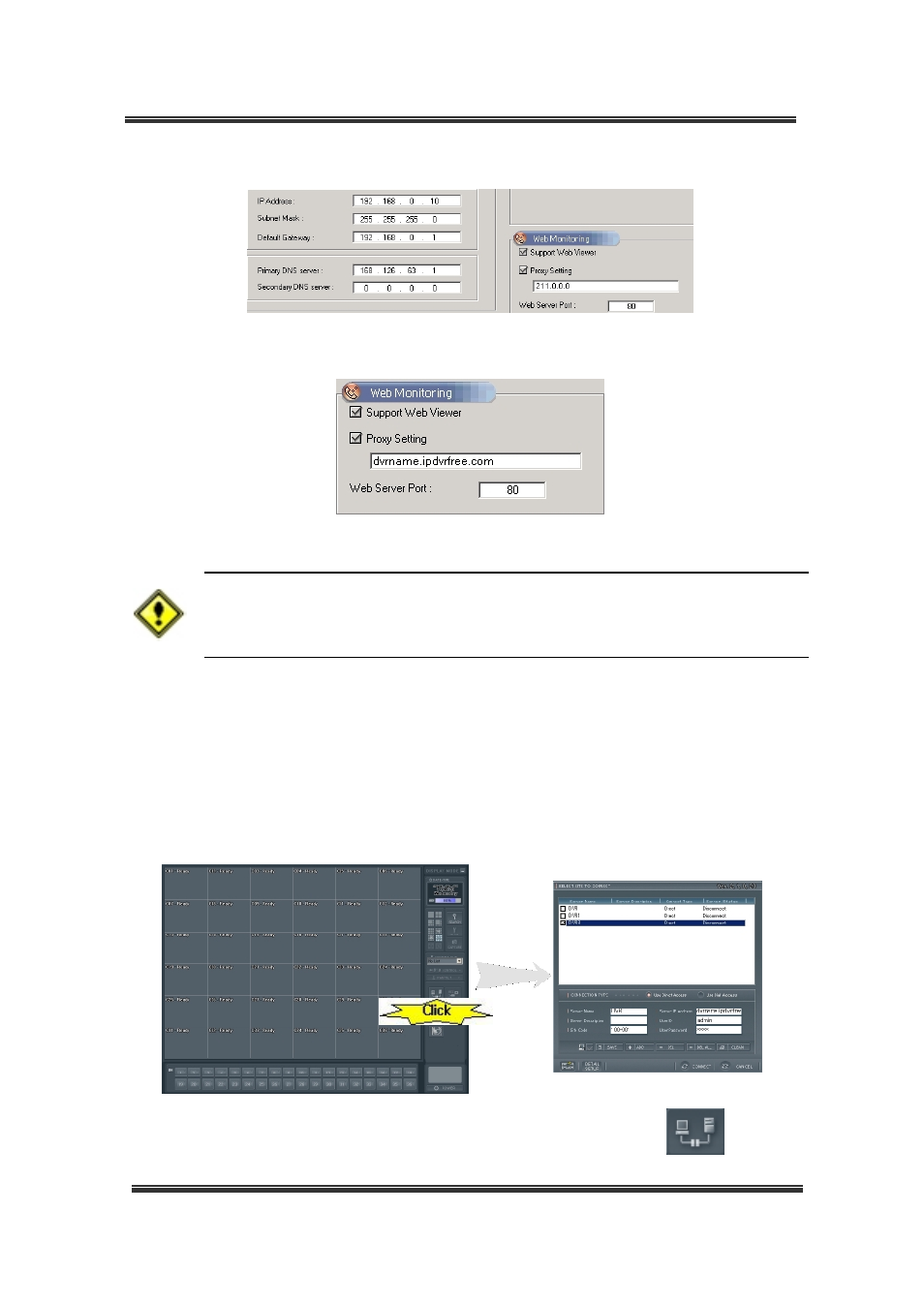

Private IP requires ‘Proxy Setting’ for web monitoring. Insert public IP address of IP sharer or
router that has public IP address.
You can insert domain name instead of IP address.
You have to setup Port forwarding or DMZ of each of the IP sharer or router.
BestCap DVR uses default port of 80, 7074, 7075, 7076, 7077, 49557, 49559 and
49560 for streaming. (Look up their user manual for details)
Web Server Port : You can input other port number if default port number of ‘80’ is not workable.
5.2 Connecting from Remote place
5.2.1 Use of the network client software
DVR servers should be registered on the client software due to connect.
Input a DVR information in the DVR server list window by clicking connection button.
