19

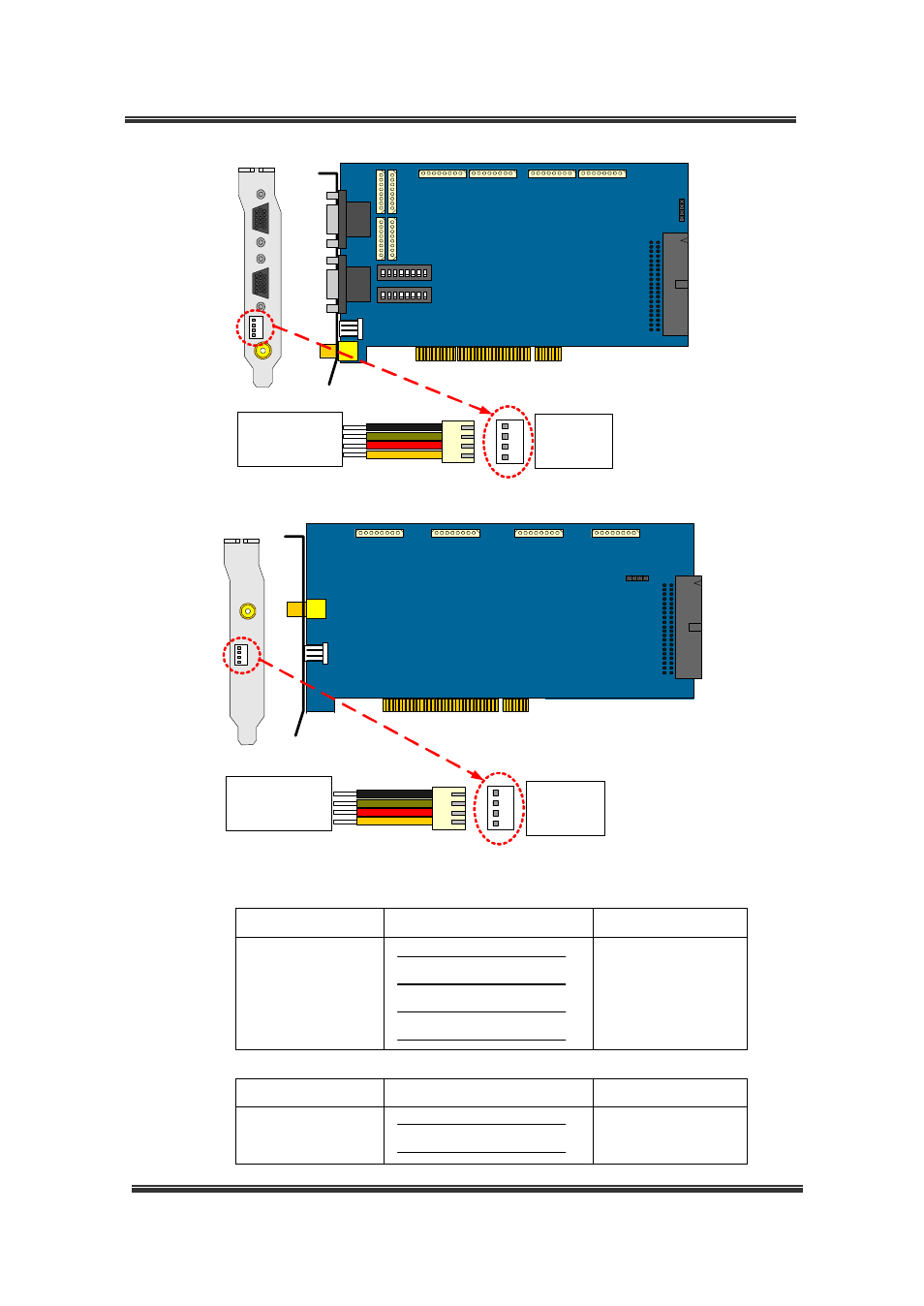

BDx-Series Installation
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
RS422 / 485 cable
1. Rx + or TRx +
2. Rx - or TRx -
3. Tx +
4. Tx - 1. Black : RX+ / TRX+
2. Brown : RX- / TRX-
3. Red : TX+
4. Orange : TX-
RS422 / 485 cable
1. Rx + or TRx +
2. Rx - or TRx -
3. Tx +
4. Tx -
1. Black : RX+ / TRX+
2. Brown : RX- / TRX-
3. Red : TX+
4. Orange : TX-
Camera PTZ RS-422 Capture Board
TX+ RX+
TX- RX-
RX+ TX+
RX- TX-
Camera PTZ RS-485 Capture Board
TRX+ TRX+
TRX- TRX-
