BDx-Series Installation

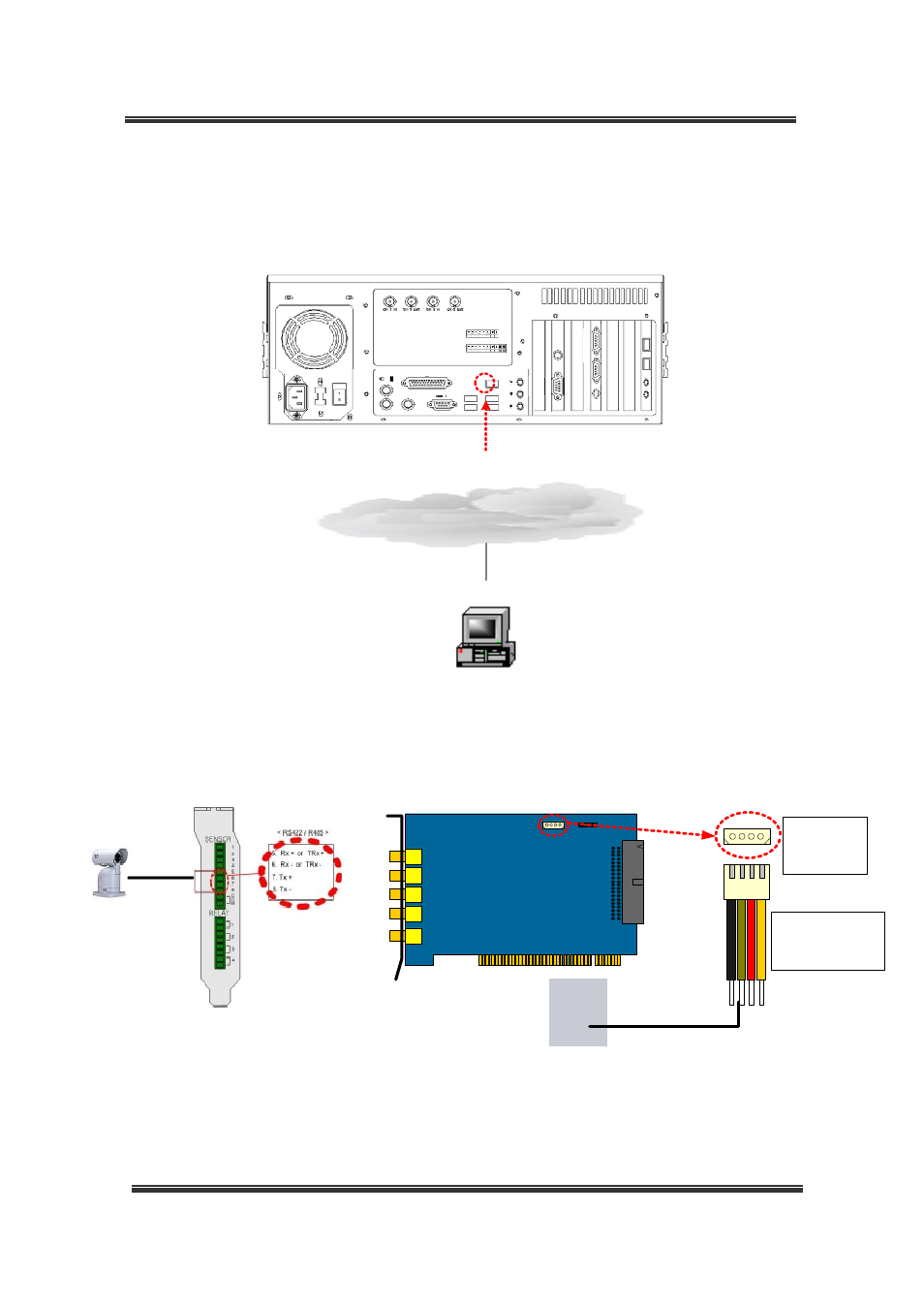

2.2 Connecting Hardware
2.2.1 Connecting Network
LAN/xDSL Port
Client PC
Internet
2.2.2 Connecting camera PTZ
RS422 / 485 cable
4 3 2 1
1. Rx + or TRx +
2. Rx - or TRx -
3. Tx +
4. Tx -
1. Orange: RX+ / TRX+
2. Red : RX- / TRX-
3. Brown : TX+
4. Black : TX-
