15
BDx-Series Installation

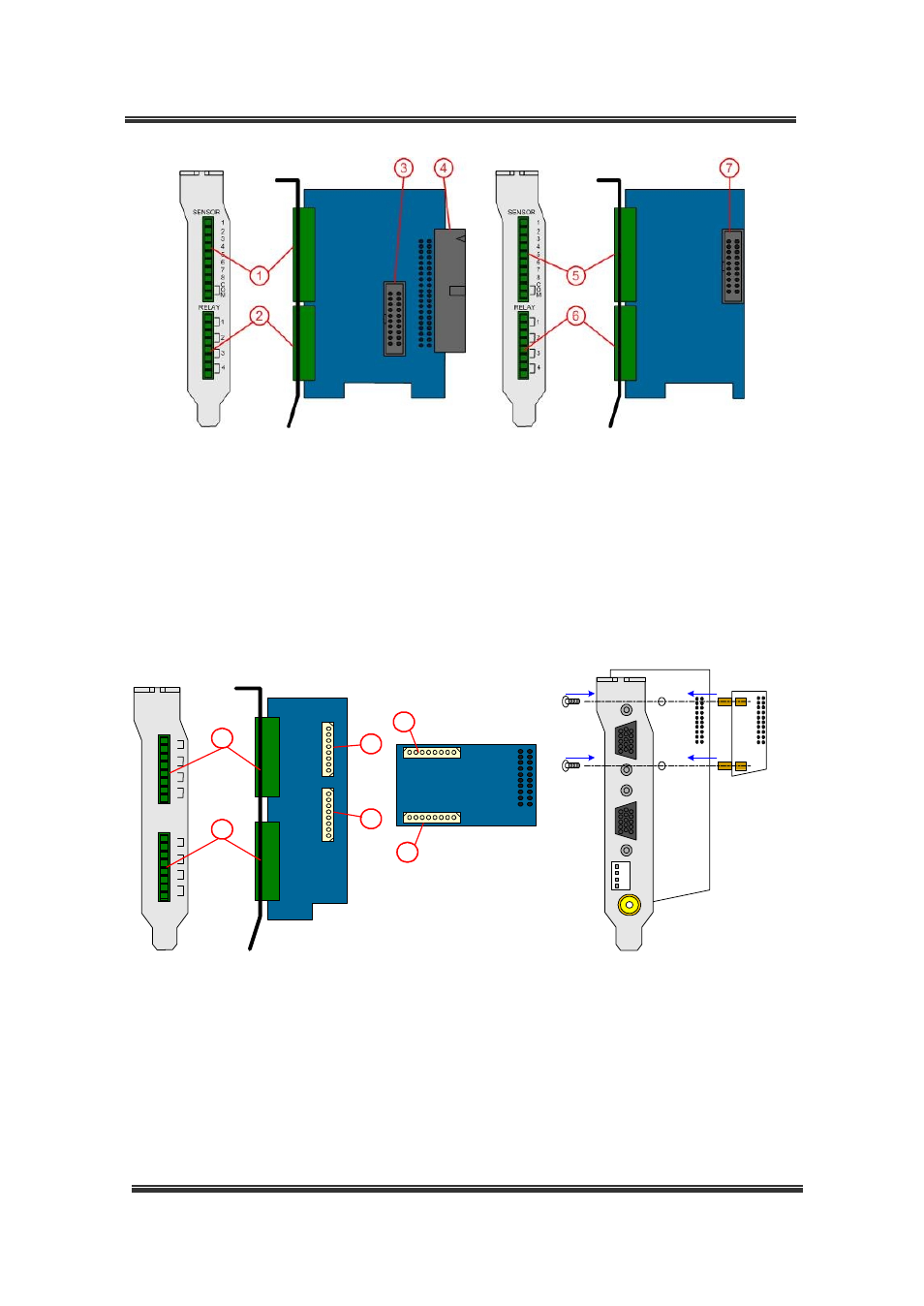

<1 st DIO Board> <2 nd DIO Board>
① Sensor Input connector : Input 1 ~ 8 and common
② Alarm Output : Output 1 ~ 4. Dry contact output
③ DIO Connector : connecting to the 2 nd DIO board
④ DIO Connector : DIO control port. connecting to the capture board
⑤ Sensor Input connector : Input 9 ~ 16 and common
⑥ Alarm Output : Output 5 ~ 8. Dry contact output
⑦ DIO Connector : connecting to the 1 st DIO board
5
6
AUDIO
6
5
7
8
2
1
3
4
G
G
G
G
G
G
G
G
1
2
3
4
① Audio Input Connector : Line level Input 1 ~ 4
② Audio Input Connector : Line level Input 5 ~ 8
③ Audio Input Connector(Internal) : connecting to the Audio A/D board, Audio 1~4
④ Audio Input Connector(Internal) : connecting to the Audio A/D board, Audio 5~8
⑤ Audio Input Connector(Internal) : connecting to the Audio Input board, Audio 1~4
⑥ Audio Input Connector(Internal) : connecting to the Audio Input board, Audio 5~8
