2.3.2 Camera Module – Rear

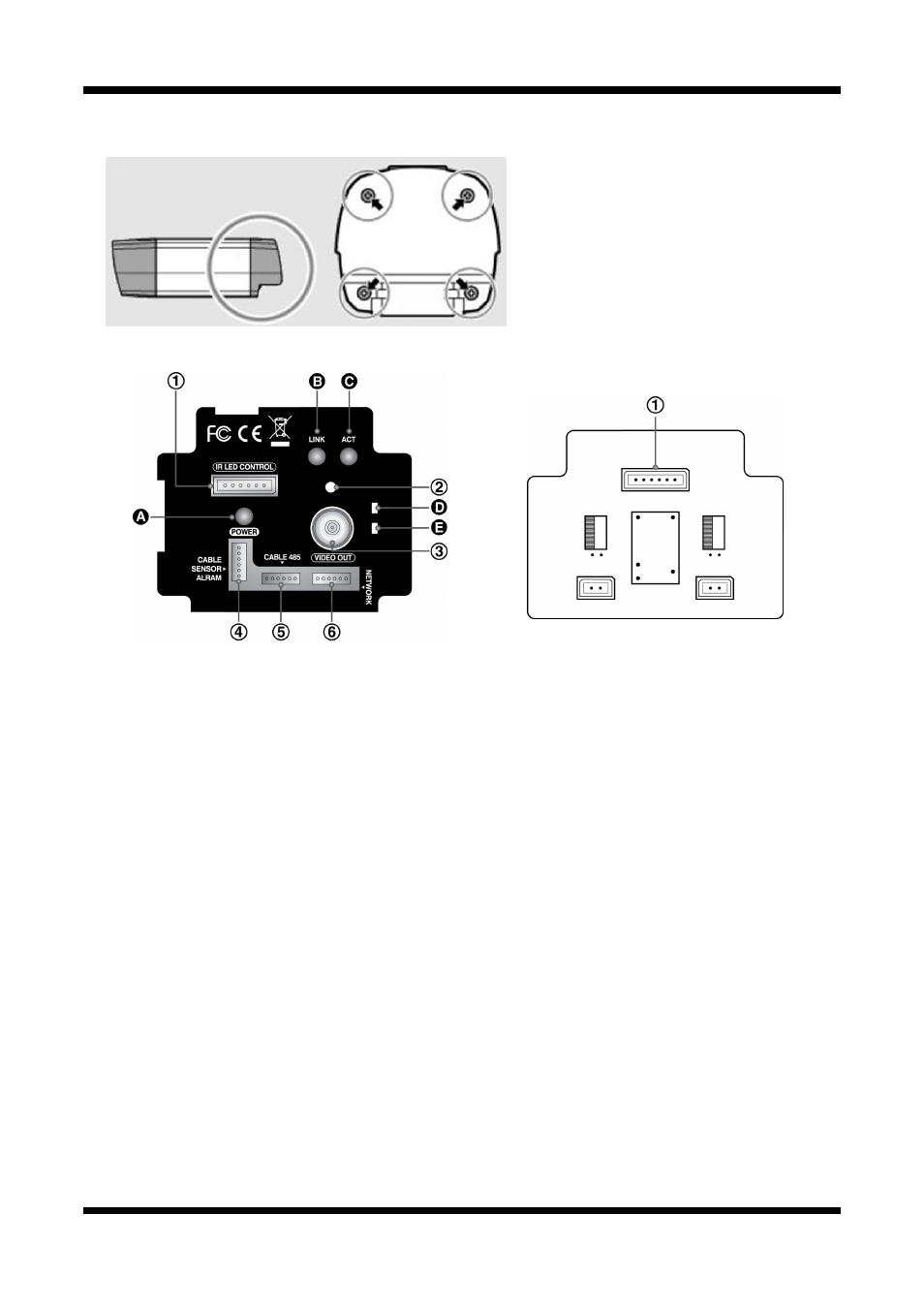

As shown in the picture above, open up the rear cap by undoing the four screws on the corners.
Main body Rear body
① Illuminator Control Connector : controls the IR LED units
② Factory Reset Button : Press and hold for more than 3 seconds while power is on to recall factory
default settings
③ Video Out Jack : Analog Video output. Use this output to monitor the analog video signal during
installation.
(Enable Video Out at menu screen to turn this video on)
④ CABLE IN 1 ( Alarm / Sensor / Power IN / Video out ) – [ Class 1 Only ]
Alarm Input/ Output, DC12V Input, and Analog Video Output
⑤ CABLE IN 2 ( RS485/Power IN/Video out ) – [ Class 2 Only ]
This connects to control P/T(Pan/Tilt) device by RS485 interface
⑥ Network Input Cable: Ethernet Input. Connects to a 10Mbps or 100Mbps LAN via waterproof RJ45
Connector.
Ⓐ Power LED : Lights up Red when 12V DC power is connected.
Ⓑ Link LED : Lights up Yellow when the network is properly connected.
Ⓒ ACT LED : Lights up Green when the XNET is connected to 100Mbps LAN. Will not light up at 10Mbps
LAN. This will also blink green when there is a network collision.
Ⓓ SYSTEM LED : Blinks Green to indicate a normal operation.
Ⓔ EVENT LED : Lights up Green when ALRAM OUT is activated.
