7

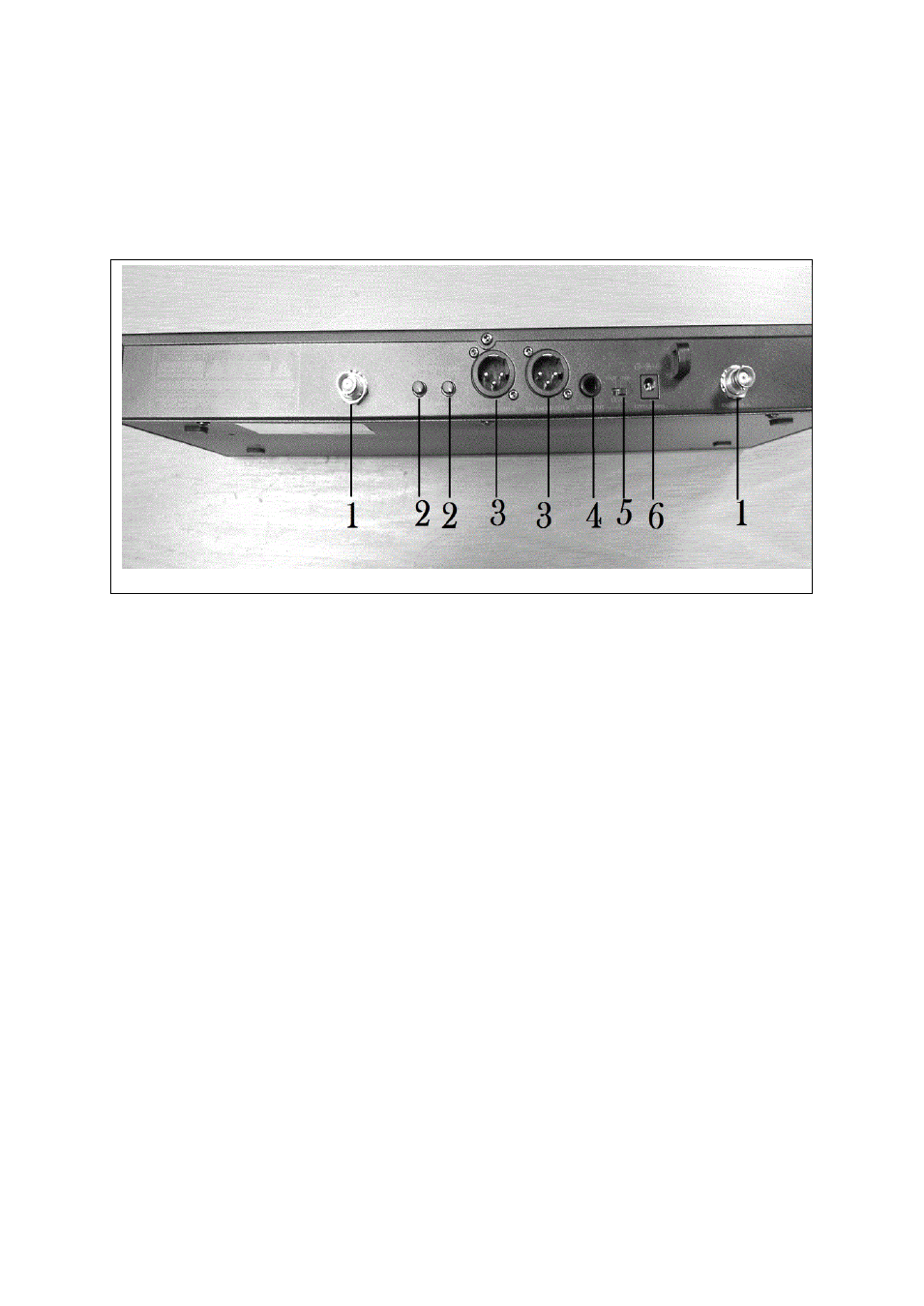

Rear Panel connections

1. BNC Antenna connections to A / B receiver.

2. Audio output volume controls for A and B channels.

3. XLR balanced outputs A / B receiver.

4. Mixed audio output (mono). Output can be connected to an external amplifier / mixer / guitar

amp or recorder.

5. 2 stage preset attenuation 0dB / 10dB. Used to limit audio out from the mixed audio out

socket.

6. 12 Volt DC input socket. Connect the supplied AC adaptor to this socket.
