Clock Audio CW 200 - Manual (Page 11)

10
Powering up
1. Make sure your external equipment is connected and powered up
2. Press the power button on the CW200 Receiver. The two receiver displays will light up and
show the receiving frequencies.
3. Briefly press the power button on the transmitters. The display will light up and the frequency
will show in the display it should be the same as one of the receivers frequency display.
4. The transmitters and receivers are factory set to CH 04 and CH 46. The transmitters are
factory set to latching. Speak into the transmitter and audio should be heard. Briefly press the
power button on the transmitter to mute the audio, press the power button again to restore the
audio. Press and hold the power button for 3
– 4 seconds to turn of the transmitter.
Changing the transmitter frequency
The transmitter frequencies can only be adjusted by the receiver. The frequency is set on the
receiver then sent by Infrared Frequency to the transmitter.

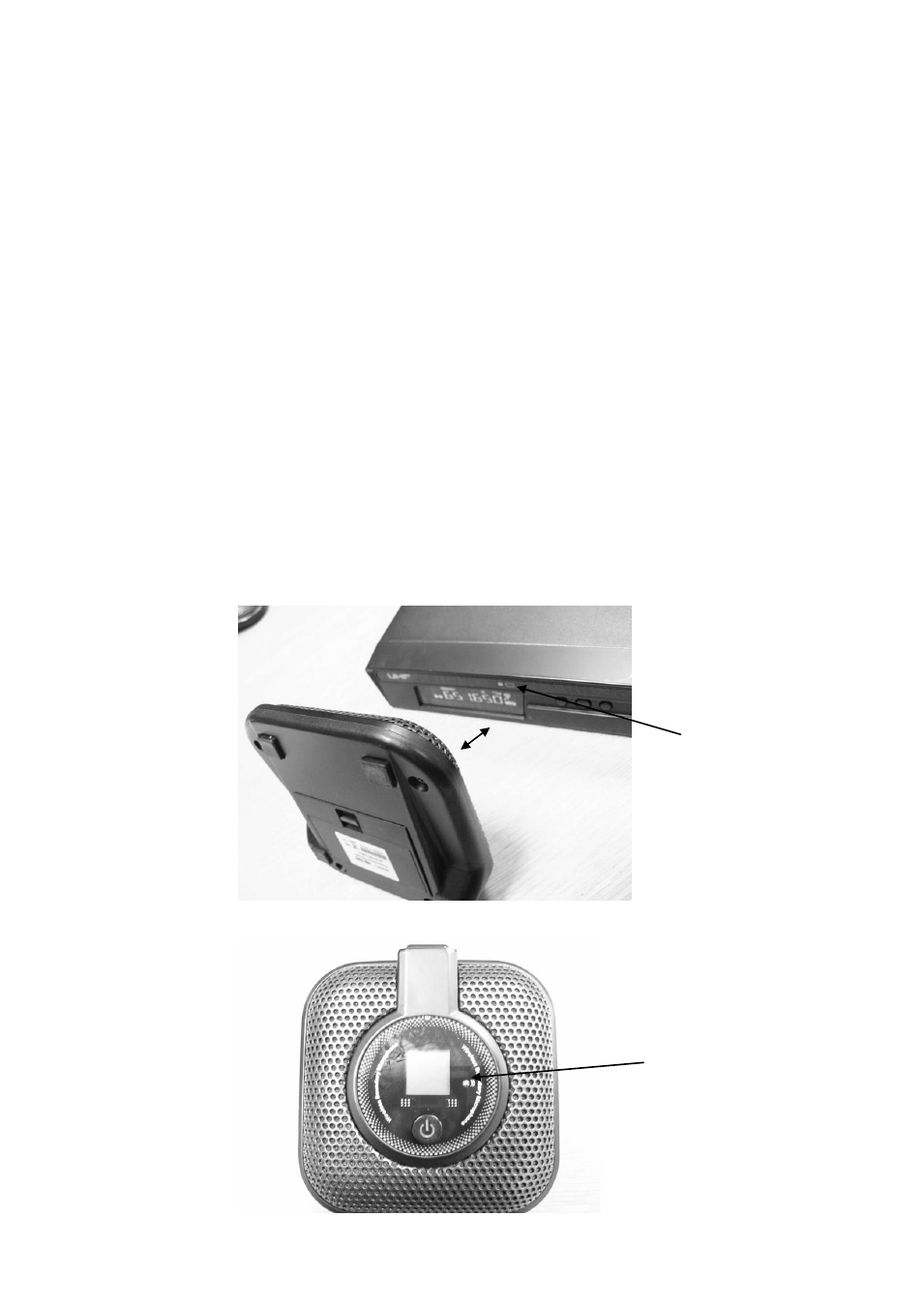

Note: When transferring a new frequency to the transmitter make sure that the transmitter is switched
on and is placed in front of the left side of receiver as shown below.
IR Sensor
IR Sensor
