U LTRA S ERIES ISC C ANTILEVER T RANSDUCER T ECHNICAL M ANUAL MAN-70445-0 R EV AA

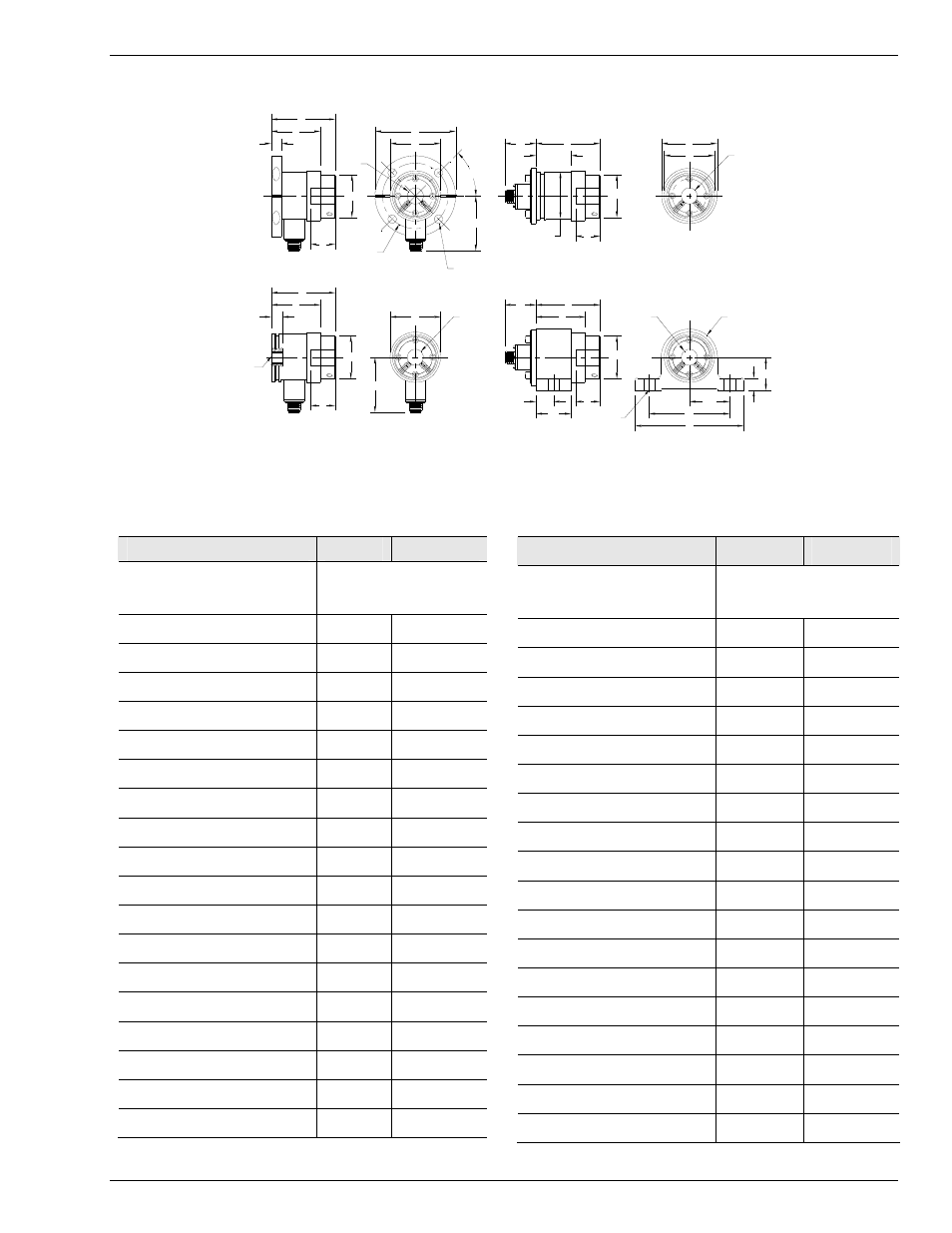

4.2.4M OUNTING D IMENSIONS
J
O
F P
C
M
(BOLT DIA)
N (B.C.D)
E (MAX)
V
R (MAX) C
I
A
B
(MAX)
D
F
H
C A
A
V
F
W
W/2 J
T
U
Q
Q/2
S
A Z
Type CLTEC and CLTECM Cartridge
with BR Mounting Kit
Type CLTSC and CLTSCM Cartridge
J
K K
L
L
K
L
K
J
L
Type CLTEC and CLTECM Cartridge
with PB Mounting Kit
Type CLTSC and CLTSCM Cartridge
with FL Mounting Kit
45 DEG
H
Y
(BOLT DIA)
Mounting dimensions for Inch Hardware: CLTEC and CLTSC Mounting dimensions for Metric Hardware: CLTECM and
CLTSCM
Designator: 1T 2T
A Per Adapter
See Table F
B 0.55 0.60
C 2.50 2.75
D 1/2-13 5/8-11
E 2.375 2.625
F 2.44 2.85
G - -
H 2.76 2.23
I 2.75 3.00
J 1.10 1.30
K 2.13 2.312
L 3.12 3.665
M 3/8 Dia. 1/2
N 3.25 3.50
O 0.50 0.62
P 4.00 4.50
Q 4.00 5.00
R 1.74 1.87
S 5.38 6.12
Designator: 1T 2T
A Per Adapter
See Table G
B 14.0 15.2
C 63.5 69.9
D M12-1.75 M16-2
E 60.33 66.67
F 62.0 72.4
G - -
H 70.1 56.6
I 69.9 76.2
J 27.9 33.0
K 54.0 58.7
L 78.7 93.1
M M-10 M-12
N 82.55 88.90
O 12.7 15.7
P 101.6 114.3
Q 101.6 127.0
R 44.2 47.5
S 136.6 155.4
18
