Jungheinrich TFG_316s-320s - Manual (Page 4)

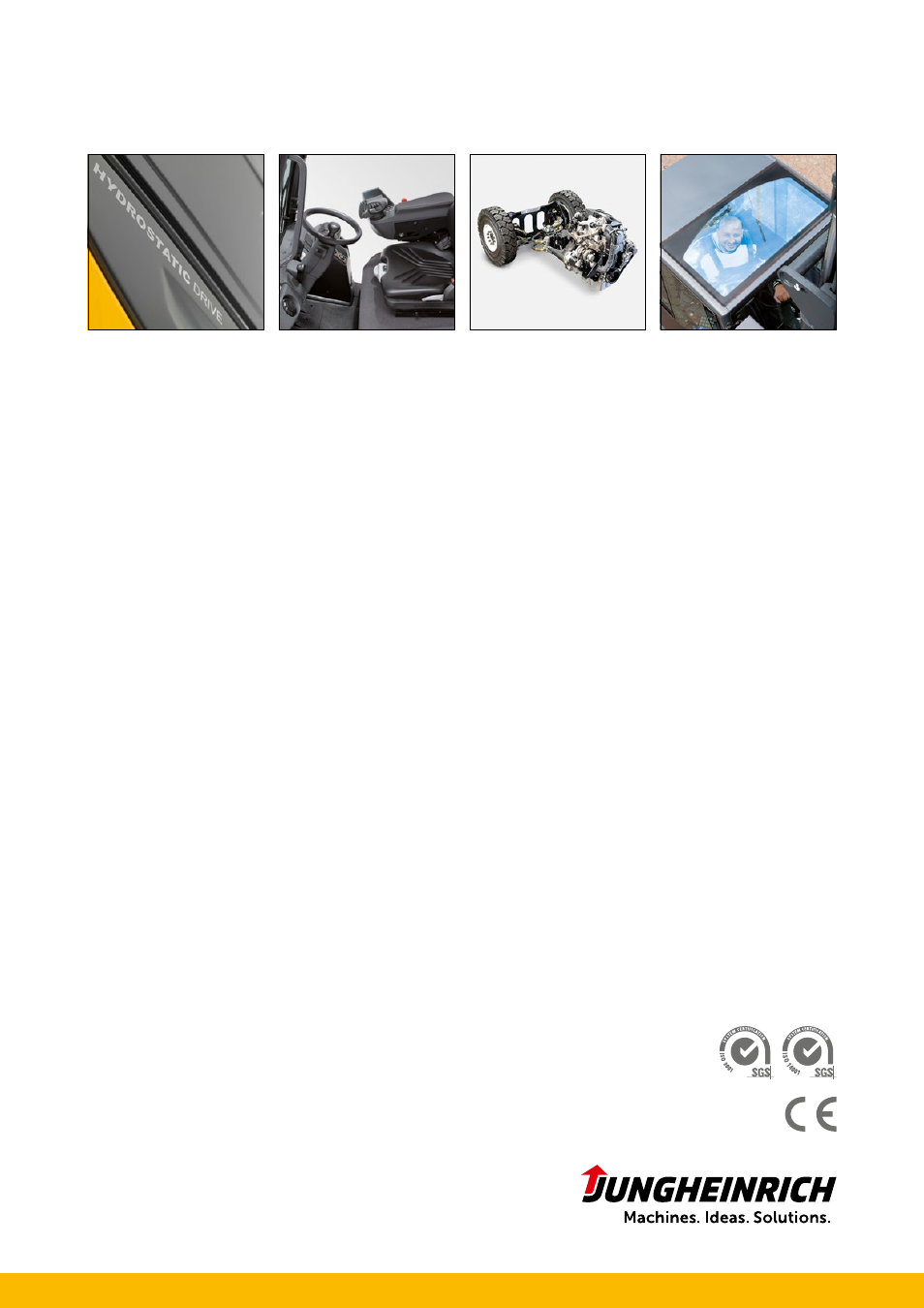

Benefit from the advantages
Maximum throughput Comfort and productivity promot-
ing workplace VW engines with low energy con-
sumption Outstanding all-round visibility
Ergonomic operator workplace
Comfortable and helping maximise pro-
ductivity with exemplary ergonomics:
• Easy and safe access due to a large
step easily visible from above.
• Floating Cab: vibration reduction
due to 4-way suspension of the seat
module.
• Height and rake adjustable, slim steer-
ing column with memory function.
• Easy entry to the cab: the steering col-
umn tilts forward by means of a simple
pull on the memory function lever.
• Excellent all-round visibility thanks to
special roof and panel design as well as
unobstructed roof window made from
laminated safety glass.
• SOLO-PILOT, Comfort Display and
operating console are integrated into
the right armrest and are particularly
easy to operate and read. The armrest
is both vertically and horizontally
adjustable.
• Comfortable working environment in
any weather due to comfort cabs in
various designs (optional).
Assistance systems
The new Hydrostatic already offers an
extensive safety package as standard:
• Deactivation of the hydraulic functions
if seat is unoccupied.
• No uncontrolled roll-back on ramps or
inclines due to the automatic parking
brake, even with the engine switched
off.
• Excellent stability due to extremely
low inherant centre of gravity and high
pivot steer axle.
A range of additional options provide
even more safety for the operator, the
forklift and the load:
• Access Control: The access control
system allows operation of the forklift
only if “seat occupied” and “safety belt
locked” recognition are activated in a
defined sequence.
• Drive Control: Automatic travel
speed reduction when cornering
( Jungheinrich Curve Control). Ad-
ditional travel speed reduction occurs
with lift heights in excess of approx.
1500 mm.
• Lift Control (includes “Drive Control”):
Automatic mast tilt speed reduction
occurs with lift heights in excess of ap-
prox. 1500 mm. Tilt angle is displayed
via an individual display unit.
Handling efficiency and drive char-
acteristics
Key advantages of hydrostatic drive:
• Electronic control for precise adjust-
ment of drive and hydraulic functions.
• Optimum handling performance par-
ticularly in shuttle operation.
• Stepless power transmission and high
starting torques.
• 5 electronically selectable operating
modes ensure optimum performance
parameters for every application.
• Automatic engine speed increase dur-
ing lifting and lowering.
• Very precise control of travel speed.
• Optional double pedal operation.
• Low maintenance costs due to direct
drive without wearing parts, such as
clutch, differential and gears.
Intelligent electronics
• Splash-proof electronic controllers (IP
64) connected to the CAN-Bus system
for drive and hydraulic functions.
• 74 Ah 12 V battery/90 A 3-phase AC
generator (140 A optional).
• Electronically controlled motors
• TFG with maintenance-free electronic
ignition system
• Sensitive adjustment of hydraulic func-
tions via electromagnetic controlled
valves.
Brakes
The hydrostatic drive allows completely
wearfree braking:
• Frequent brake pedal operation is no
longer necessary.
• Parking brake; sprung-loaded lami-
nated oil immersed parking brake as a
maintenance-free, enclosed system.
• Safety on ramps: The parking brake is
activated automatically when the truck
stands still or the engine is switched
off.
Hydraulics
The high performance filter system
ensures cleaner hydraulic oil and a long
service life for all components:
• Combined suction and return flow filter
system for optimum cold running.
• Hydraulic tank integrated in chassis.
• Ventilation of hydraulic tank via the
filter.
• Pressure relief valves protect against
excess pressure and overloading.
Mast
All mast components are designed for
optimum visibility, maximum stability and
a long service life:
• Slender mast profiles with lift cylinders
behind for maximum visibility.
• Damping on mast and tilt cylinders for
increased handling safety.
