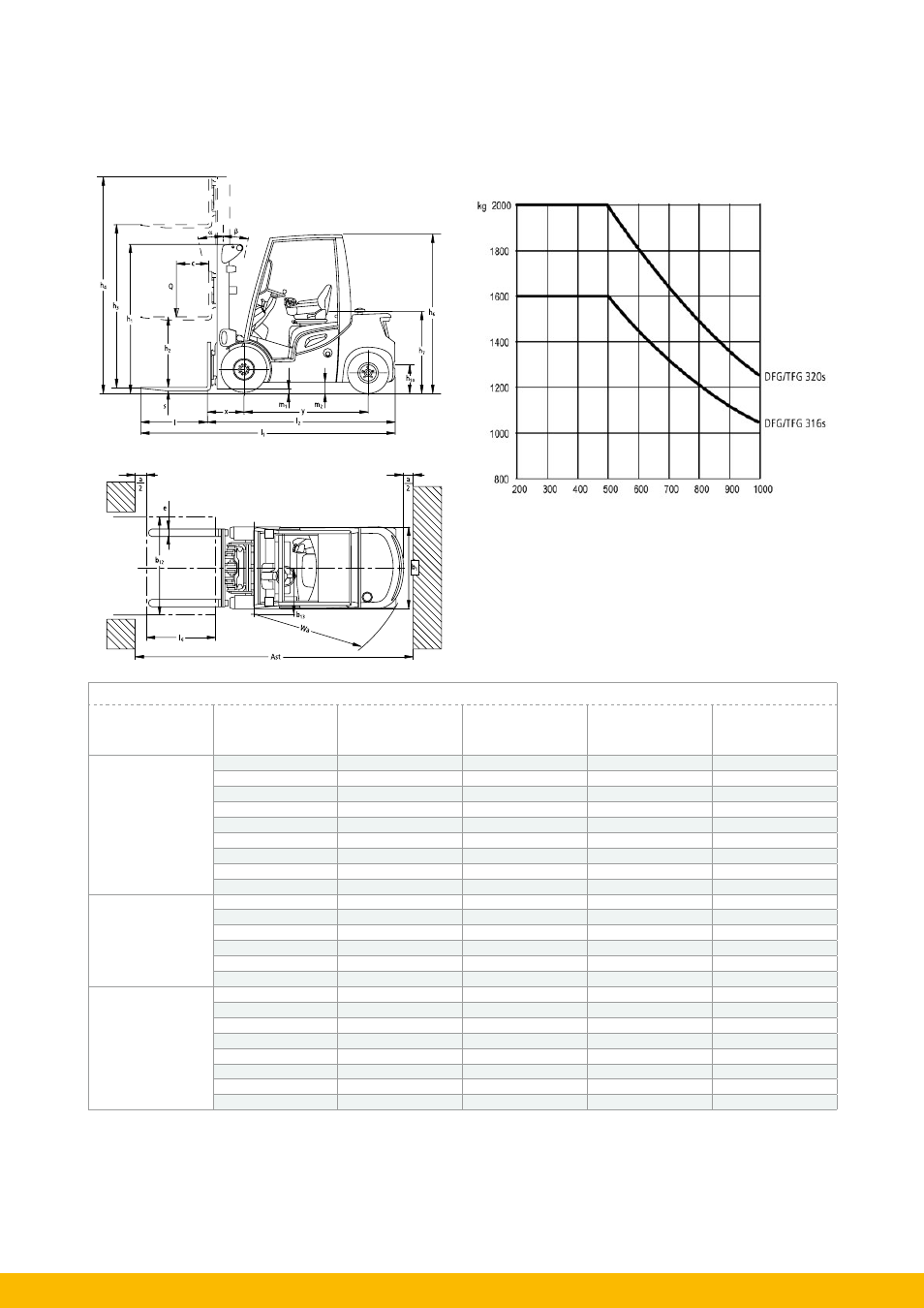

DFG/TFG 316s/320s
Capacity
Load centre distance “c” in mm
Standard mast types DFG 316s/DFG 320s/TFG 316s/TFG 320s
Lift
h
3
Lowered mast height
h
1
Free lift
h
2
Extended mast height
h
4
Mast tilt forward / back
α/ β
(mm) (mm) (mm) (mm) (°)
Duplex ZT 2900 1985 150 3520 7/7
3100 2085 150 3720 7/7
3300 2185 150 3920 7/5
3600 2335 150 4220 7/6
3800 2435 150 4420 7/6
4000 2535 150 4620 7/6
4500 2835 150 5120 7/6
5000 3085 150 5620 7/5
5500 3435 150 6120 7/5
Duplex ZZ 2900 1940 1290 3550 7/7
3100 2040 1390 3750 7/7
3300 2140 1490 3950 7/7
3600 2290 1640 4250 7/6
3800 2390 1740 4450 7/6
4000 2490 1840 4650 7/6
Triplex DZ 4200 1940 1290 4850 7/5
4350 1990 1340 5000 7/5
4500 2040 1390 5150 7/5
4800 2140 1490 5450 7/5
5000 2215 1565 5650 7/5
5500 2390 1740 6150 7/5
6000 2590 1940 6650 7/5
6500 2840 2190 7150 7/5
