8

Chapter 1

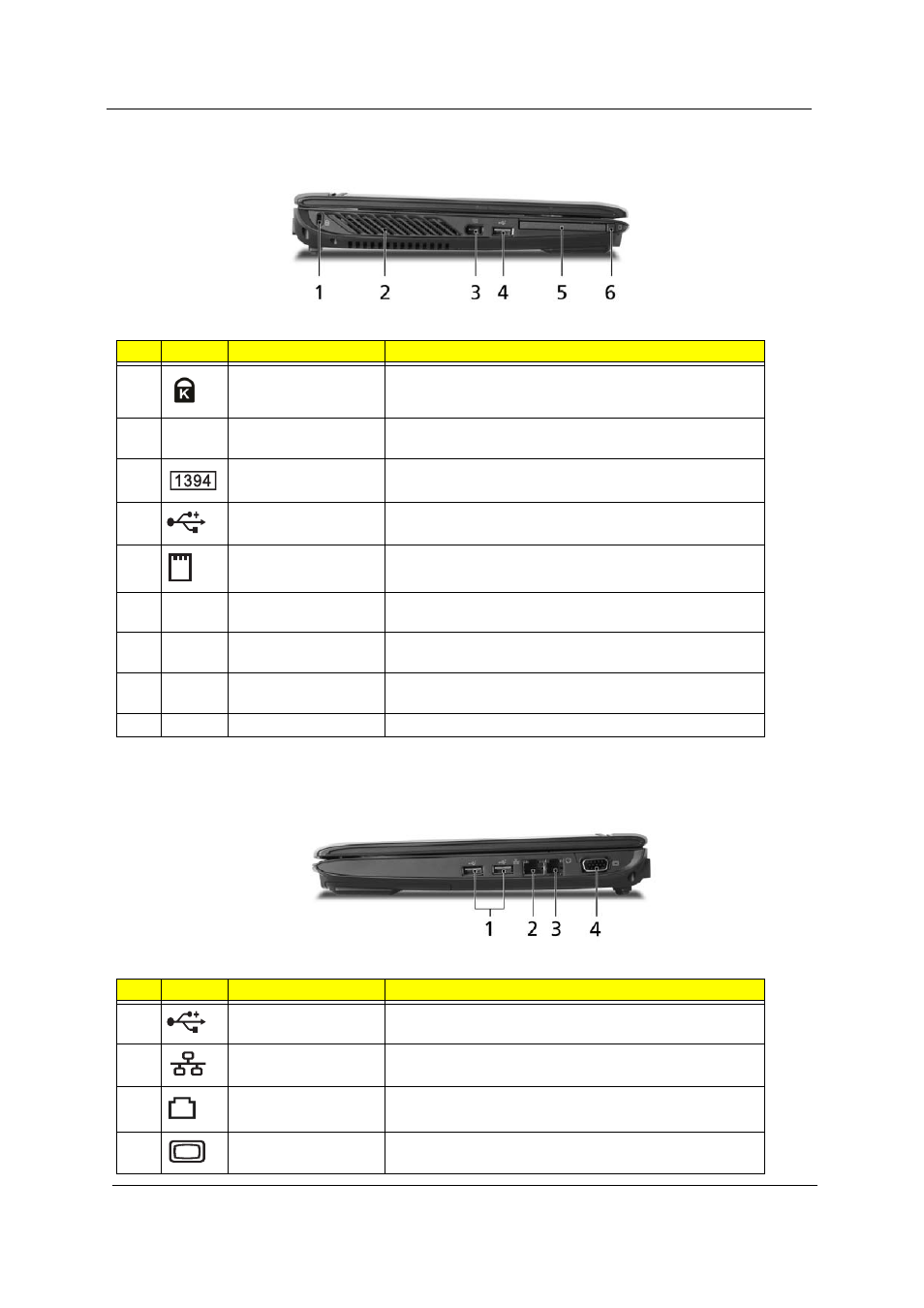

Left View

Right View

#

Icon

Item

Description

1

Kensington lock slot

Connects to a Kensington-compatible computers security
lock.

2

N/A

Ventilation slots

Enable the computer to stay cool, even after prolonged
use.

3

6-pin IEEE 1394 port

Connects to IEEE 1394 devices.

4

USB 2.0 ports

Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).

5

PC Card slot

Accepts one Type II PC Card.

6

N/A

PC Card slot eject
button

Ejects the PC Card from the slot.

4

N/A

Optical disk access
indicator

Lights up when the optical drive is active.

5

N/A

Slot-load optical drive
eject button

Ejects the optical disk from the drive.

6

N/A

Slot-load optical drive

Internal optical drive; accepts CDs or DVDs.

#

Icon

Item

Description

1

USB 2.0 ports

Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).

2

Ethernet (RJ-45) port

Connects to an Ethernet 10/100-based or 10/100/1000-
based networks.

3

Modem (RJ-11) port

Connects to a phone line.

4

External display (VGA)
port

Connects to an external display device (e.g., external
monitor, LCD projector).
