Page 19
19
Installation

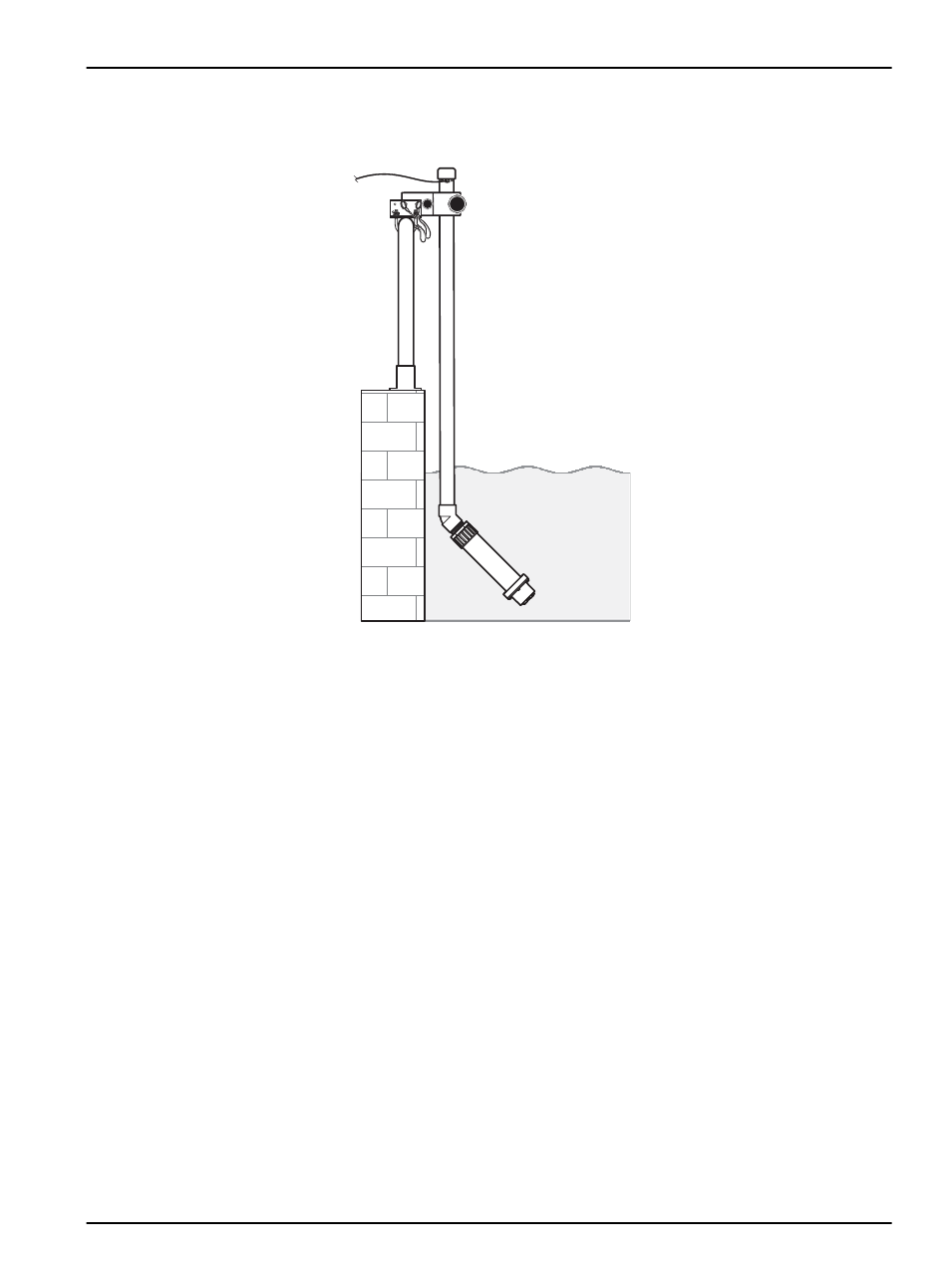

3.5.2 Example of mounting the probe
Figure 12
Example of mounting the probe using a rail mount
3.6 Connect the probe to the sc controller (non-hazardous location) with
screw fittings
The probe cable is supplied with a screw fitting with reverse polarity protection (refer to
). Retain the connector cap to seal the connector opening in case the
probe ever needs to be removed. Additional extension cables are available to increase the
probe cable length.
1.
Unscrew the protective cap from the socket on the controller.
2.
Insert the connector into the socket and hand-tighten the union nut.
Note: The middle connection on the sc1000 controller must not be used for probes as this is
reserved for the display module.
