31

Section 4

Interface and navigation

The si792 transmitter user interface contains a display, indicators and
keys for navigation and menu selection.

4.1 si792(x) P (4–20 mA/HART) interface

Use the arrow and enter keys to scroll through the menu and change
settings. Use the indicators to identify which mode the transmitter is in.
Refer to

Figure 9

to identify the keys and indicators of the si792(x) P.

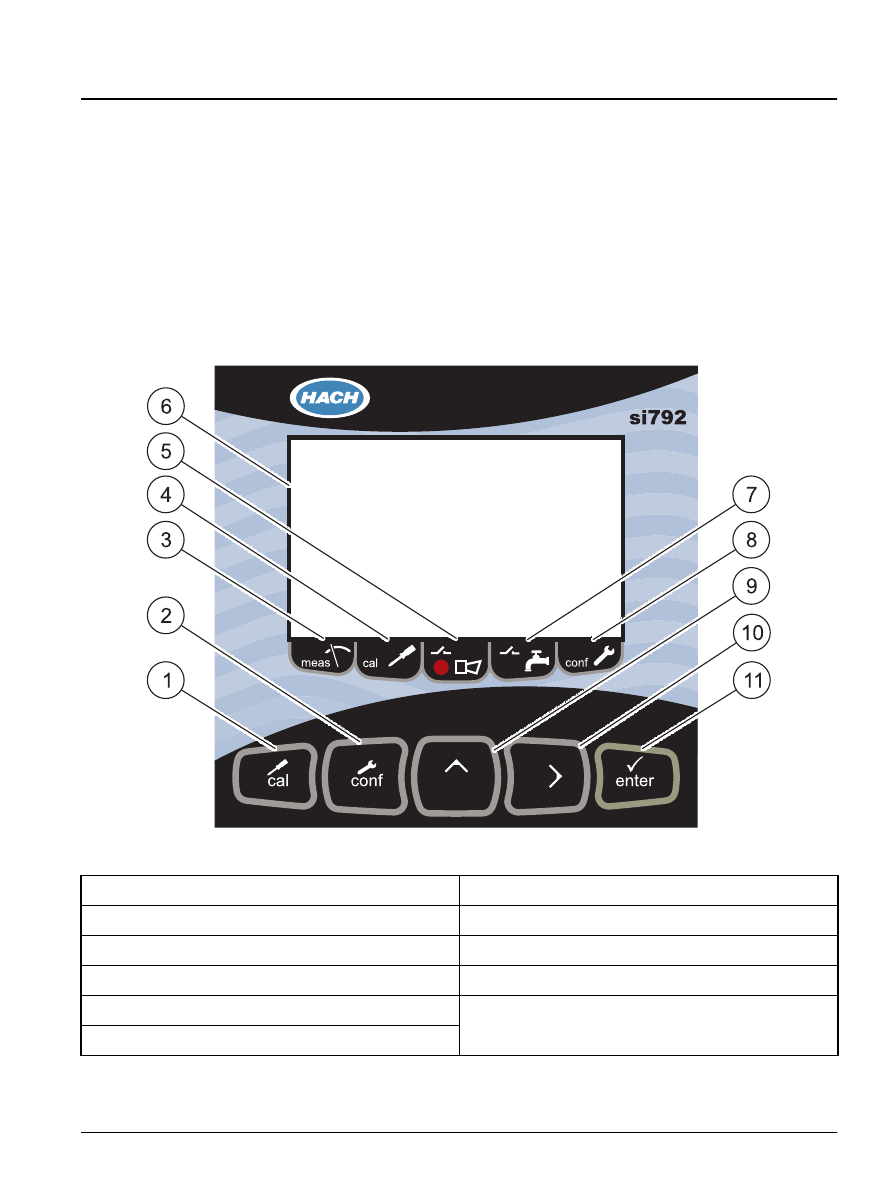

Figure 9 User interface—si792(x) P

1 Calibration key

7 Wash mode indicator (not available)

2 Configure key

8 Configuration mode indicator

3 Measure mode indicator

9 Up arrow key

4 Calibration mode indicator

10 Right arrow key

5 Alarm indicator

11 Enter key

6 Display
