FIM-202D Matrix Fiber Interface Instruction Manual 1 - 1
OPERATION
DESCRIPTION
With a Clear-Com FIM-202D System, you can connect Clear-Com
intercom panels or interfaces to the central matrix using fiber-optic
cables at distances of up to 12 miles (20 km).
The system consists of one FIM-202D at the matrix-frame end and
another FIM-202D unit at the matrix-panel end. Connecting the pair of
interfaces with fiber rather than with the standard 4-wire twisted pair
copper, gives you advantages such as increased security from
electromagnetic and RF interference, flexibility in equipment
placement, ease of maintenance, and often, reduced cost.

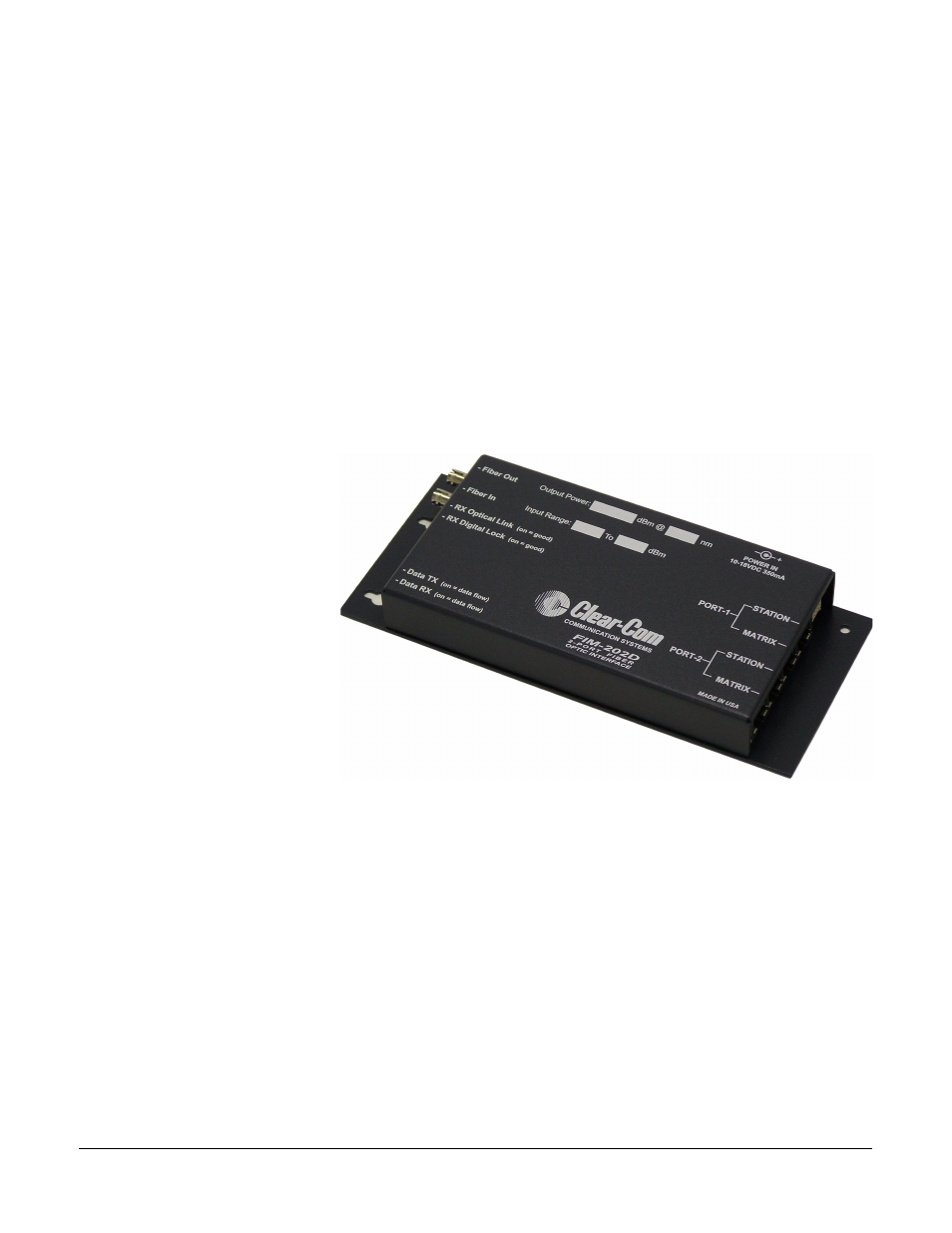

Figure 1-1: FIM-202D Unit
CONNECTING INTERCOM PANELS TO THE CEN-
TRAL MATRIX
The Clear-Com FIM-202D system transmits audio and data signals
from 1 or 2 intercom panels or interfaces using easily available
standard Ethernet cable to the matrix frame through the process
illustrated in Figure 1-2. The illustration shows both directions of the
signal flow as the system transmits in full-duplex mode.
