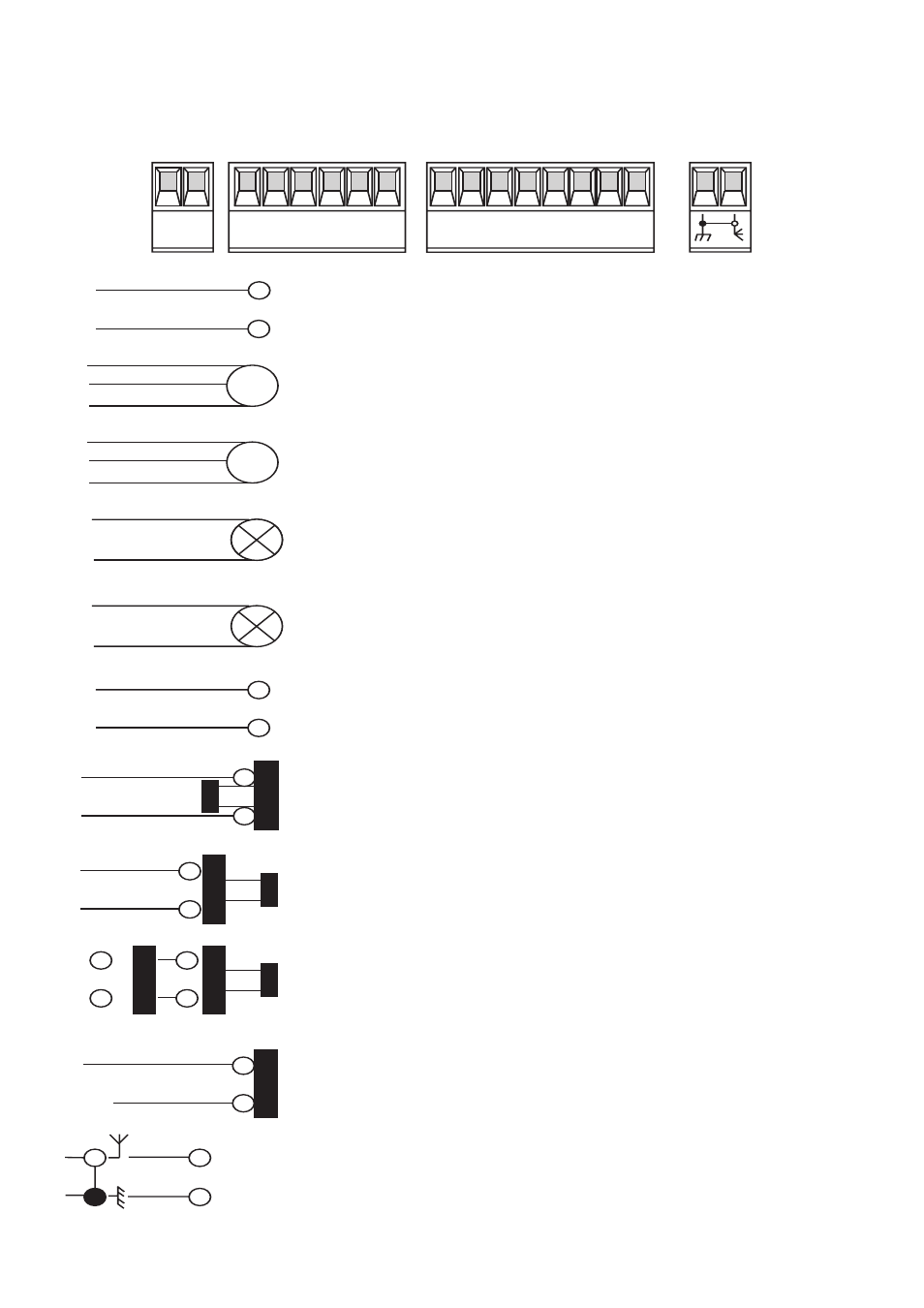

5.6 - Electrical Connections
24V (A.C) Output power supply to accessories (max 20W)
Contact (N.C) for re-opening during closing
Antenna connection
Power supply for control panel
Connection for motor one (delay in opening)
Connection for motor two (delay on closing)
230V (A.C) 25W max output in motion (e.g. flashing light)
“Gate Open” signal light (24V 3W max)
Stop button (N.C)
Open only button (N.O)
Contact for radio and or pushbutton control for open-close
(N.O)
