30
ZA4
5.5 - Control Panel Adjustments

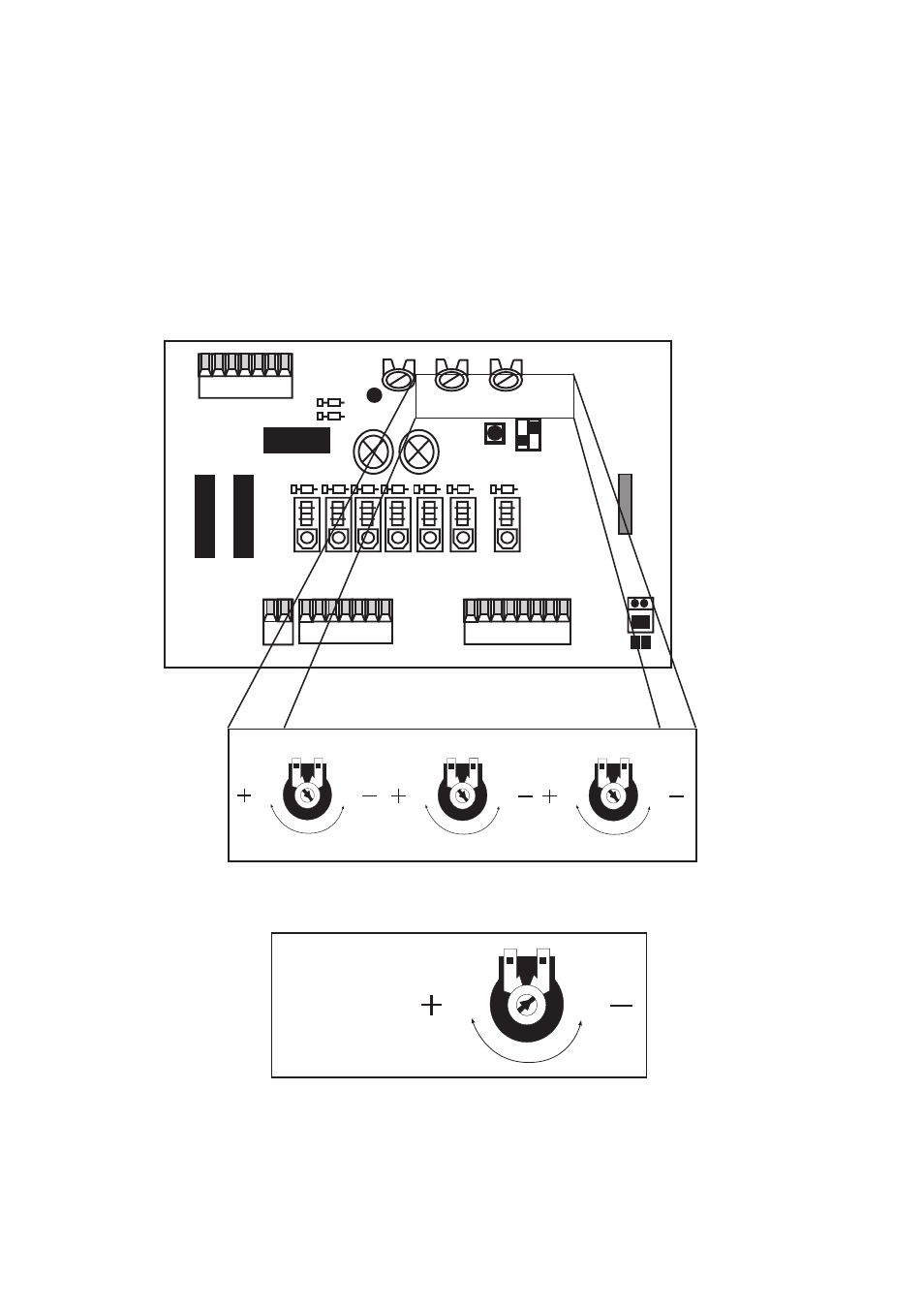

Fig 25
Trimmer T.L. - Adjustment of operating time from a minimum of 0 seconds to a
maximum of 120 seconds N.B. it is advised to let the motors run on for between 6 and 8
seconds after the last gate has fully close.
Trimmer T.C.A - Adjustment of automatic closing time from a minimum of 1 to a
maximum of 120 seconds.
Trimmer T.R.2.M - Partial opening time adjustment and delay in closing of the second
motor leaf delay from a minimum of 0 seconds to a maximum of 20 seconds.
T.L T.C.A T.R.2.M
TRIMMERS
ADJUSTMENT
