- Set the lever of the release group to the gearmotor.

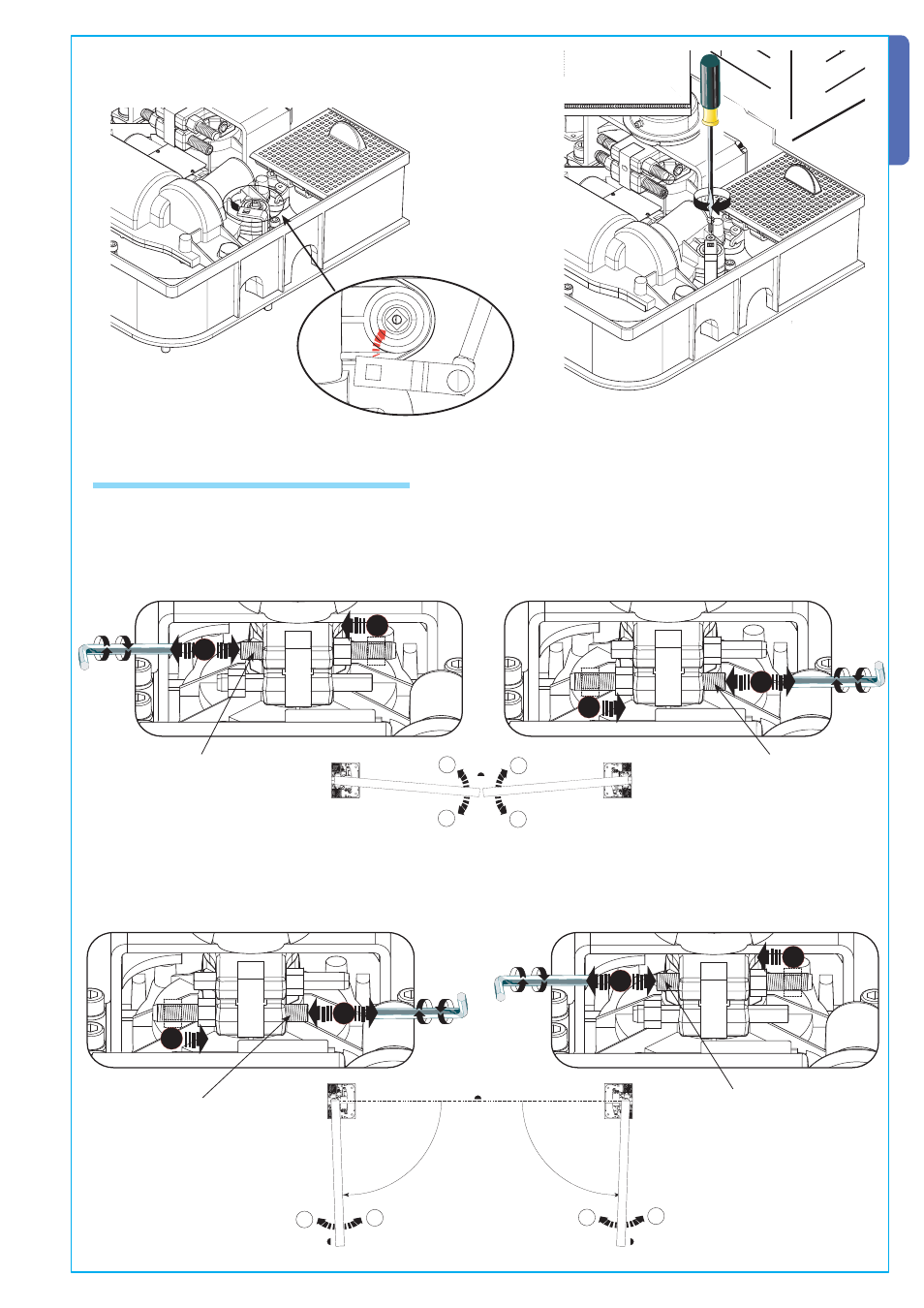

5.7 Adjusting the mechanical endstops
Closing set screw for left
gearmotor
Procedure for adjusting the opening: follow the same steps used in adjusting the closing.
- Before tightening the set screws to adjust the opening and closing of the gate, release the gearmotors (see paragraph for
manual releasing).
Procedure for adjusting the closing: turn the M10x90 (1) set screw clockwise or counter clockwise; lock the nut so that it is
opposite the thread (2).
SX DX
SX DX
Closing set screw for right
gearmotor
Opening set screw for right
gearmotor
Opening set screw for left
gearmotor
