6 Connecting to the control panel
" " % 0 #8 #9 43 , . - . %.# - . %.#
When making electrical connections, use the pit the shunt boxes. For further instructions
concerning functions and adjustments, consult the control panels technical documentation.

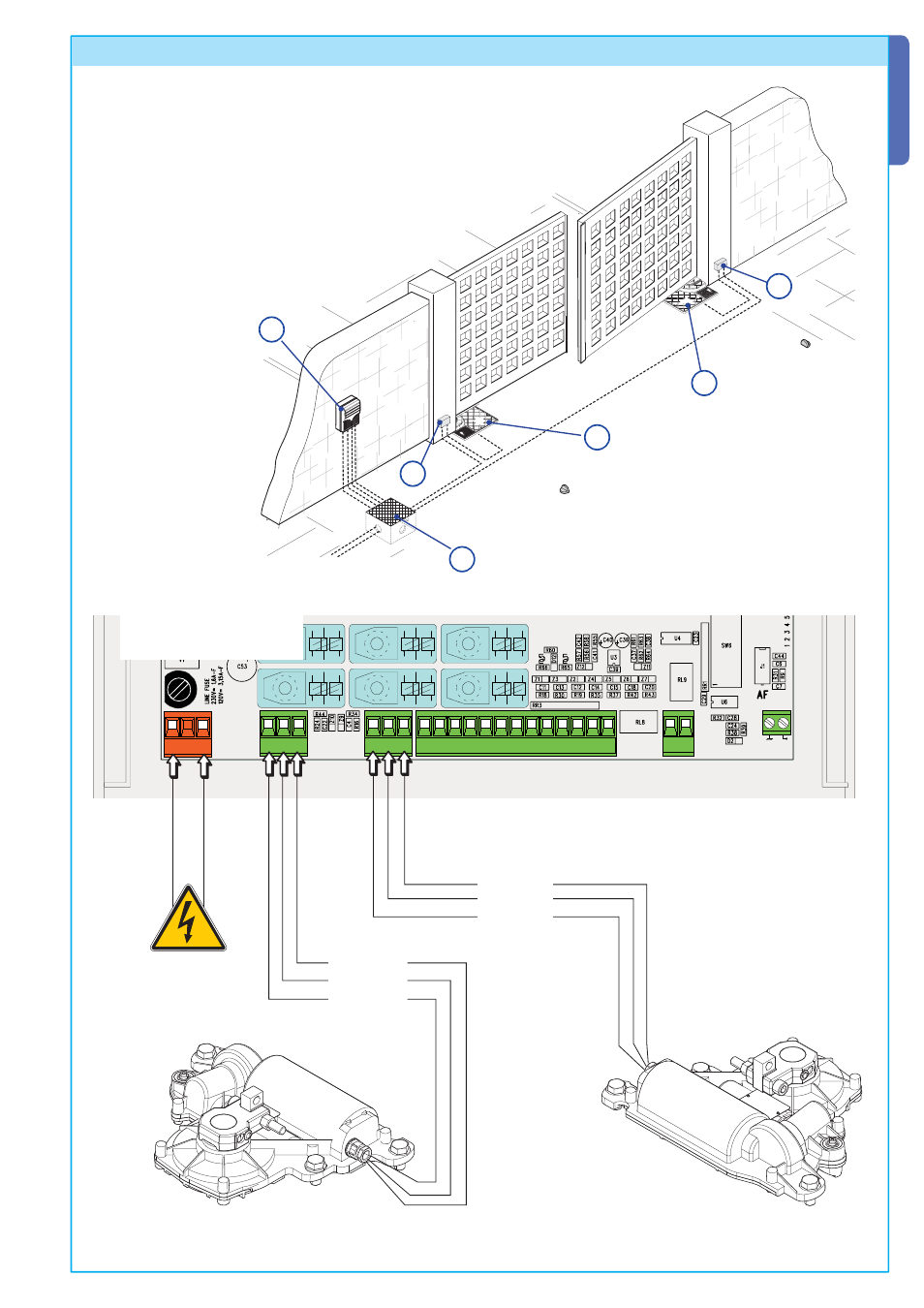

Connecting the 24V d.c. delayed opening
gearmotor
1
1) Control panel
2) Left gearmotor
3) Right gearmotor
4) Shunt box
5) Junction pit
ZL90 Control panel
Connecting the 24V d.c. delayed closing
gearmotor
5
2
3
4
4
230V a.c.
power supply
BLUE
BROWN
BLACK
BLUE
BLACK
BROWN
