ENGLISH

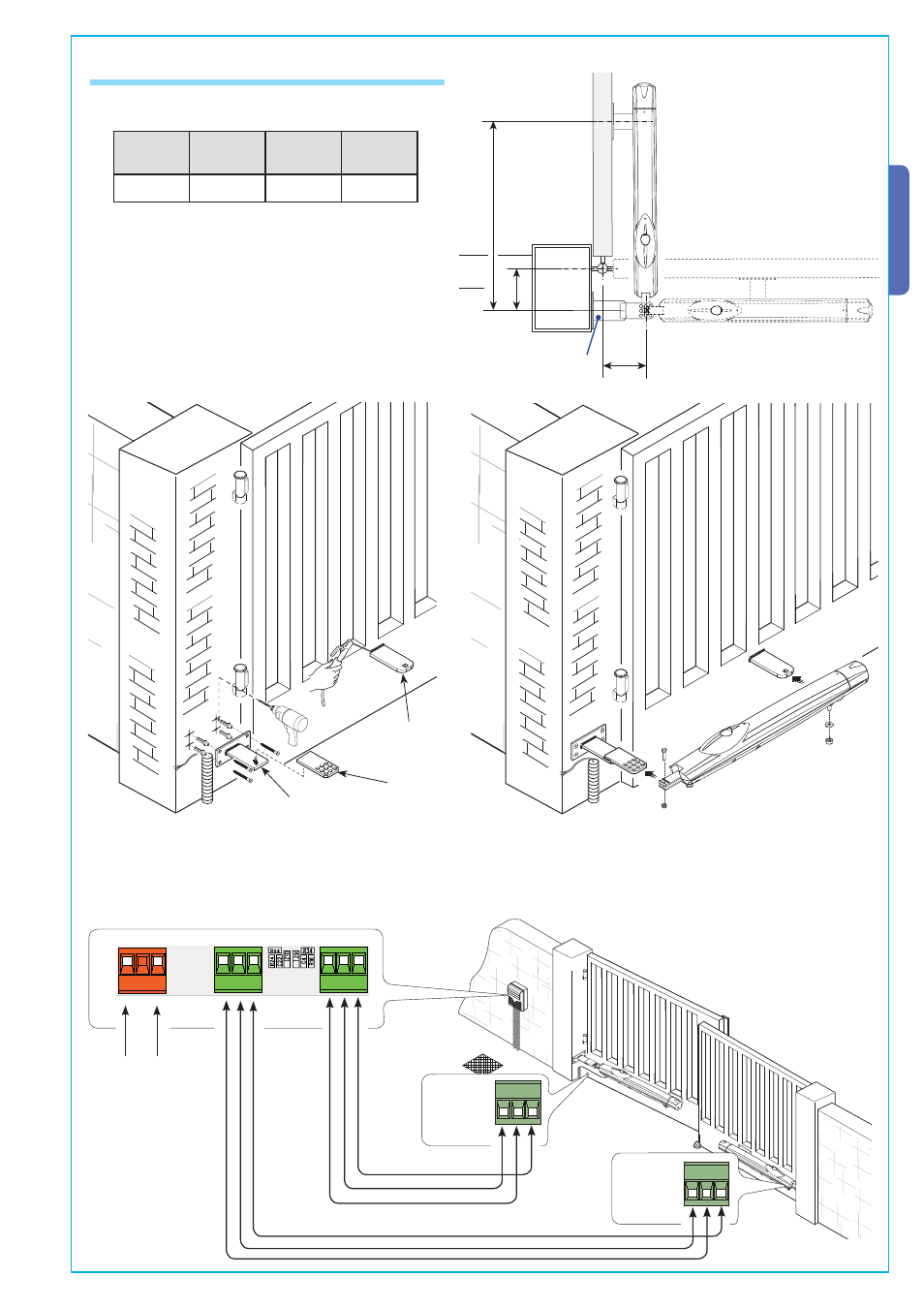

5.8 Outward opening installation
%
!
"
Opening
A
(mm)
B
(mm)
E
(mm)
90° 130 130 720
Weld the extra bracket to that of the pillar, secure the extra
bracket to the pillar making sure the A and B quotas are
met as shown in the table.
Open the gate to a 90° arc, weld or secure using proper
screws the gate bracket making sure the E quota is met.
Secure the gearmotor to the brackets.
Connect the gearmotors to the panel as shown in the diagram.
Pillar bracket
Extra bracket
Gate bracket
, . - . %.# - . %.#
Power
230V a.c.
50/60 Hz
- . %.#
- . %.#
Extra bracket
Delayed
closing
action
Delayed
opening
action
