ENGLISH
Attachment pin
Washer

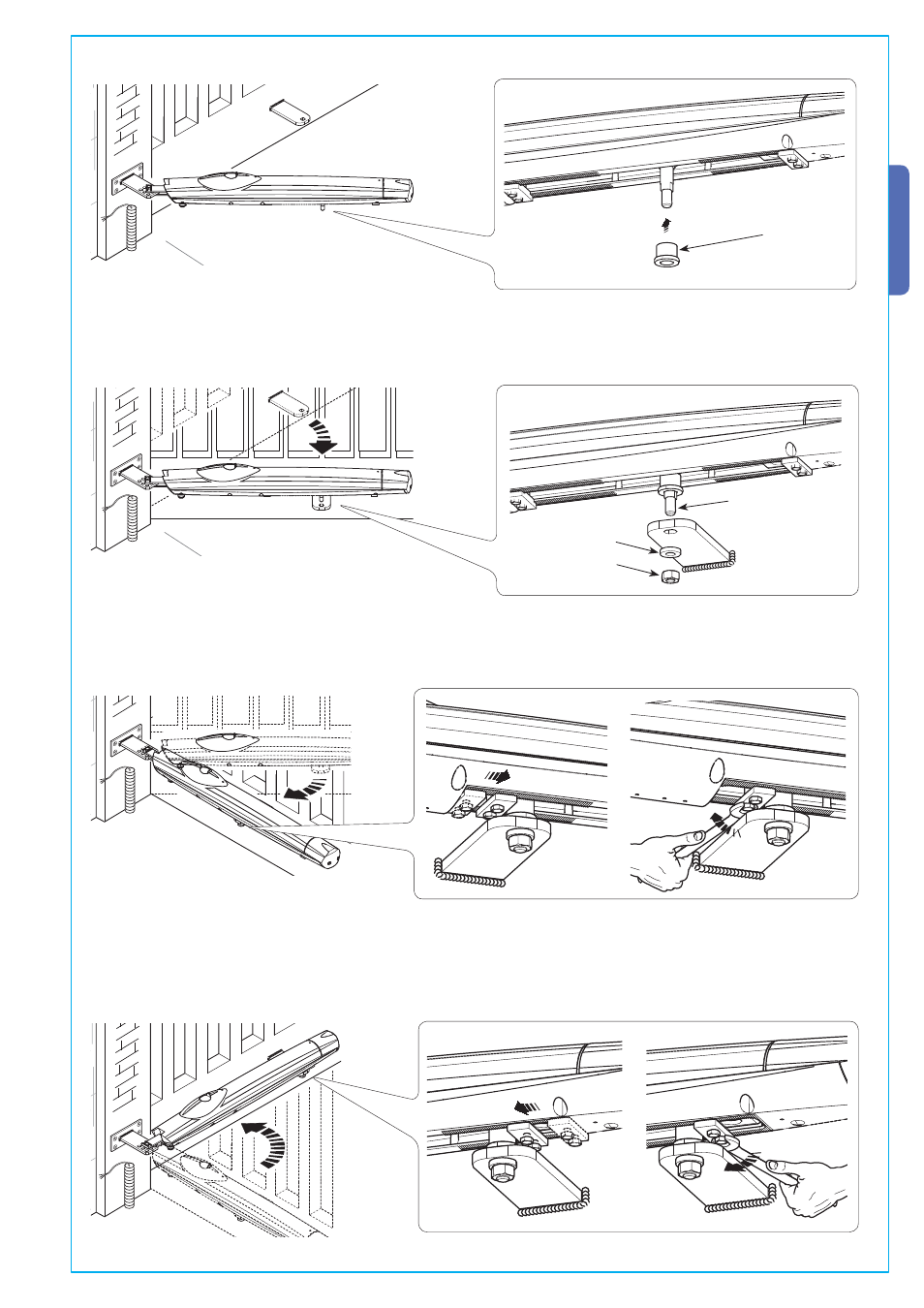

Release the gearmotor (see paragraph on manual release), completely open the gate leaf, loosen the nuts of the opening
mechanical stop and position it up against the attachment pin, then secure it.
Open the gate leaf and insert the pin into the gate bracket.
Close the gate leaf, loosen the nuts on the closing mechanical stop, place it up against the attachment pin, then secure it.
Nut M12
Bushing
Insert the bushing into the head attachment pin.
