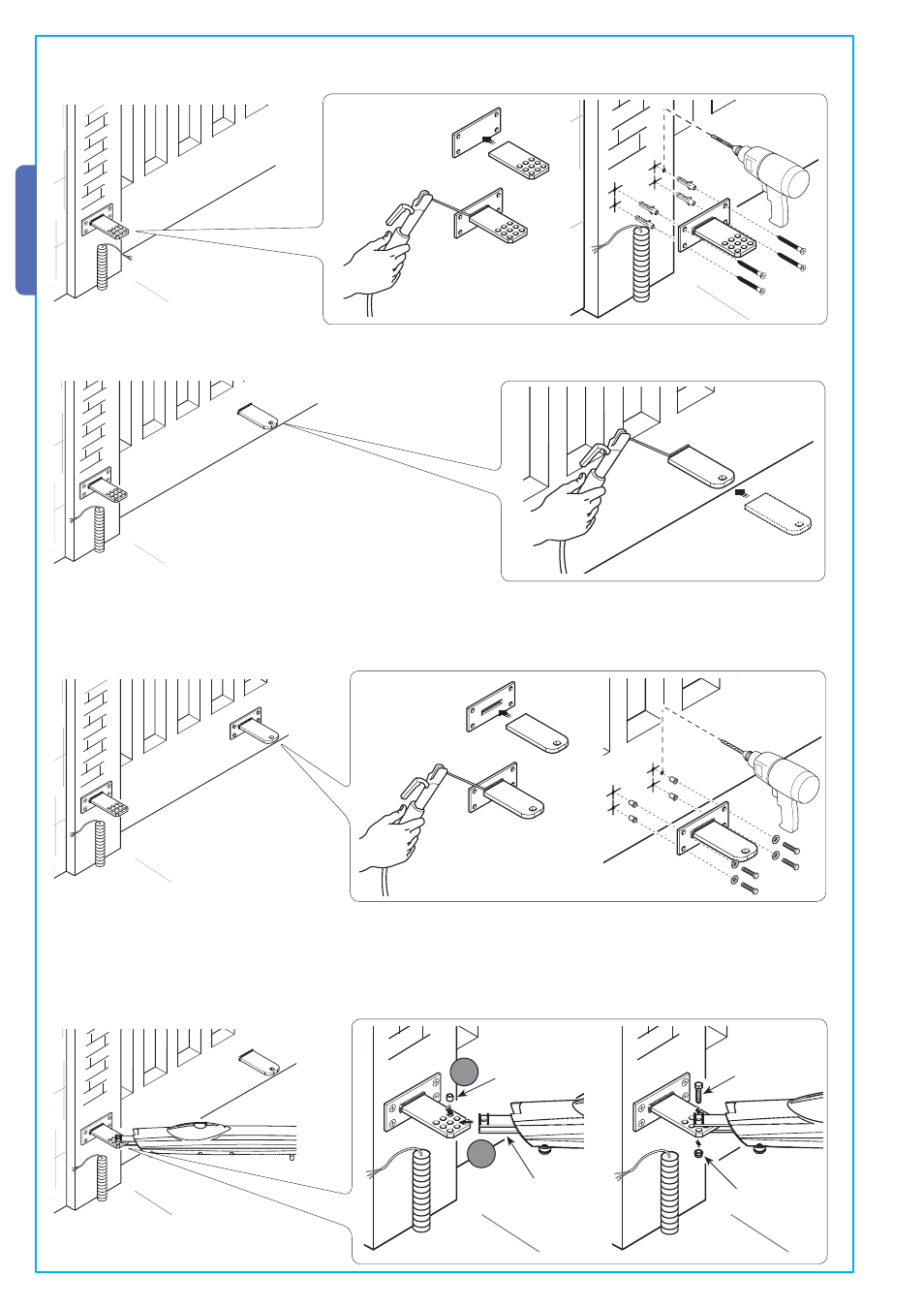

Assemble and weld the two parts of the pillar bracket. Secure the bracket to the point you have chosen with proper plugs and
screws or – if the pillar is made of metal – weld it on.
Weld the gate bracket to the gate leaf making sure the quotas shown in the table are met.
Note: on non-metal gate leaves assemble and weld the two parts of the bracket and secure them with proper screws. Secure the
Tail joint
Screw M8 x 35
Insert the bushing (lubricated) into the pillar bracket’s hole. The bracket has holes that allow the opening angle to be changed.
Secure the tail joint to the bracket.
Bushing
Nut UNI 7474 M8
