4
ENGLISH

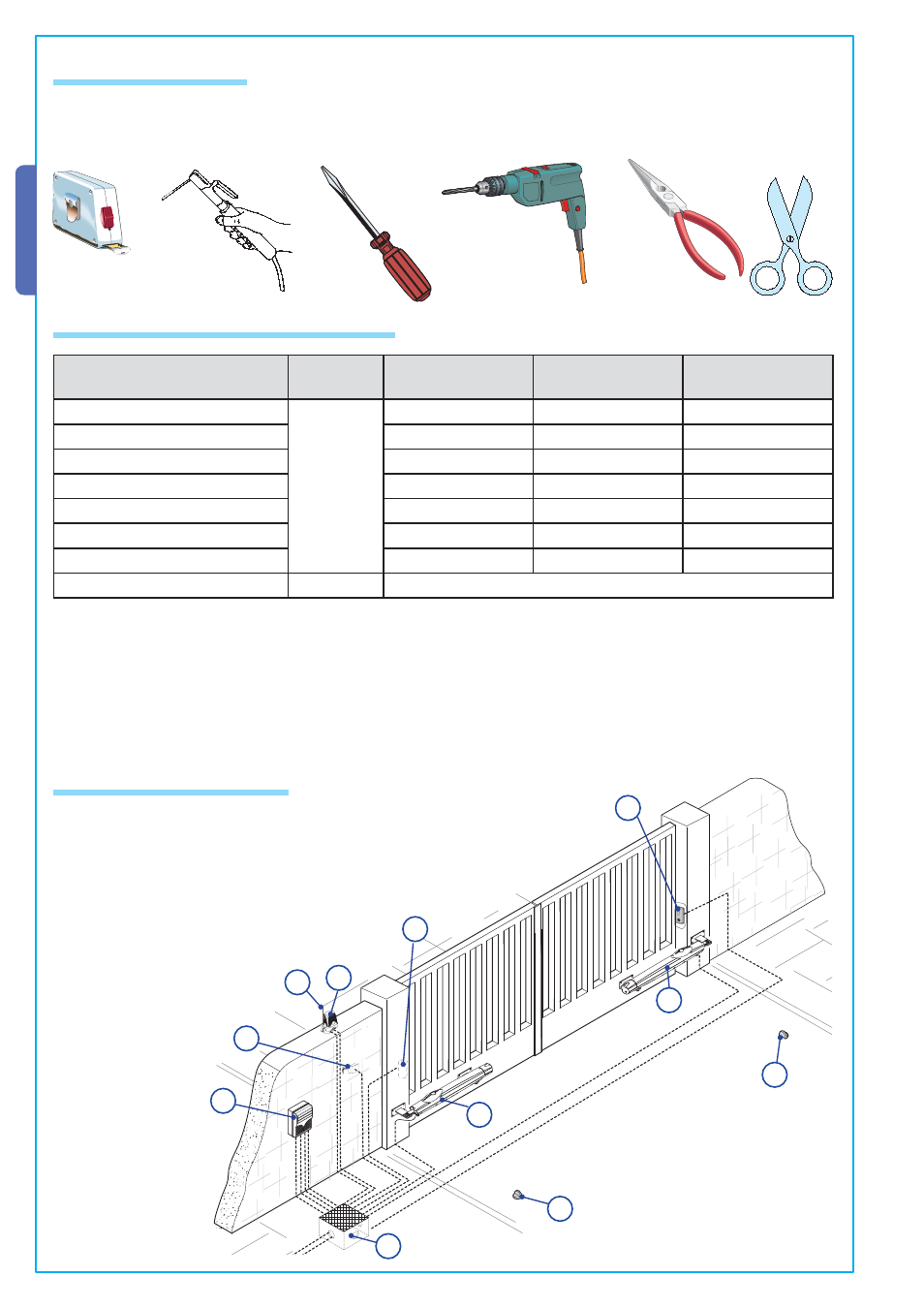

Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and
compliance with the current standards and regulations. The following figure illustrates the minimum equipment needed by
the installer.
N.B.: If the cable length differs from that specified in the table, then you must determine the proper cable diameter in the
basis of the actual power draw by the connected devices and depending on the standards specified in CEI EN 60204-1.
For connections that require several, sequential loads, the sizes given on the table must be re-evaluated based on actual
power draw and distances.
When connecting products that are not specified in this manual, please follow the documentation provided with said
products.
5.3 Cable list and minimum thickness
Connections
Type of
cable
Length of cable
1 < 10 m
Length of cable
10 < 20 m
Length of cable
20 < 30 m
Control panel power supply 230V
FROR CEI
20-22
CEI EN
50267-2-1
3G x 1,5 mm 2 3G x 2,5 mm 2 3G x 4 mm 2
Motor power supply 24V 3 x 1 mm 2 3 x 1,5 mm 2 3 x 2,5 mm 2
Flashing light 2 x 0,5 mm 2 2 x 1 mm 2 2 x 1,5 mm 2
Photocell transmitters 2 x 0,5 mm 2 2 x 0.5 mm 2 2 x 0,5 mm 2
Photocell receivers 4 x 0,5 mm 2 4 x 0,5 mm 2 4 x 0,5 mm 2
Accessories power supply 2 x 0,5 mm 2 2 x 0,5 mm 2 2 x 1 mm 2
Control and safety devices 2 x 0,5 mm 2 2 x 0,5 mm 2 2 x 0,5 mm 2
Antenna RG58 max. 10 m
5.2 Tools and materials
1) A1824 operator
2) Control panel
3) Reception antenna
4) Flashing light
5) Selector switch
6) Photocells
7) Electric cable junction box
8) Mechanical gate stops
5.4 Standard installation
3
2
8
1
1
4
5
6
6
7
8
